Product Description

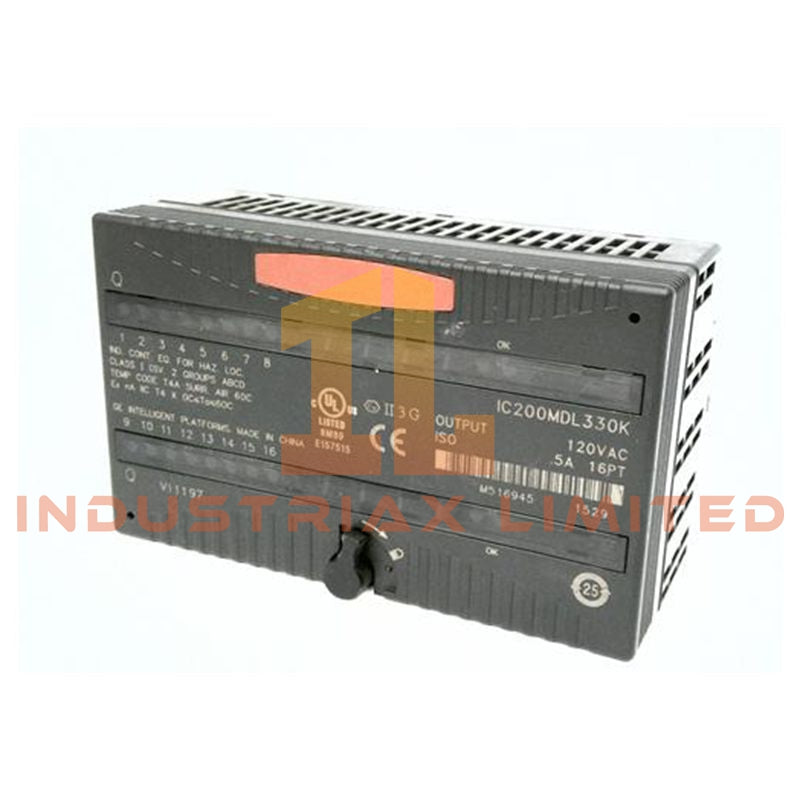

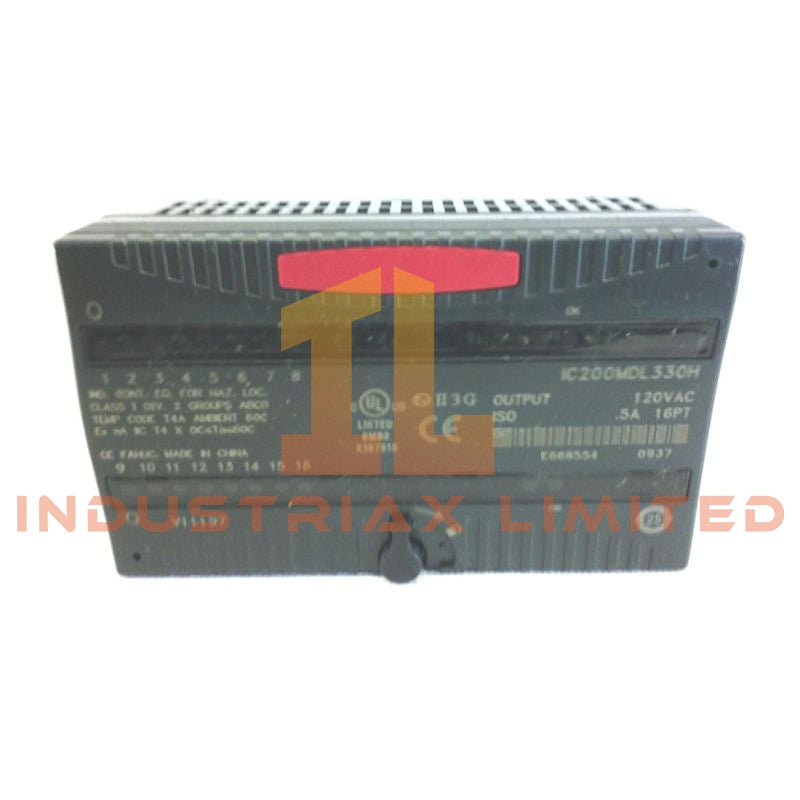

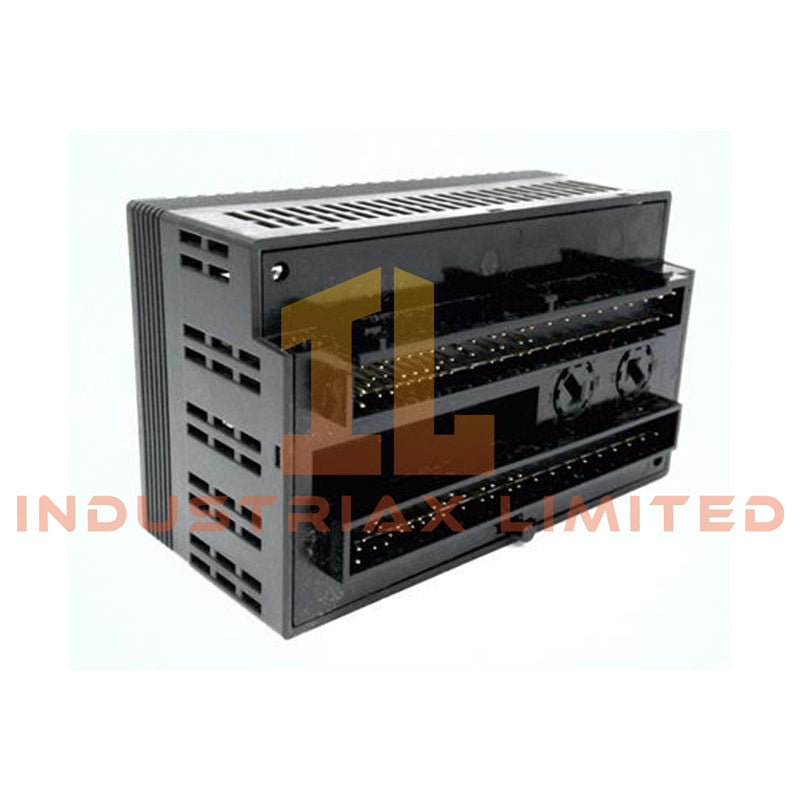

The IC200MDL330 from GE’s VersaMax I/O family is a high-reliability AC discrete output module engineered for industrial control systems requiring isolated switching and dependable field interfacing. Designed to handle 120 VAC loads, this module provides 16 independently isolated output channels, enabling safe and efficient control of actuators, relays, contactors, and signaling devices.

Each output is electrically isolated and incorporates integrated suppression components to enhance durability in inductive load environments. The module operates with an external AC supply for load switching, while drawing minimal current from the PLC backplane. Status diagnostics are simplified through dedicated LED indicators per channel and a module health indicator.

Key Features

• 16 individually isolated AC output channels

• Compatible with 120 VAC control circuits

• Integrated MOV and snubber protection for transient suppression

• Fast switching response within half AC cycle

• Low backplane power consumption

• LED diagnostics for each output and module status

• Suitable for hazardous locations (Class I, Division 2)

Technical Specifications

Electrical Parameters

• Output Channels: 16 (isolated)

• Rated Voltage: 85–132 VAC (nominal 120 VAC, 47–63 Hz)

• Output Current:

• Maximum: 0.5 A per channel

• Minimum load: 10 mA

• Inrush Current: up to 5 A (20 ms)

• Voltage Drop: ≤ 2.0 V (typical under load)

• Leakage Current: < 2 mA at 132 VAC

• Switching Time: < ½ AC cycle

Isolation Ratings

• User to Logic / Ground: 250 VAC continuous, 1500 VAC (1 min)

• Channel-to-Channel: 250 VAC continuous, 1500 VAC (1 min)

• Group Isolation: 250 VAC continuous, 1500 VAC (1 min)

Power Requirements

• Backplane Consumption: 140 mA at 5 VDC

• External Load Supply: 85–132 VAC required

Diagnostics & Indicators

• 16 × Green LEDs (logic-side indication per output)

• 1 × Green OK LED (module power status)

Mechanical & Environmental

• Dimensions: 110 × 66.8 × 50 mm

• Weight: 0.35 kg

• Operating Temperature: 0 °C to +60 °C

• Mounting: VersaMax carrier, DIN rail compatible

• Compliance: Class I, Division 2 hazardous locations

Applications

The IC200MDL330 module is commonly deployed in:

• Motor starter and contactor control systems

• Industrial HVAC and building automation

• Conveyor and material handling systems

• Process automation requiring AC output switching

• Indicator lamps and alarm systems

FAQ

Q: Does the module supply power to the load?
A: No. The IC200MDL330 requires an external 85–132 VAC source to drive field loads.

Q: Are the outputs relay-based or solid-state?
A: The module uses solid-state AC switching devices with integrated protection components.

Q: Can it be used with inductive loads?
A: Yes. Built-in MOV and snubber circuits provide protection against voltage spikes from inductive loads.

Q: Is channel isolation independent?
A: Yes. Each of the 16 outputs is individually isolated for improved system safety and noise immunity.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
