Product Description

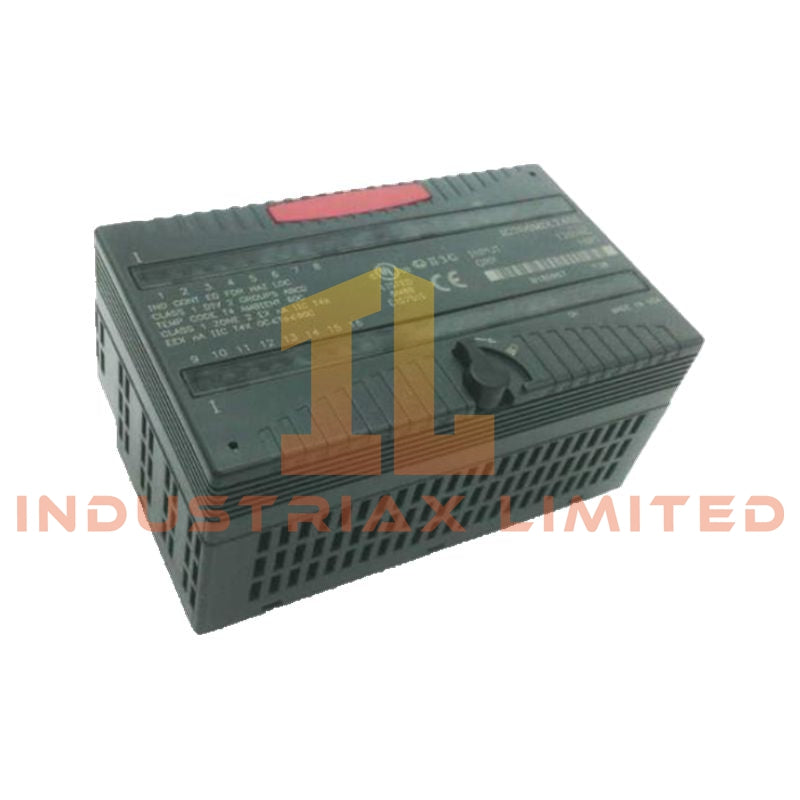

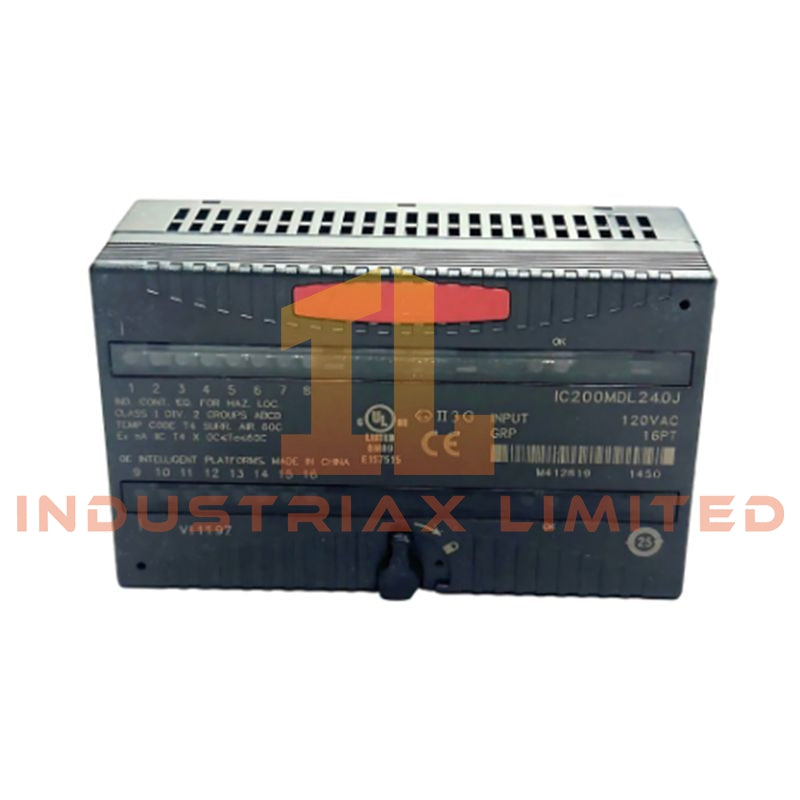

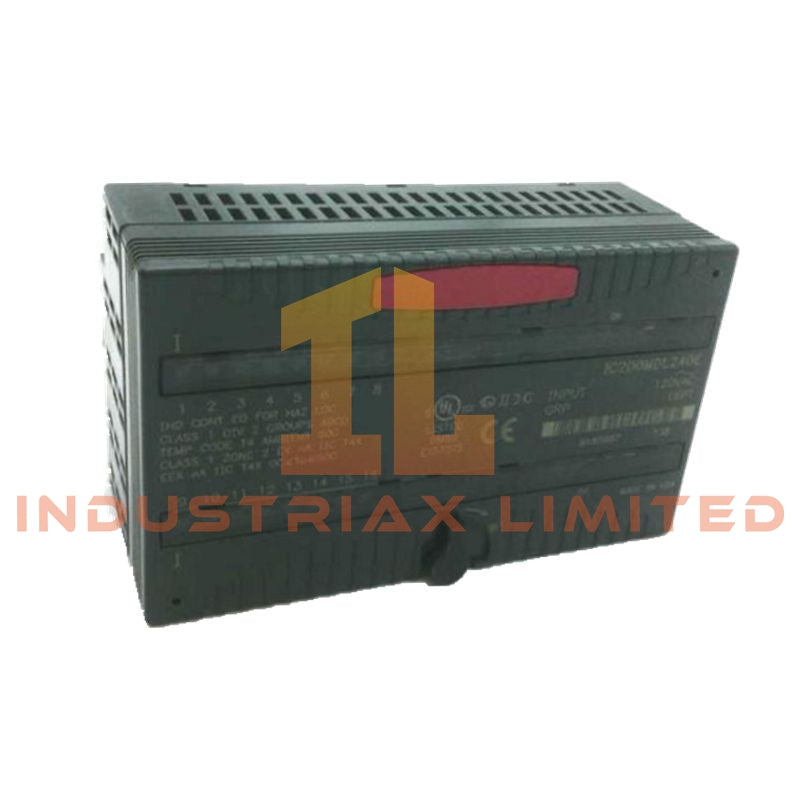

The IC200MDL240 is a 120 VAC digital input module developed for the GE Vernova VersaMax distributed I/O platform. It is designed to acquire AC field signals from switches, relays, and sensing devices, converting them into processed input data for PLC systems.
This module operates as a dual-group input interface with internal optical isolation and backplane-powered operation. It is commonly installed in modular control systems where reliable AC signal acquisition and point-level diagnostics are required.
Functional Overview
-
16-channel AC digital signal acquisition module
-
Two electrically isolated input groups (8 channels per group)
-
Positive logic (sourcing input configuration)
-
Backplane-powered operation with no external supply required
-
Point-level diagnostics via LED indicators
-
Designed for rack-based VersaMax I/O architecture
Technical Specifications
General Information
-
Model: IC200MDL240
-
Product Type: 120 VAC Discrete Input Module
-
Series: VersaMax I/O
-
Input Channels: 16 points total
-
Grouping: 2 × 8 input channels
-
Logic Type: Positive logic (sourcing inputs)
-
Installation Platform: VersaMax I/O carrier (DIN rail or panel mounted)
-
Weight: 0.17 kg
Electrical Characteristics
-
Nominal Input Voltage: 120 VAC
-
Operating Range: 0–132 VAC
-
Frequency Range: 47–63 Hz
-
Input Current: approx. 7 mA at 120 VAC
-
ON-State Voltage Range: 70–132 VAC
-
OFF-State Voltage Range: 0–40 VAC
-
Response Time:
-
ON delay: ≤ 1 cycle
-
OFF delay: ≤ 2 cycles
-
Backplane Current Consumption: up to 110 mA
Isolation & Protection
-
Channel Group Isolation: 1500 VAC (1 minute withstand)
-
Continuous Isolation Rating: 250 VAC
-
Logic-to-ground isolation: reinforced industrial-grade separation
-
Hazardous Location Suitability: Class I, Division 2 rated environments
Indicators & Diagnostics
-
16 individual LED indicators (one per input channel)
-
1 OK LED for backplane power status
-
Real-time input state monitoring at module level
Mechanical Design
-
Dimensions: 110 × 66.8 × 50 mm
-
Housing: compact modular I/O enclosure
-
Mounting: VersaMax carrier system (DIN rail compatible)
Environmental Ratings
-
Operating Temperature: –40 °C to +70 °C
-
Storage Temperature: industrial extended range (typical PLC grade)
-
Humidity: 5%–95% non-condensing
-
Protection Class: IP20 (cabinet installation required)
-
Vibration Resistance: 0.2 g RMS
-
Shock Resistance: 5 g peak
Application Areas
-
Factory automation input signal acquisition
-
Process plant control systems
-
Utility and energy monitoring stations
-
Pump, fan, and motor control panels
-
Distributed PLC I/O architectures
FAQ
Q: Does IC200MDL240 require external power supply?
A: No, it is powered directly from the VersaMax backplane.
Q: Are the input channels isolated?
A: Yes, the module provides group-to-group isolation up to 1500 VAC.
Q: What type of devices can be connected?
A: 120 VAC field devices such as switches, relays, and AC sensors.
Q: How is module status monitored?
A: Each channel has an LED indicator plus a dedicated OK status LED.
