Description

Product Overview

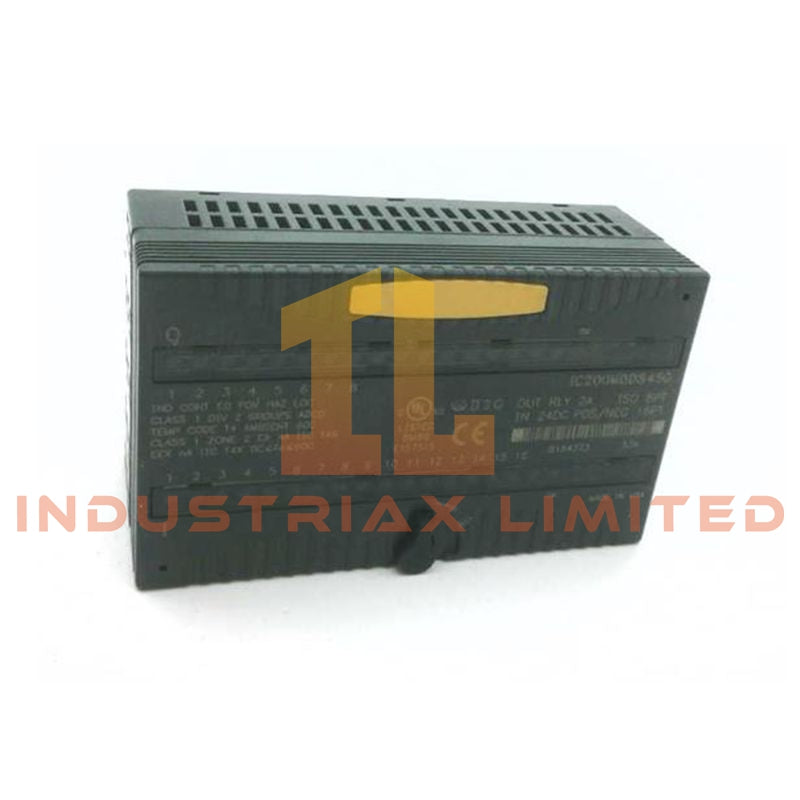

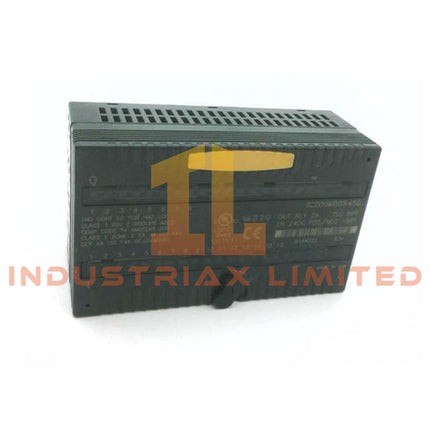

The IC200MDD845 is a hybrid discrete I/O module designed for the GE VersaMax platform, integrating both input acquisition and relay output switching within a single compact unit. It is engineered to reduce rack space usage and simplify field wiring while maintaining flexible control capability for mixed signal applications.

This module combines 16 channels of 24 VDC digital inputs with 8 Form A relay outputs. Each output is independently isolated, enabling reliable switching of AC and DC loads in diverse industrial environments.

Depending on hardware revision (C or later), the input section can support both positive and negative logic configurations, improving compatibility with a wide range of field devices.

Core System Data

• Model: IC200MDD845

• Series: GE Fanuc / Emerson VersaMax I/O

• Module Type: Mixed Discrete Input / Relay Output Module

• Total I/O Capacity: 24 points

• Input Channels: 16 × 24 VDC digital inputs

• Output Channels: 8 × Form A relay outputs

• Installation: VersaMax backplane mounting

• Power Source: Supplied via PLC backplane

Digital Input Specifications

• Nominal Voltage: 24 VDC

• Operating Range: 18–30 VDC

• Input Current: 2.0–5.5 mA

• Logic Type: Positive logic (negative logic supported on revised hardware)

• Input Filtering: Industrial noise suppression design

• Status Indication: Individual LED per channel

Relay Output Specifications

• Output Type: Form A (normally open) relay contacts

• Switching Voltage:

• 5–265 VAC

• 5–125 VDC

• Load Capacity:

• Up to 2 A resistive (AC/DC depending on voltage level)

• Isolation: Each output channel individually isolated

• Mechanical Life: Industrial-grade relay endurance rated for extended switching cycles

• Protection: Arc suppression recommended for inductive loads

Electrical & System Characteristics

• Backplane Current Consumption: up to 270 mA max

• Internal Logic Interface: High-speed VersaMax backplane communication

• Response Behavior: Fast relay actuation suitable for real-time control applications

• Diagnostics: Module OK LED + per-channel status LEDs

Isolation & Safety

• Channel-to-channel isolation on relay outputs

• Industrial isolation between field and logic circuitry

• Designed for harsh electrical noise environments typical of factory automation systems

Environmental Specifications

• Operating Temperature: 0 °C to 60 °C

• Storage Temperature: −40 °C to 85 °C

• Humidity: 5%–95% non-condensing

• Vibration Resistance: Industrial cabinet installation compliant

• Protection Level: IP20 (installed in enclosure)

Mechanical Data

• Dimensions: 110 × 66.8 × 50 mm

• Weight: 0.6 lbs

• Mounting: DIN rail / VersaMax carrier base

Typical Applications

• Machine automation control panels

• OEM equipment control integration

• Pump and motor control systems

• HVAC and building automation subsystems

• Distributed mixed-signal I/O expansion

FAQ

Q1: Can this module switch both AC and DC loads?
Yes, the relay outputs are rated for both AC and DC switching within specified limits.

Q2: Does it require external power?
No. Power is supplied through the VersaMax backplane.

Q3: Can input logic be changed?
Positive logic is default; negative logic is supported on hardware revision C or later.
