Description

Product Overview

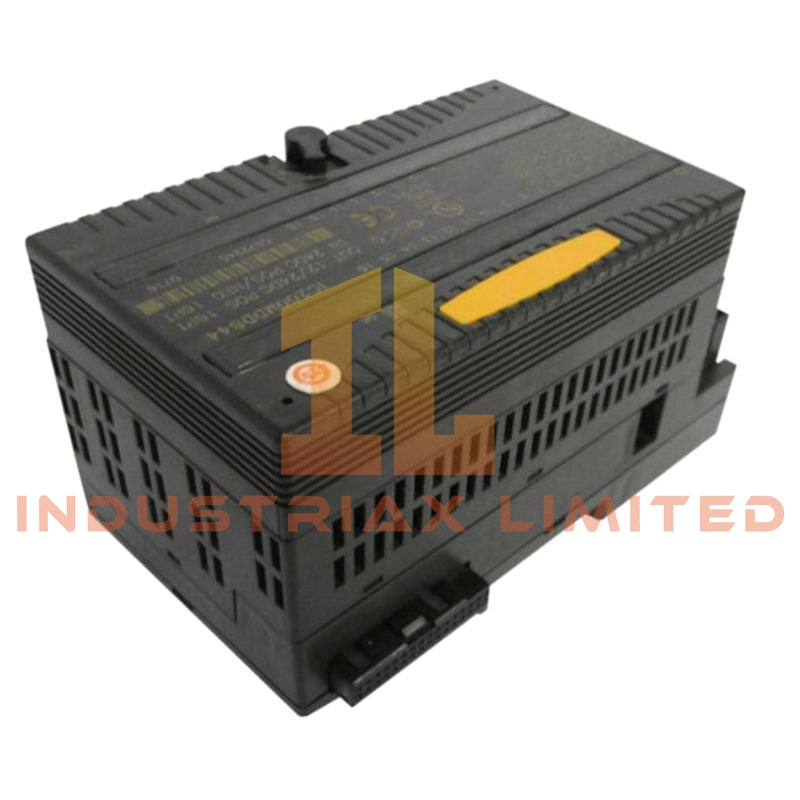

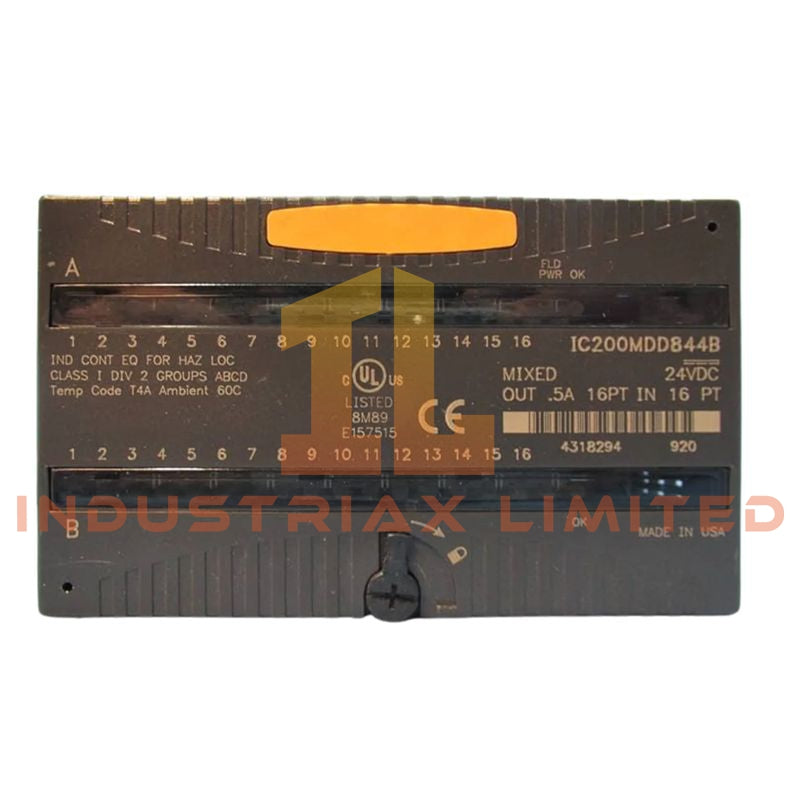

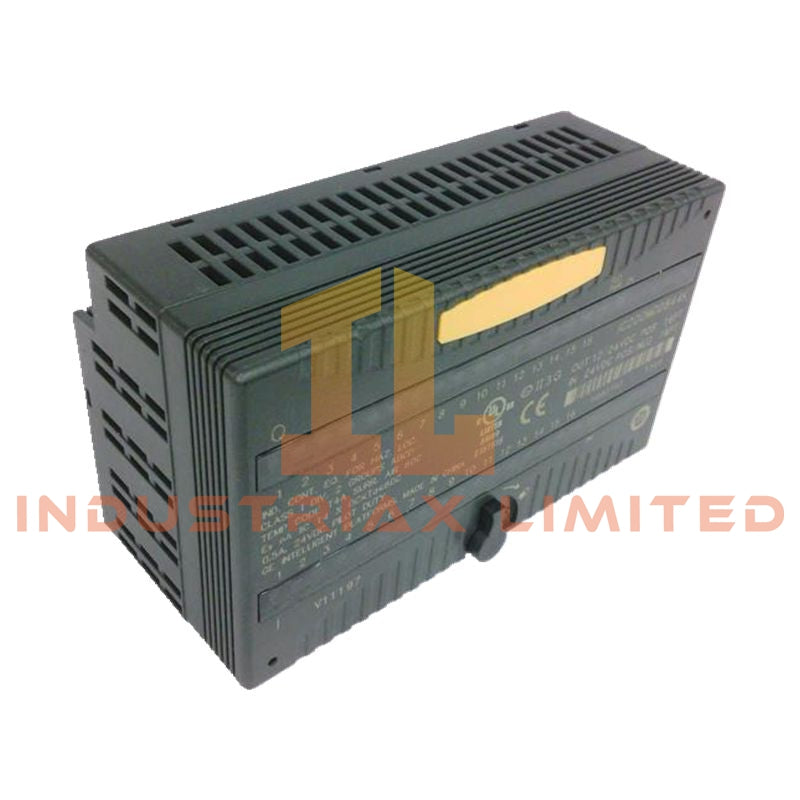

The IC200MDD844 is a compact mixed-signal discrete I/O module developed for the GE VersaMax platform, integrating digital inputs and relay-style DC outputs within a single hardware unit. It is engineered to simplify system architecture by combining sensing and actuation functions, minimizing rack space and reducing field wiring complexity.

This module provides 32 total I/O points, split evenly between 16 DC inputs and 16 DC sourcing outputs. It is suitable for machine control systems where both input acquisition and output switching are required in a single distributed I/O node.

Hardware revision C and later versions introduce enhanced compatibility, including support for negative-logic inputs and 12 V output configurations.

Core System Data

• Model: IC200MDD844

• Series: GE Fanuc / Emerson VersaMax I/O

• Module Type: Mixed Discrete Input / Output Module

• Total Capacity: 32 points

• Inputs: 16 × 24 VDC digital inputs

• Outputs: 16 × DC sourcing outputs

• Input Grouping: 2 groups of 8 channels

• Output Grouping: 1 group of 16 channels

• Backplane Power: 5 VDC via VersaMax rack (70 mA max)

Digital Input Characteristics

• Nominal Voltage: 24 VDC

• Operating Range: 0–30 VDC

• ON Threshold: 15–30 VDC

• OFF Threshold: 0–5 VDC

• Input Current: 2.0–5.5 mA

• Input Impedance: ≤10 kΩ

• Response Time:

• 0.5 ms (standard)

• 1.5 ms / 7.5 ms with filtering enabled

• Logic Type: Positive logic (negative logic supported on revision C+)

Digital Output Characteristics

• Output Type: DC sourcing outputs

• Output Voltage Range: 10.2–30 VDC

• Continuous Current: 0.5 A per channel (at rated voltage)

• Minimum Load: 10 mA

• Protection: Overload indication via LED per channel

• Switching Capability: Suitable for solenoids, indicators, and small actuators

• Output Architecture: One group of 16 channels

Electrical & Power System

• Backplane Consumption: 5 VDC @ up to 70 mA

• External Field Power: 10.2–30 VDC (typical 12/24 VDC systems)

• Power Architecture: Field-side and logic-side separated supply domains

• Energy Efficiency: Low backplane load design optimized for distributed I/O racks

Isolation & Protection

• Optical isolation between field wiring and logic circuits

• Industrial-grade noise immunity design

• Channel-level LED diagnostics for real-time status visibility

• Designed for high electrical noise environments in machine automation systems

Environmental Specifications

• Operating Temperature: 0 °C to 60 °C

• Storage Temperature: −40 °C to 85 °C

• Relative Humidity: 5%–95% non-condensing

• Installation Environment: Control cabinet (IP20 protection level)

• Vibration Resistance: Suitable for industrial machine mounting conditions

Mechanical Data

• Dimensions: 110 × 66.8 × 50 mm

• Weight: 0.17 kg

• Mounting Type: VersaMax carrier / DIN rail system

Typical Applications

• Compact machine control systems

• OEM equipment automation

• Packaging and material handling systems

• Distributed input/output expansion nodes

• Small to medium process control panels

FAQ

Q1: Can this module handle both AC and DC outputs?
No, the outputs are DC sourcing type only.

Q2: Is external power required for operation?
Yes, a 10.2–30 VDC field power supply is required in addition to backplane power.

Q3: Can input logic be changed?
Yes, negative logic support is available on hardware revision C or later.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
