Description

Overview

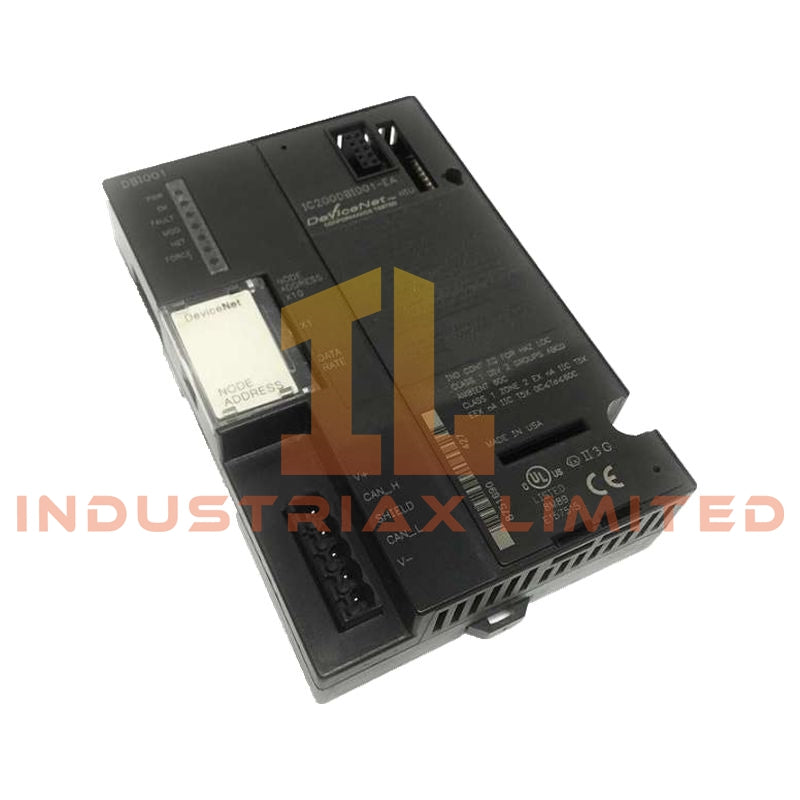

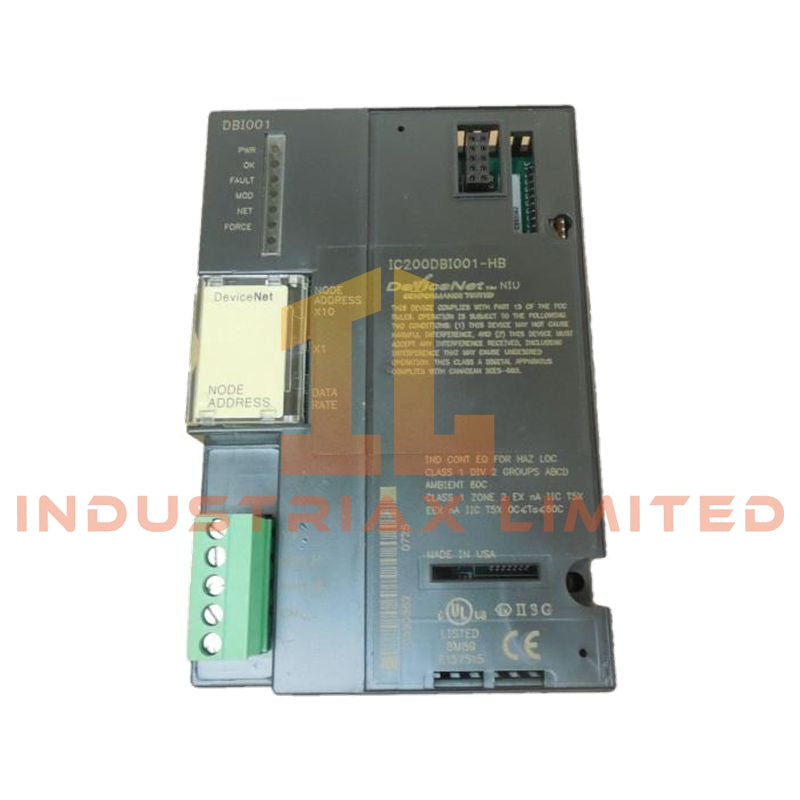

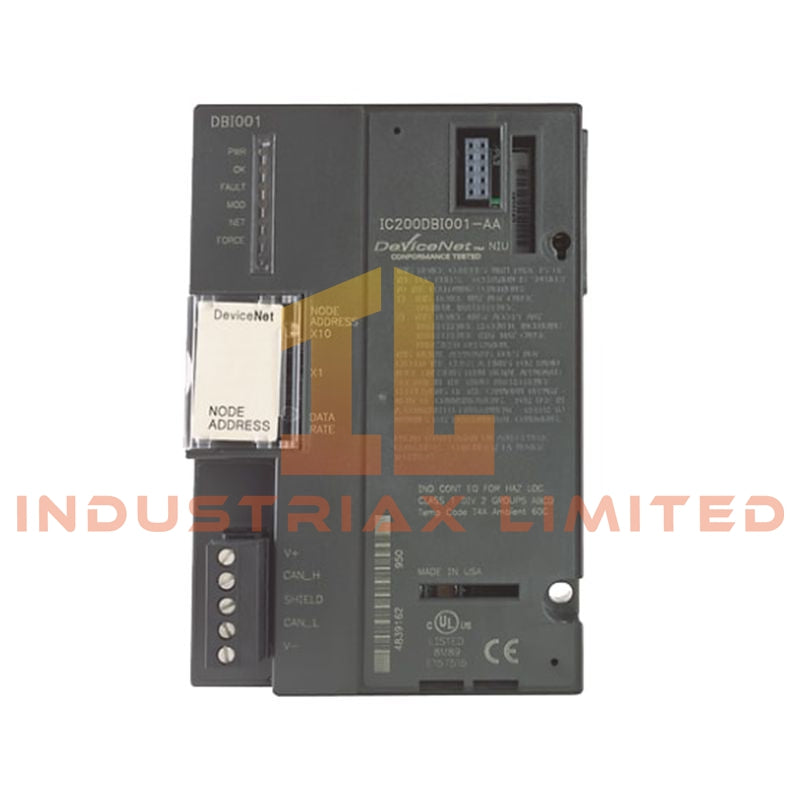

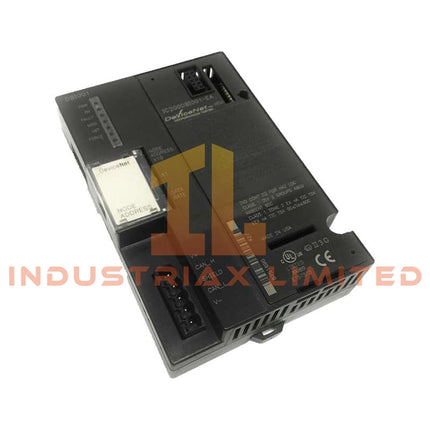

The IC200DBI001 is a VersaMax Network Interface Unit designed by GE Fanuc Emerson to connect modular VersaMax I/O stations to a DeviceNet field network. It functions as a slave interface, translating rack-based I/O data into DeviceNet-compatible communication for a host controller.

This unit supports distributed control architectures where remote I/O expansion is required over a DeviceNet backbone, ensuring deterministic data exchange between field devices and the master controller.

System Functionality

The module serves as the communication bridge between VersaMax I/O racks and DeviceNet networks.

• Operates as a DeviceNet slave node

• Supports up to 8 I/O modules per station

• Maps process data directly to network I/O image

• Handles cyclic polling and change-of-state communication

• Provides onboard configuration retention during short power interruptions

Network Communication

• Protocol: DeviceNet (Group 2 Server)

• Data rates: 125 kbps, 250 kbps, 500 kbps selectable

• Network topology: trunk/drop multi-drop structure

• Maximum node capacity: up to 64 devices on network

• Bus length:

• 500 m at 125 kbps

• 250 m at 250 kbps

• 100 m at 500 kbps

I/O Capacity and Data Handling

• Maximum station I/O modules: 8

• Input data capacity: 128 bytes

• Output data capacity: 128 bytes

• Total process data: 256 bytes per station

• Data exchange managed via cyclic and event-driven communication modes

Electrical Characteristics

• Power supply: 24 VDC ±10%

• Typical power consumption: ~150 mA (≈3.6 W)

• Reverse polarity protection included

• Integrated energy storage capacitor: 330 µF

• Short-term hold-up capability: approximately 10 ms

Interface and Indicators

• 5-pin open-style DeviceNet connector

• LED status indicators:

• Power (PWR)

• Module status (OK / FAULT)

• Network status (NET)

• Module activity (MOD)

• Force mode indicator

These indicators provide real-time diagnostics for network and module health.

Mechanical and Installation

• Designed for VersaMax I/O carrier mounting system

• Compatible with standard IC200CHS series carriers

• Compact modular form factor for DIN rail cabinet integration

• Suitable for dense rack configurations in distributed I/O systems

Weight: 0.64 lbs

Environmental Ratings

• Operating temperature: 0°C to 60°C (some variants support -20°C start-up range)

• Storage temperature: -40°C to 85°C

• Certifications: CE, cULus

• Designed for enclosed control cabinet environments with controlled airflow

Applications

• Remote I/O expansion over DeviceNet networks

• Machine-level distributed control systems

• Multi-node sensor and actuator integration

• Packaging and material handling systems

• Legacy DeviceNet infrastructure modernization

FAQ

Q1: How many I/O modules can be connected to one unit?
Up to 8 VersaMax I/O modules per station.

Q2: Does it support multi-speed DeviceNet communication?
Yes, it supports 125, 250, and 500 kbps selectable baud rates.

Q3: Can it maintain data during brief power loss?
Yes, an onboard capacitor provides short-term hold-up to preserve communication stability.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
