Description
Overview

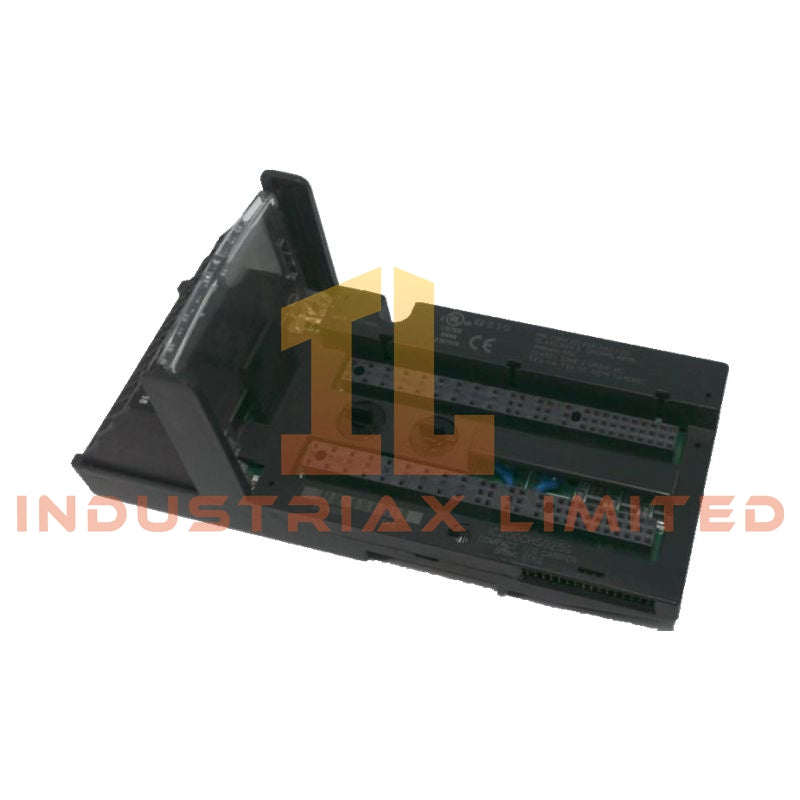

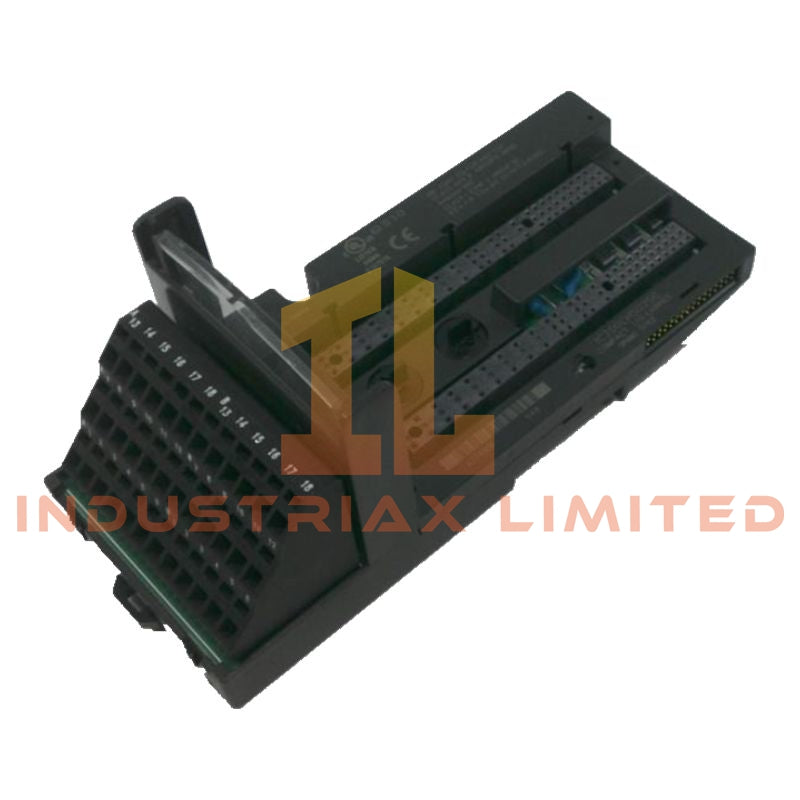

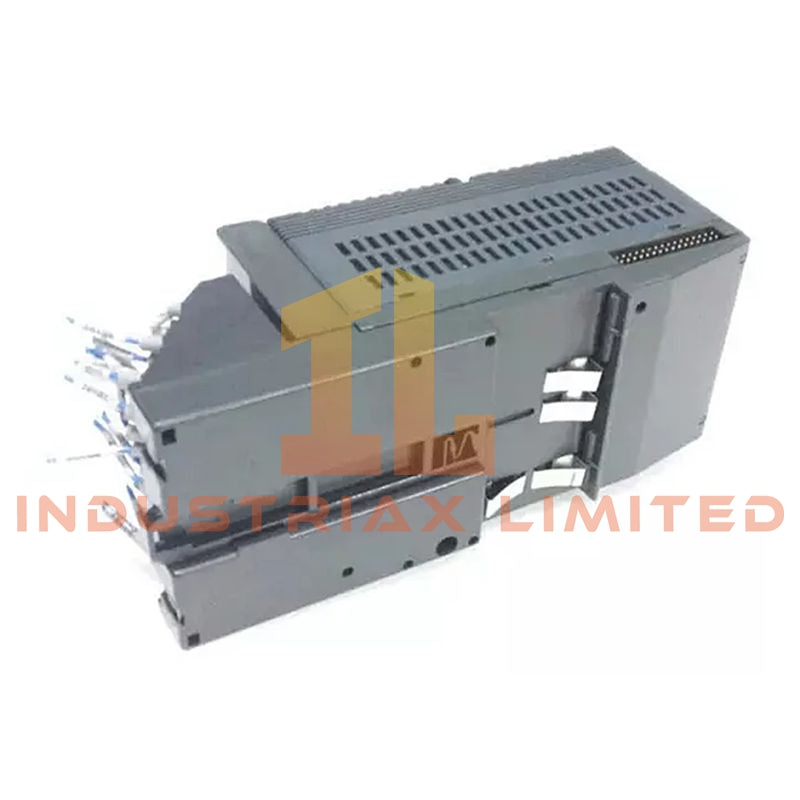

The IC200CHS025 is a compact VersaMax carrier unit engineered by GE Fanuc Emerson for direct mounting of a single I/O module within a distributed control rack. It integrates field wiring termination, backplane interface routing, and mechanical module retention into a single vertical-format carrier.
Designed for space-constrained control panels, this model uses spring-clamp terminal technology to simplify wiring installation while maintaining reliable electrical contact and vibration resistance.
Mechanical Structure and Installation
This carrier is optimized for high-density cabinet layouts and supports both DIN rail and panel mounting configurations.
-
DIN rail mounting: 35 mm standard (EN 50022)
-
Optional direct panel mounting for high-vibration environments
-
Vertical module orientation for compact rack arrangement
-
Integrated keying system to prevent incorrect module placement
-
Secure latch mechanism for stable module retention
-
Carrier-to-carrier interconnect support for backplane continuity
Wiring Interface Design
The IC200CHS025 uses spring-loaded IEC terminal technology to reduce installation time and eliminate the need for specialized tools.
-
36 spring-clamp terminals total
-
Supports up to 32 signal I/O connections
-
Includes 4 dedicated common/power terminals
-
Compatible with single or dual conductor wiring
-
Wire compatibility:
-
Single wire: AWG 14–22
-
Dual wire: AWG 18
This design improves wiring density while reducing maintenance errors in field installations.
Electrical Ratings
-
Maximum operating voltage: 264 VAC
-
Transient voltage withstand: up to 300 VAC
-
I/O capacity: up to 32 points per carrier (module dependent)
-
Power distribution: supplied through mounted VersaMax I/O module
-
Designed for low-resistance signal continuity across backplane interface
System Integration
The carrier functions as a structural and electrical interface for VersaMax I/O modules, ensuring stable communication with the system backplane while maintaining correct module alignment and grounding continuity.
It is compatible with a wide range of VersaMax digital and analog I/O modules used in modular control architectures.
Environmental Specifications
-
Operating temperature range: -40°C to +60°C
-
Vertical spacing requirement: 2 inches
-
Horizontal spacing requirement: 1 inch
-
DIN rail grounding required for EMC compliance
-
Conductive, corrosion-resistant rail surface recommended
Physical Characteristics
-
Length: 163.5 mm
-
Width: 66.8 mm
-
Depth: 70 mm
-
Weight: 0.68 lbs
Applications
-
Compact PLC I/O expansion systems
-
High-density control cabinet wiring layouts
-
Machine-level modular automation systems
-
Retrofit installation of VersaMax I/O platforms
-
Vibration-sensitive industrial control panels
FAQ
Q1: What type of wiring system does this carrier use?
It uses 36 spring-loaded IEC terminals for tool-free wire insertion.
Q2: Can it be installed without DIN rail mounting?
Yes, it supports optional panel mounting for environments with higher vibration.
Q3: How many I/O points does it support?
It supports up to 32 I/O channels plus 4 common/power connections depending on module configuration.
