Product Description

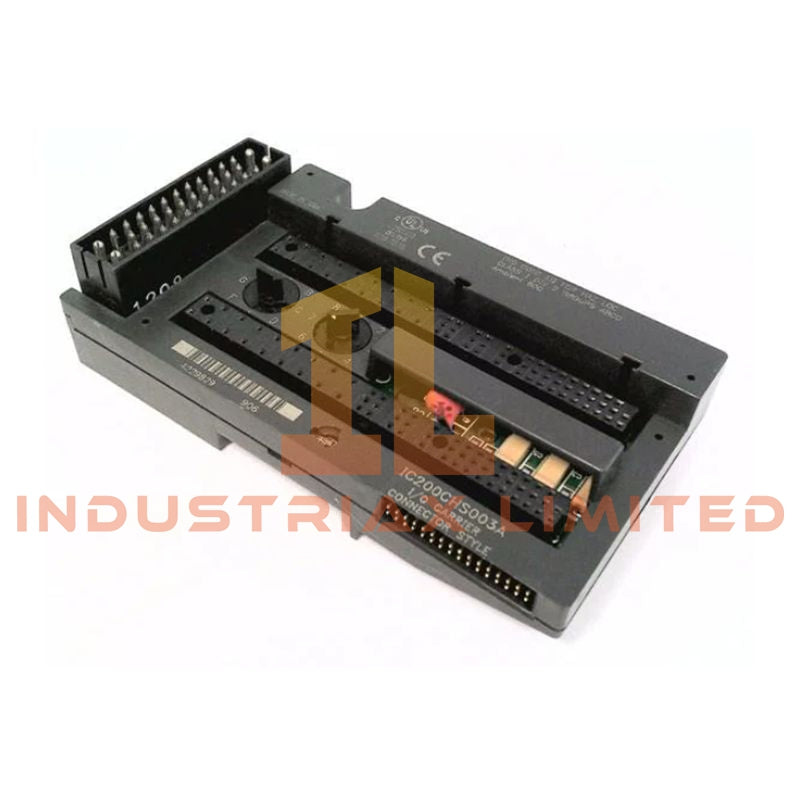

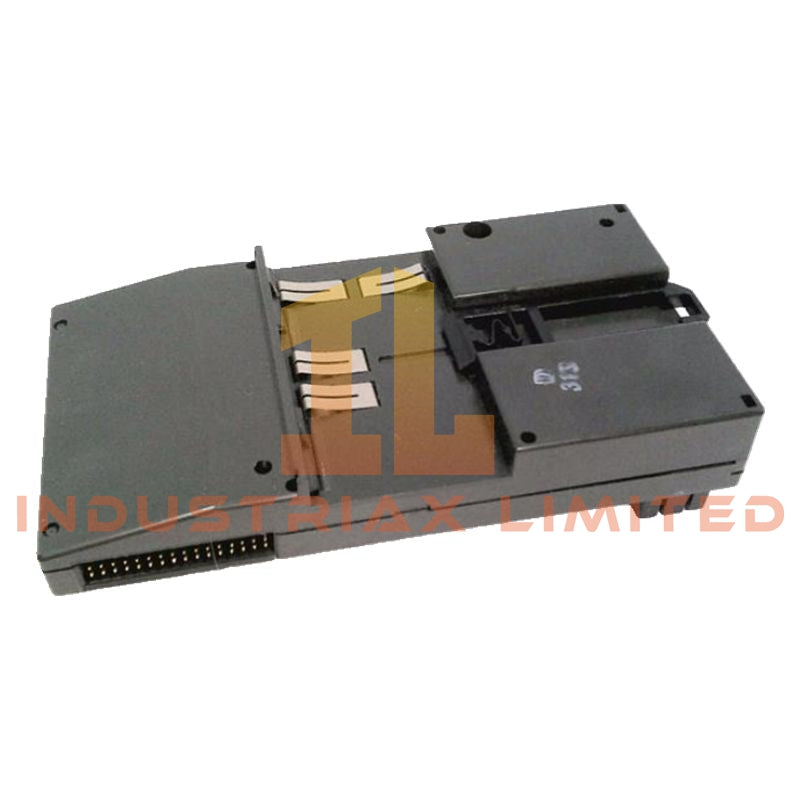

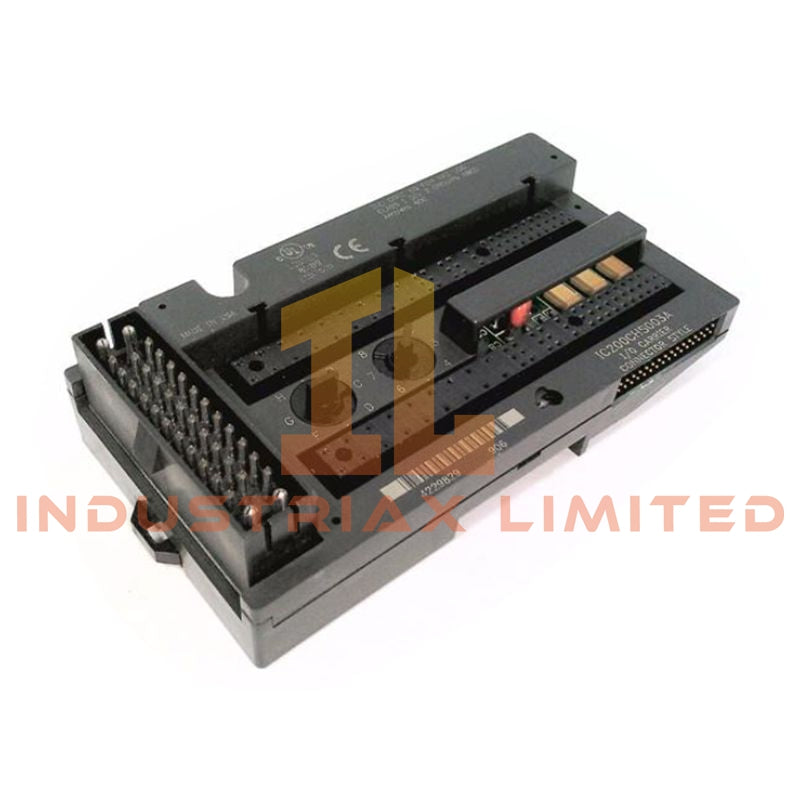

The IC200CHS003 is a connector-based I/O carrier designed for the GE VersaMax platform, providing both mechanical support and electrical interfacing for I/O modules. It acts as the mounting base where discrete or analog modules are installed, enabling streamlined wiring and reliable signal distribution within the control system.
This carrier incorporates a 36-pin connector interface, allowing quick integration with pre-assembled cables or interface modules. Compared to traditional terminal-based wiring, this approach reduces installation time and minimizes wiring errors. The unit supports vertical module installation and is suitable for both DIN rail and panel mounting configurations.
Engineered for industrial environments, the IC200CHS003 combines compact dimensions with robust construction, making it suitable for distributed I/O architectures and high-density control panels.
Key Features
-
36-pin connector interface for simplified field wiring
-
Supports direct connection via prefabricated cables
-
Compatible with most VersaMax I/O modules
-
Vertical mounting orientation for efficient panel layout
-
DIN rail and panel mounting flexibility
-
Reduces commissioning time and wiring complexity
Technical Specifications
Mechanical Characteristics
-
Product Type: Connector-style I/O carrier
-
Connector: 36-pin interface
-
Mounting Options: DIN rail or panel mount
-
Installation Orientation: Vertical
-
Dimensions: 110 × 70 × 140 mm
-
Weight: 0.11 kg
Electrical Ratings
-
Maximum Operating Voltage: up to 264 VAC
-
Transient Voltage Tolerance: up to 300 VAC
-
Current per I/O Channel: 2 A
-
Current per Common (Power/Ground): 8 A
Environmental Conditions
-
Protection Class: IP20 (indoor use)
-
Operating Temperature: 0 °C to +60 °C
-
Storage Temperature: –40 °C to +85 °C
Compatibility
-
Supports standard VersaMax I/O modules (digital and analog)
-
Not recommended for high-isolation modules such as:
-
IC200MDL144
-
IC200MDL244
-
IC200MDD850
-
Can be integrated with interposing terminal carriers (IC200CHS011/012/014/015) using IC200CBL1xxx cable assemblies
Applications
The IC200CHS003 carrier is commonly used in:
-
Distributed I/O systems in manufacturing lines
-
Control panels requiring modular expansion
-
Process automation systems with centralized wiring
-
Machine automation where fast installation is required
FAQ
Q: What is the advantage of a connector-style carrier?
A: The IC200CHS003 reduces wiring effort by using a multi-pin connector, improving installation efficiency and reducing potential wiring errors.
Q: Can it be used with all VersaMax modules?
A: It supports most modules, but high-isolation AC modules are not recommended due to electrical limitations.
Q: Does this carrier include terminal blocks?
A: No. It is designed to work with external cables or interposing terminal modules.
Q: Is it suitable for outdoor installation?
A: No. With an IP20 rating, it is intended for installation inside control cabinets.
