Product Description

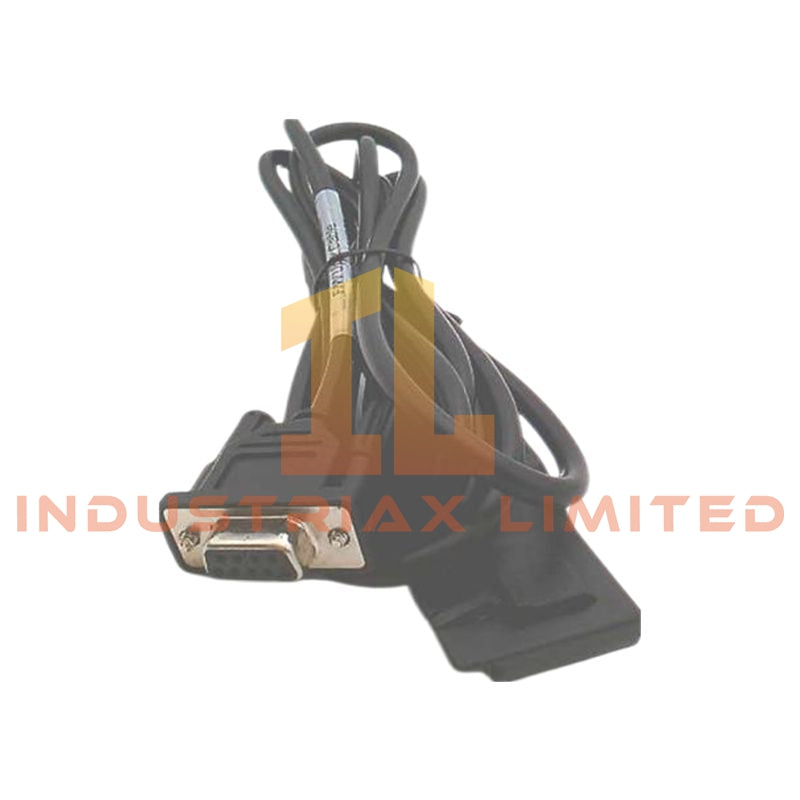

The IC200CBL002 is a dedicated communication cable used within GE VersaMax control systems for configuration, programming, and device communication. It is primarily designed to establish a reliable connection between a Network Interface Unit (NIU) and a PC, enabling system setup, firmware updates, and diagnostics.
In the field, this part number is also associated with different variants, including a 3-meter industrial communication cable with M12 connectors and, in some cases, a compact system-bus interface assembly. Regardless of the variation, all versions are engineered to maintain high signal integrity and stable communication under industrial conditions.
The cable features robust shielding and industrial-grade insulation, ensuring resistance to electromagnetic interference and long-term durability in control cabinets and factory environments.
Key Features
-
Designed for NIU-to-PC programming and configuration tasks
-
Shielded construction for improved noise immunity
-
Industrial connector options including M12 (depending on version)
-
Suitable for system integration and communication diagnostics
-
Durable cable jacket for harsh environments
-
Supports stable, high-integrity data transmission
Technical Specifications
General Characteristics
-
Part Number: IC200CBL002 (44A770487-001R01)
-
Cable Type: Communication / programming cable
-
Typical Length: 3 meters (cable version)
-
Connector Type: M12 or dedicated interface connector (variant dependent)
-
Weight: 0.1 kg
Electrical Performance
-
Signal Type: Low-voltage digital communication
-
Maximum Data Rate: up to 10 Mbps (cable version)
-
Insulation Voltage Rating: up to 300 V AC/DC
-
Shielding: Yes (EMI-resistant design)
Environmental Ratings
-
Operating Temperature: –20 °C to +70 °C
-
Storage Temperature: –40 °C to +85 °C
-
Protection Class: up to IP67 (for M12 connector variant)
Optional Variant (System-Bus Interface Type)
-
Communication Bandwidth: up to 100 Mbps
-
Supply Voltage: 24 VDC
-
Power Consumption: < 5 W
-
Supported Protocols: Modbus, Profibus, DeviceNet
-
Operating Temperature: –40 °C to +85 °C
Applications
The IC200CBL002 is commonly used for:
-
Connecting VersaMax NIU modules to a PC for configuration
-
PLC programming and firmware updates
-
Short-distance communication between automation devices
-
System diagnostics and commissioning
-
Industrial communication networks requiring shielded cabling
FAQ
Q: What is the primary function of this cable?
A: The IC200CBL002 (44A770487-001R01) is mainly used for connecting a VersaMax NIU to a computer for configuration and maintenance tasks.
Q: Are there multiple versions of this part number?
A: Yes. It may refer to either a programming cable or a communication cable assembly depending on the supplier listing. Always verify connector type and specifications before ordering.
Q: Is the cable suitable for industrial environments?
A: Yes. It is designed with shielding and durable insulation to withstand electrical noise and harsh conditions.
Q: Does it support high-speed communication?
A: The standard cable supports up to 10 Mbps, while some associated module variants support higher bandwidth.
