Description

Overview

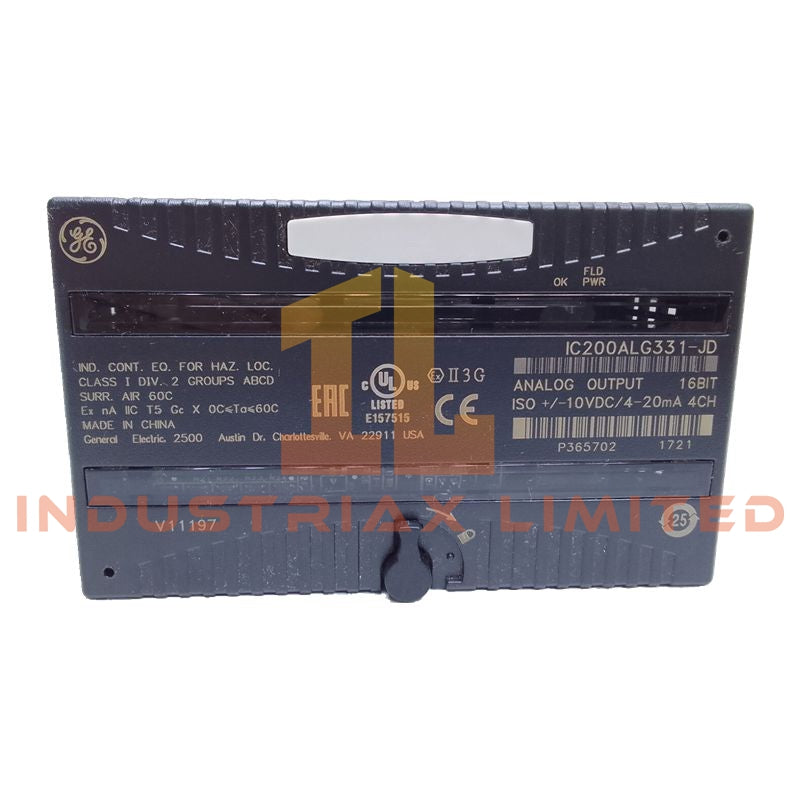

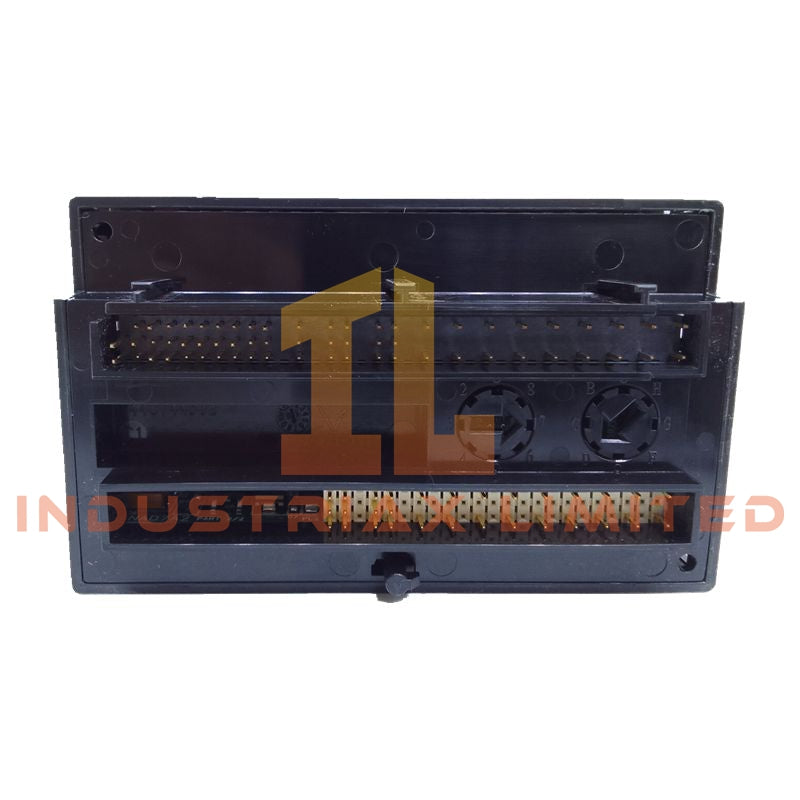

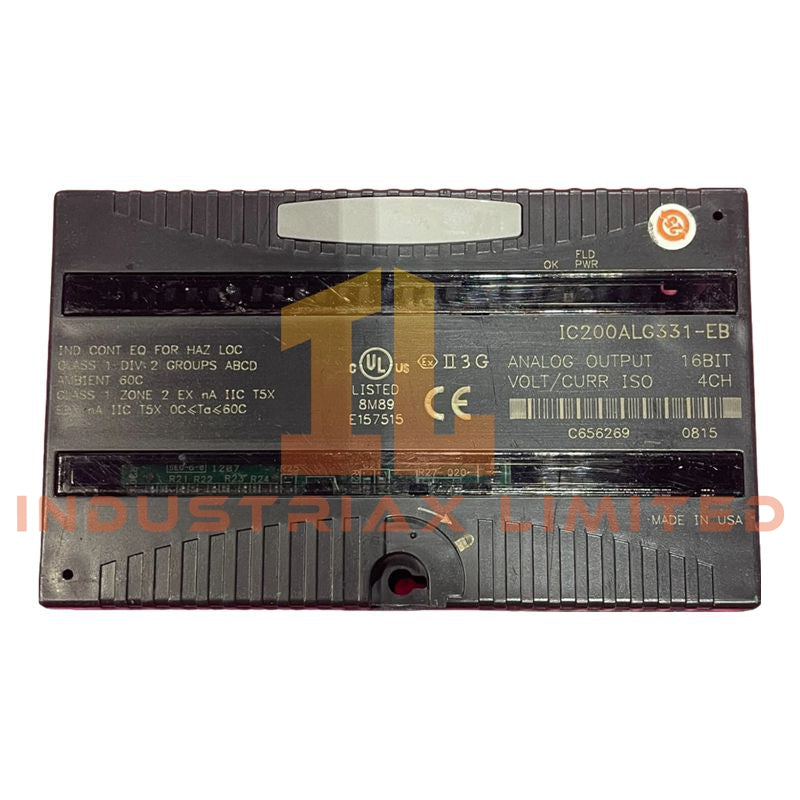

The IC200ALG331 is a high-resolution VersaMax analog output module developed by GE Fanuc Emerson, intended for precision control of field devices requiring stable analog command signals. It provides four fully isolated output channels capable of generating both voltage and current signals for process regulation and actuator control.

The module is typically used as an interface between PLC control logic and final control elements such as valves, drives, and dampers.

Output Architecture

Each channel is independently isolated and software configurable, allowing flexible deployment in mixed signal environments.

• 4 individually isolated analog output channels

• Selectable output modes per channel:

• ±10 VDC voltage output

• 4–20 mA current output (internally 1–20 mA operating range)

• 16-bit digital-to-analog conversion

• Fully software configurable (no physical jumpers required)

• Channel isolation designed to eliminate ground loop interference

Performance Characteristics

• Output update cycle: up to 7 ms

• Resolution: 16-bit (high precision setpoint control)

• Accuracy: ±0.1% of full scale at 25°C

• Stable low-noise analog generation for precision process loops

Electrical Specifications

• Voltage output range: ±10 VDC

• Current output range: 4–20 mA (1–20 mA internal scaling)

• DAC resolution:

• Voltage: approx. 381 µV per step

• Current: approx. 381 nA per step

• External field power supply: 18–30 VDC (including ripple)

• Backplane consumption:

• 10 mA at 5 VDC

• 115 mA at 3.3 VDC

• Maximum load current: dependent on field device configuration

Isolation and Protection

• Channel-to-channel isolation: 250 VAC continuous

• Logic-to-field isolation: 250 VAC continuous

• Input-to-ground isolation: 1500 VAC for 60 seconds

• Protection features:

• Open wire detection

• Overrange/underrange monitoring

• High/low limit alarms

• Field power loss detection

• Non-volatile memory fault reporting

Diagnostics and Indicators

• FLD PWR LED: field power status

• OK LED: module health and operational status

• Built-in diagnostic feedback for real-time fault detection and system monitoring

Configuration Behavior

• Output fault response options:

• Hold last output state

• Force defined default output value

• Configuration stored in non-volatile memory for recovery after power loss

Mechanical Design

• Single-slot VersaMax module form factor

• Compact plug-in installation within standard carrier systems

• Weight: 0.31 kg

• Designed for high-density control cabinet integration

Environmental Ratings

• Operating temperature: -40°C to +70°C (system dependent integration range)

• Designed for electrically noisy industrial environments

• High immunity to ground loop and electromagnetic interference due to full isolation design

Applications

• Process control loop modulation

• Valve and actuator positioning systems

• VFD speed reference control

• HVAC and building automation analog outputs

• Precision signal generation for instrumentation systems

FAQ

Q1: Can each channel output voltage and current simultaneously?
No, each channel is independently configurable for either voltage or current mode, not both at the same time.

Q2: Does the module require external field power?
Yes, a 18–30 VDC external supply is required for proper analog output operation.

Q3: Are all channels fully isolated?
Yes, each of the four channels is individually isolated for maximum signal integrity.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
