Product Description

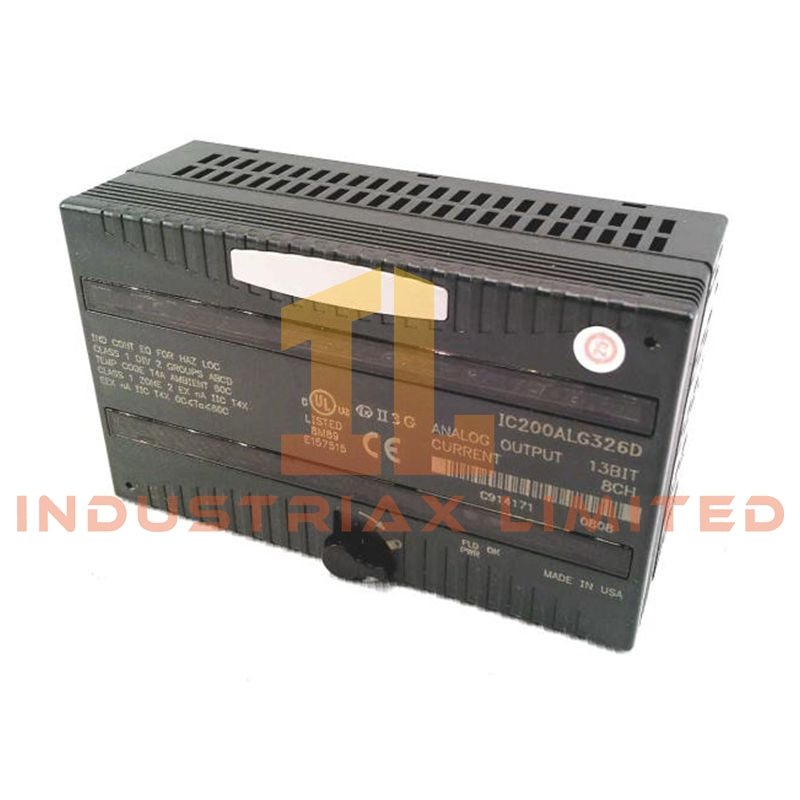

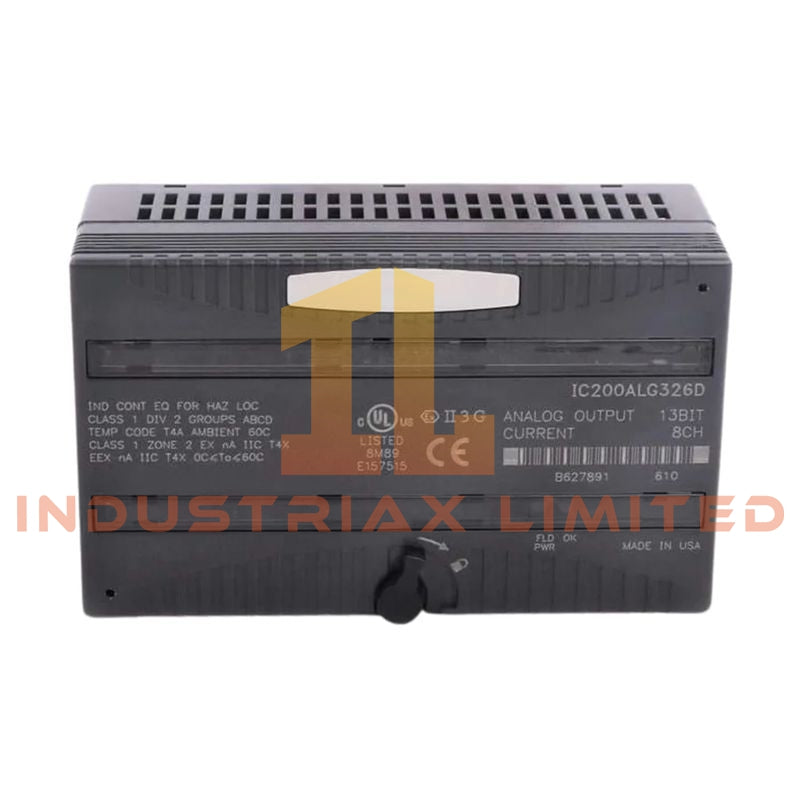

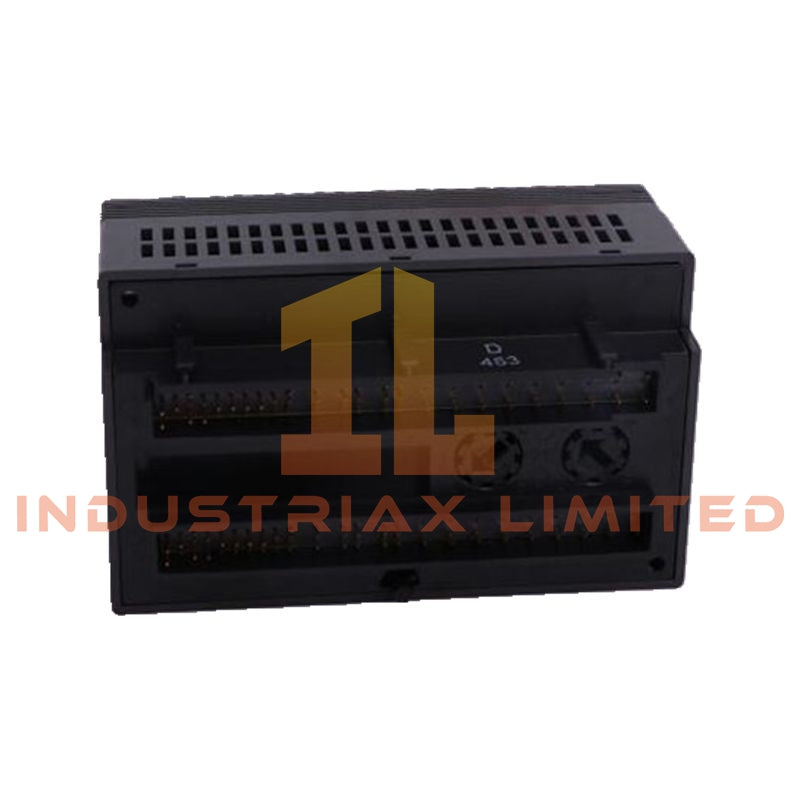

The IC200ALG326 is a compact analog output module from the GE Fanuc VersaMax platform, engineered to deliver stable current signals for industrial control applications. It provides eight single-ended output channels grouped under a common reference, designed for driving field devices such as control valves, variable speed drives, and actuators.

This module operates in current-sourcing mode and supports both 4–20 mA and 0–20 mA output ranges, selectable via onboard jumper configuration. With a 13-bit resolution, it ensures consistent signal scaling suitable for most process control environments.

Integrated diagnostics monitor both field and backplane power conditions, while configurable output fallback behavior allows the system to maintain stability during communication interruptions or power loss. The module can be replaced under power (hot insertion), though careful handling is recommended to avoid disturbances on the I/O rack.

Key Features

• Eight analog current output channels in a single module

• Current-sourcing outputs with jumper-selectable ranges

• Supports 4–20 mA (default) and 0–20 mA output signals

• 13-bit resolution for reliable analog control

• Configurable output response on fault conditions

• LED indicators for field and backplane power status

• Integrated diagnostics for system monitoring

• Compatible with VersaMax PLC CPUs and NIUs

• Supports hot insertion for maintenance flexibility

Technical Specifications

General Information

• Manufacturer: GE Fanuc / Emerson

• Series: VersaMax

• Product Type: Analog Output Module

• Model: IC200ALG326

Output Characteristics

• Number of Channels: 8 (single-ended, one group)

• Output Type: Current sourcing

• Output Ranges:

• 4–20 mA (default)

• 0–20 mA (jumper selectable)

• Resolution: 13-bit

• Update Time: ≤15 ms per module

Scaling

• 0–20 mA Mode:

• 0 mA = 0 counts

• 20 mA = 32,000 counts

• 4–20 mA Mode:

• 4 mA = 0 counts

• 20 mA = 32,000 counts

Electrical Specifications

• Field Power Supply: 18–30 VDC

• Backplane Current Consumption: 50 mA @ 5 VDC

• Field Current Consumption:

• Up to 185 mA at full load (all channels active)

• Inrush Current: up to 2 A

• No-load consumption: approx. 100 mA

Isolation

• Field to logic isolation:

• 250 VAC continuous

• 1500 VAC for 1 minute

• Channel-to-channel isolation: Not provided (common reference)

Diagnostics & Status Indication

• Field power presence detection (FLD PWR LED)

• Backplane power indication (OK LED)

• Detection of power loss conditions

• Output behavior configurable for:

• Communication failure

• Backplane power loss

• Selectable fallback modes: hold last value or predefined output

Mechanical & Environmental

• Mounting: VersaMax baseplate

• Weight: 0.44 lbs

• Protection Rating: IP20

• Designed for standard industrial environments

Applications

The IC200ALG326 is typically deployed in control systems requiring accurate analog output signals:

• Process control loops (flow, pressure, temperature)

• Valve and actuator positioning

• Variable frequency drive (VFD) control

• Chemical and petrochemical plants

• Power generation systems

FAQ

Q: Are the outputs isolated individually?
A: No, all eight channels share a common reference and are not individually isolated.

Q: Can the output range be changed without software?
A: Yes, switching between 4–20 mA and 0–20 mA is done via a hardware jumper.

Q: What happens if communication with the PLC is lost?
A: The module can be configured to either hold the last output value or transition to a predefined safe state.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
