Product Description

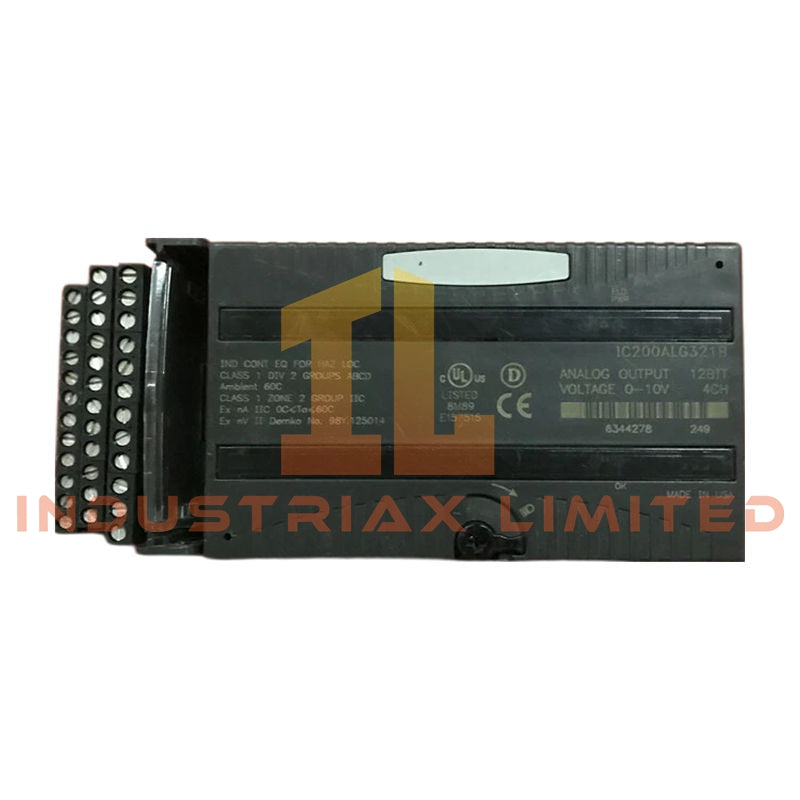

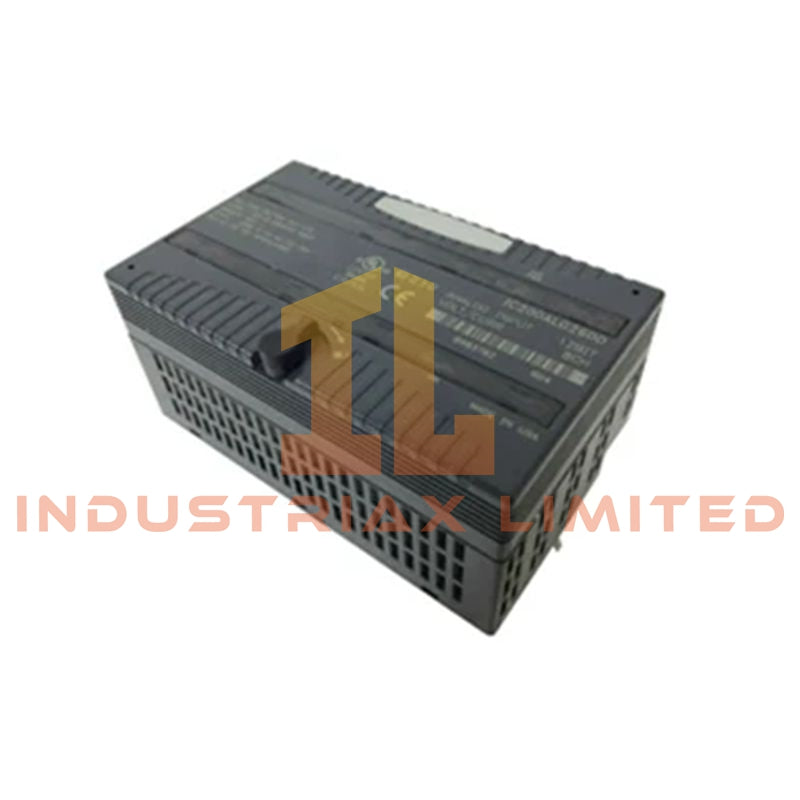

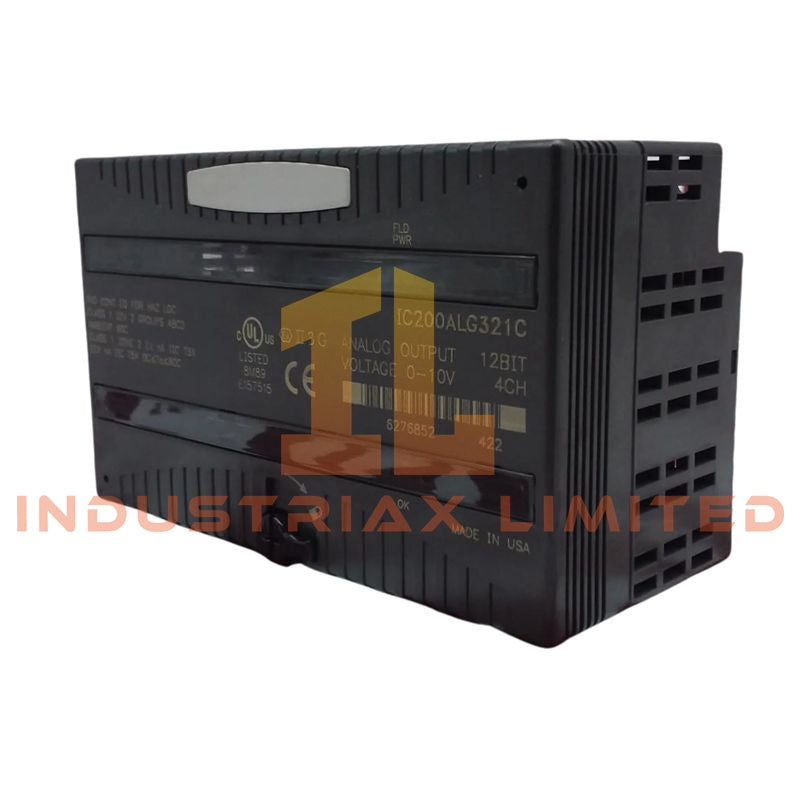

The IC200ALG321 by GE Fanuc / Emerson is a 4-channel analog output module engineered for the VersaMax PLC system. It delivers precise 0–10.24 VDC signals with 12-bit resolution, enabling control of actuators, valves, VFDs, dampers, and other analog-driven process devices.
This module is designed for industrial reliability, with robust isolation between the user-side outputs and the PLC logic, fast 0.3 ms update rate, and built-in diagnostics for detecting field-side power loss. Two front-panel LEDs indicate field power presence (FLD PWR) and backplane status (OK), ensuring clear visual monitoring of operational status.
The module requires an external 18–30 VDC supply for output circuitry, while the logic power is fully supported from the VersaMax backplane.
Technical Specifications
Channels & Output
-
Number of channels: 4
-
Type: Analog voltage outputs, single-ended
-
Output range: 0–10.24 VDC
-
Resolution: 12-bit (2.5 mV per step)
-
Accuracy: 0.3% typical, ±1% max full scale
-
Load capacity: ≥ 5000 Ω resistive, ≤ 1 µF capacitive
Performance
-
Update rate: 0.3 ms per module
-
Response: Fast, suitable for process control loops and precision actuation
-
Output behavior: Hold last state or output 0 VDC on CPU stop or communication loss
Power & Isolation
-
External field-side supply: 18–30 VDC nominal (supports 12/24 VDC systems)
-
Backplane consumption: 50 mA @ 5 VDC
-
Isolation: 250 VAC continuous, 1500 VAC for 1 min (user side to logic)
Diagnostics & Indicators
-
LEDs: FLD PWR (field-side power), OK (backplane)
-
Detects loss of field-side power
-
Provides safe default or hold-last output states during errors
Mechanical & Environmental
-
Dimensions: 110 × 66.8 × 50 mm
-
Weight: 0.30 lbs
-
Mounting: VersaMax I/O rack, occupies 1 slot
-
Operating temperature: 0°C to 60°C
-
Humidity: 5–95% non-condensing
Applications
-
Controlling analog valves, dampers, actuators, and motors
-
VFD and speed regulation in process loops
-
Industrial automation requiring precise voltage outputs
FAQ
Q: Can this module handle current outputs?
A: IC200ALG321 is strictly a voltage output module; use a current output module for 4–20 mA applications.
Q: Is external power required?
A: Yes, 18–30 VDC is needed for the output circuits; logic power is supplied from the backplane.
Q: How fast are the voltage updates?
A: The module provides an update every 0.3 ms per module, suitable for high-speed control loops.
