Product Overview

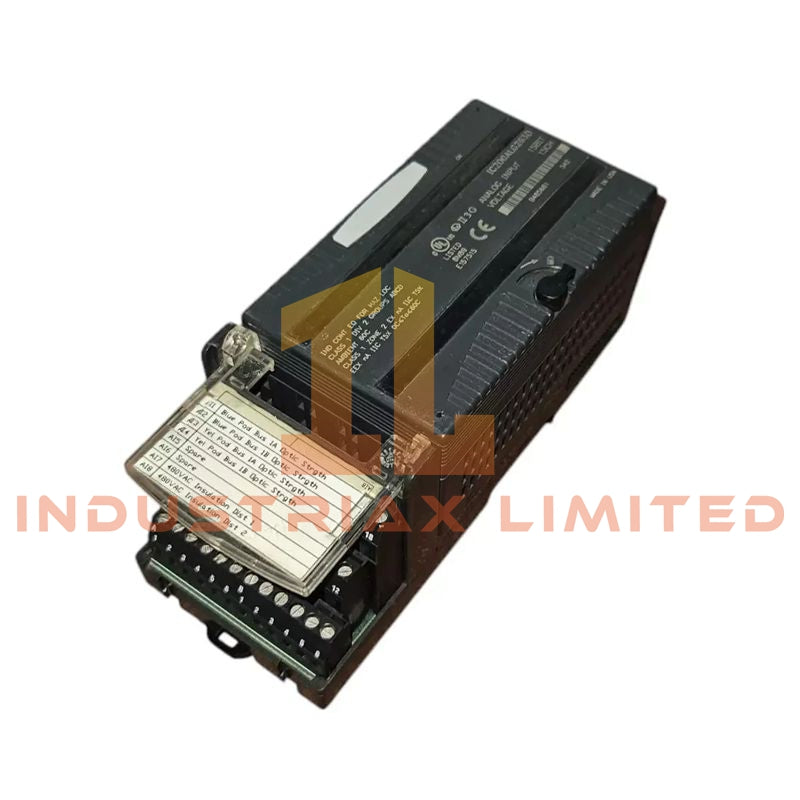

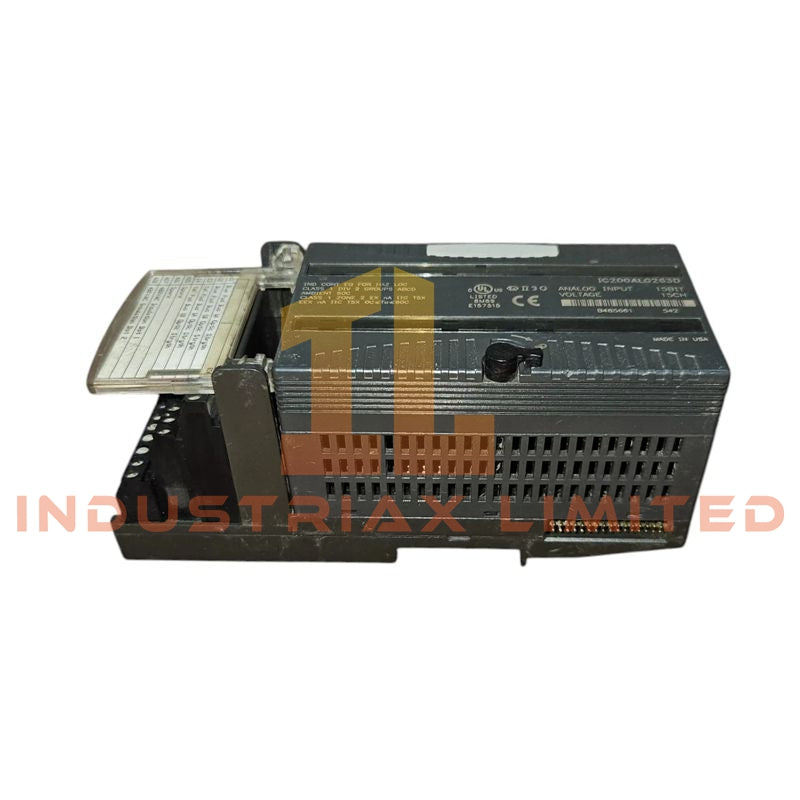

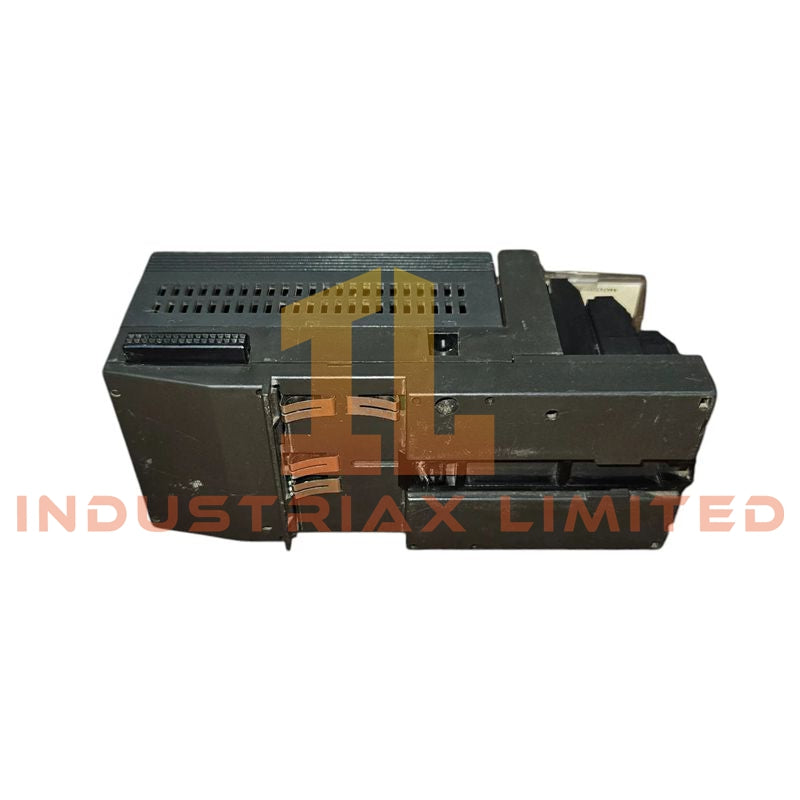

The IC200ALG263 is a high-resolution analog voltage input module engineered for the GE VersaMax I/O platform. It is designed for precise acquisition of multiple voltage signals in compact control systems where channel density and measurement accuracy are critical.
The module provides 15 single-ended input channels capable of measuring bipolar voltage signals up to ±10 VDC. It is optimized for direct integration with sensors, instrumentation devices, and process signal transmitters used in industrial monitoring and control environments.
All operating power is supplied through the VersaMax backplane, eliminating the need for external module power wiring and simplifying system integration.
Core System Data
-
Model: IC200ALG263
-
Series: GE Fanuc / Emerson VersaMax I/O
-
Module Type: Analog Voltage Input Module
-
Total Channels: 15 single-ended inputs
-
Input Grouping: Single 15-channel bank
-
Installation: VersaMax I/O backplane carrier
-
Power Supply: Backplane powered (no external supply required)
Analog Input Specifications
-
Signal Type: DC voltage
-
Input Range: −10 V to +10 V DC
-
Input Impedance: ≥100 kΩ
-
Resolution: 15-bit high-resolution conversion
-
Effective Step Size: ~0.3125 mV (bipolar operation)
-
Update Time: 7.5 ms per scan cycle
Measurement Performance
-
High channel density for multi-point voltage acquisition
-
Fast conversion suitable for dynamic signal monitoring
-
Stable measurement across full industrial temperature range
-
Designed for low drift and high repeatability in continuous operation
Electrical Characteristics
-
Backplane Power Only (no field-side supply required)
-
Low internal power consumption via PLC rack interface
-
Integrated A/D conversion electronics with synchronized sampling
-
Built-in diagnostics for module health monitoring
Diagnostics & Indicators
-
OK status LED for module health
-
Automatic self-test at power-up
-
Continuous runtime diagnostics for signal integrity and module communication
Isolation & Architecture
-
Single group architecture (no channel-to-channel isolation)
-
No group-to-group isolation
-
Designed for systems where inputs share a common reference potential
-
Recommended for electrically stable sensor environments
Environmental Specifications
-
Operating Temperature: 0 °C to 60 °C
-
Storage Temperature: −40 °C to 85 °C
-
Relative Humidity: 5%–95% non-condensing
-
Installation Environment: Enclosed industrial control cabinet (IP20)
Mechanical Data
Typical Applications
-
Multi-channel voltage signal monitoring
-
Industrial sensor data acquisition systems
-
Process instrumentation and measurement loops
-
Utility monitoring and SCADA systems
-
OEM machine signal integration
FAQ
Q1: Does this module support current input signals?
No. The IC200ALG263 is designed specifically for voltage inputs only (±10 VDC).
Q2: Does it require external power?
No external supply is required; it is powered directly from the VersaMax backplane.
Q3: Is channel isolation available?
No, all channels share a common reference design.
