Product Description

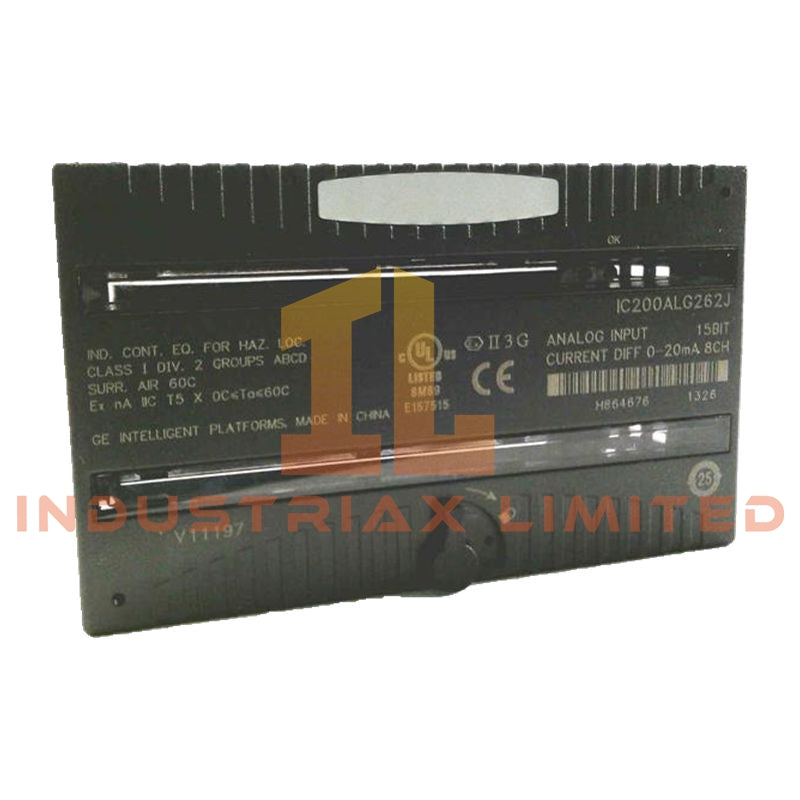

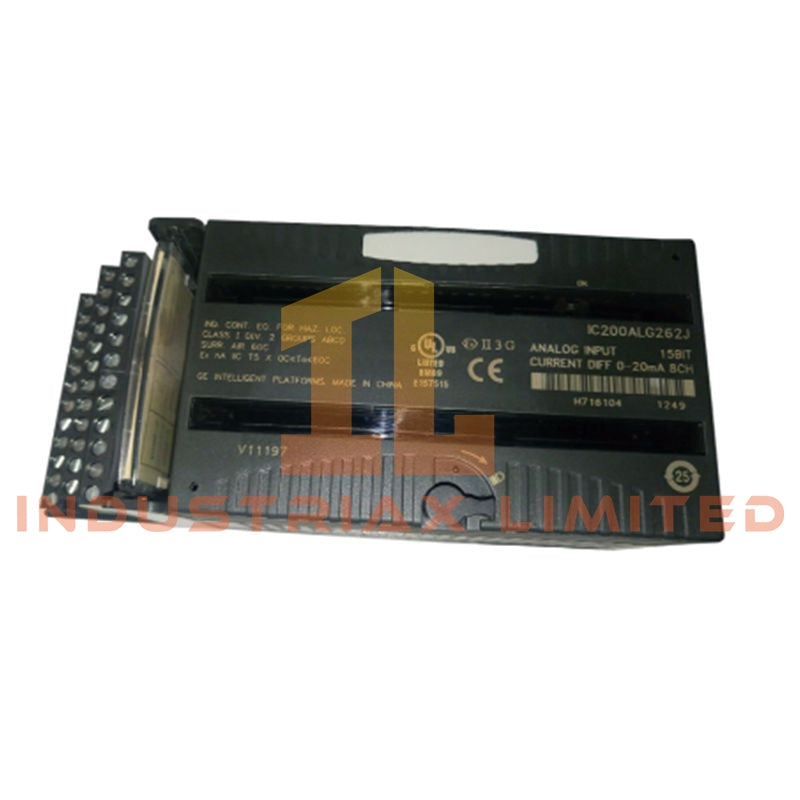

The IC200ALG262 is a precision analog current input module designed for the GE Fanuc VersaMax PLC platform. It provides eight differential input channels optimized for current loop signals, ensuring stable and accurate measurement in electrically noisy industrial environments.

By using differential signal acquisition, this module significantly improves immunity to electromagnetic interference compared to single-ended designs. It is particularly well suited for applications where signal integrity is critical, such as process industries and power systems.

The module supports both 4–20 mA and 0–20 mA input ranges, selectable via hardware configuration. It integrates directly into VersaMax I/O stations and supports hot insertion, allowing replacement without powering down the system.

Key Features

• Eight differential analog current input channels

• Designed for 0–20 mA and 4–20 mA signal loops

• High-resolution 15-bit conversion for precise measurement

• Excellent noise rejection through differential input architecture

• Open-circuit detection in 4–20 mA applications

• Hot-swappable design for maintenance without system interruption

• Built-in diagnostics for signal and module status monitoring

• LED indicators for operational and power conditions

• Rugged construction for industrial environments

Technical Specifications

General Information

• Manufacturer: GE Fanuc / Emerson Automation

• Series: VersaMax

• Product Type: Analog Current Input Module

• Model: IC200ALG262

Input Configuration

• Number of Channels: 8 (differential)

• Channel Grouping: Single group

• Input Type: Current only

Input Ranges

• 4–20 mA (default)

• 0–20 mA (jumper selectable)

Performance

• Resolution: 15-bit

• 0.5 µA/count (4–20 mA)

• 0.625 µA/count (0–20 mA)

• Update Time: Up to 7.5 ms per module

• Accuracy:

• ±0.3% typical

• ±1% maximum (0–60°C)

Electrical Characteristics

• Input Impedance: 100 Ω

• Common Mode Range: −10 V to +10 V

• Common Mode Rejection Ratio: 70 dB

Diagnostics

• Open-wire detection (available in 4–20 mA mode)

• Over-range and under-range monitoring

• Internal power loss detection

• Fault reporting via CPU or NIU

Isolation & Protection

• Isolation Voltage:

• 250 VAC continuous

• 1500 VAC for 1 minute

• Isolation Type: Field inputs to logic and ground

• Differential channel design enhances noise immunity

• No individual channel isolation (shared group architecture)

Power Requirements

• Backplane Supply: 5 VDC

• Current Consumption: Up to 200 mA

• External Power: Not required for module operation

Environmental Specifications

• Operating Temperature: 0°C to +60°C (standard rating)

• Storage Temperature: −40°C to +85°C

• Humidity: Up to 95% non-condensing

• Protection Rating: IP20

Mechanical Data

• Dimensions (W × H × D): 110 × 66.8 × 50 mm

• Mounting: VersaMax baseplate

• Weight: 0.5 kg

Applications

The IC200ALG262 is widely used in environments where accurate current loop measurement is required under challenging conditions:

• Process industries (pressure, flow, level transmitters)

• Power generation and distribution systems

• Oil & gas and petrochemical facilities

• Environmental and water treatment monitoring

• Industrial automation with high EMI exposure

FAQ

Q: What is the advantage of differential inputs compared to single-ended inputs?
A: Differential inputs significantly reduce noise and interference, making them ideal for long cable runs and harsh industrial environments.

Q: Can the module detect sensor faults?
A: Yes, it supports open-wire detection in 4–20 mA mode along with over-range and under-range diagnostics.

Q: Is it possible to replace the module while the system is running?
A: Yes, the module supports hot-swapping when used in compatible VersaMax systems.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
