Product Description

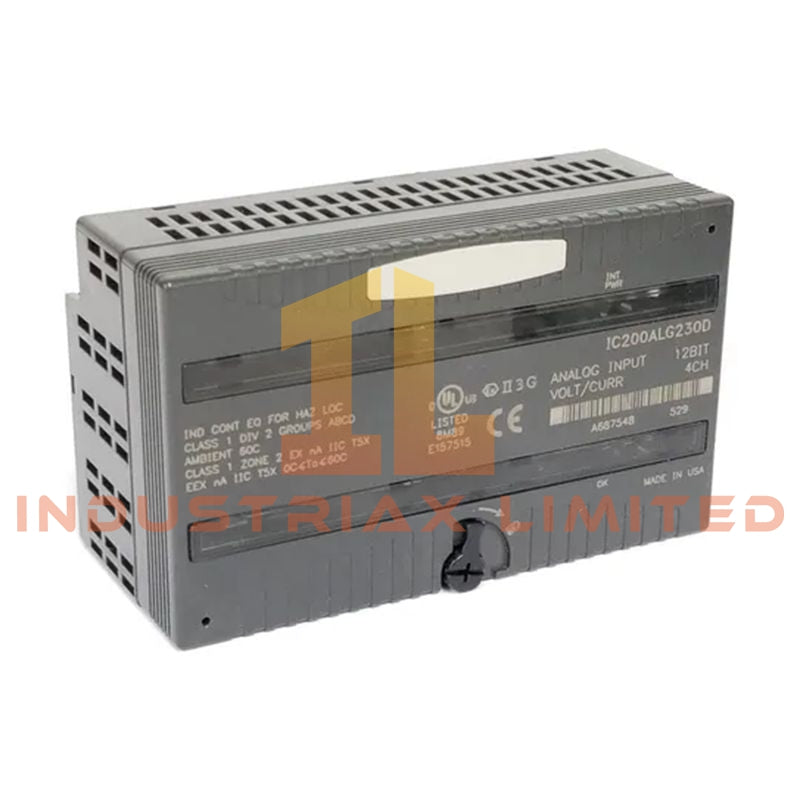

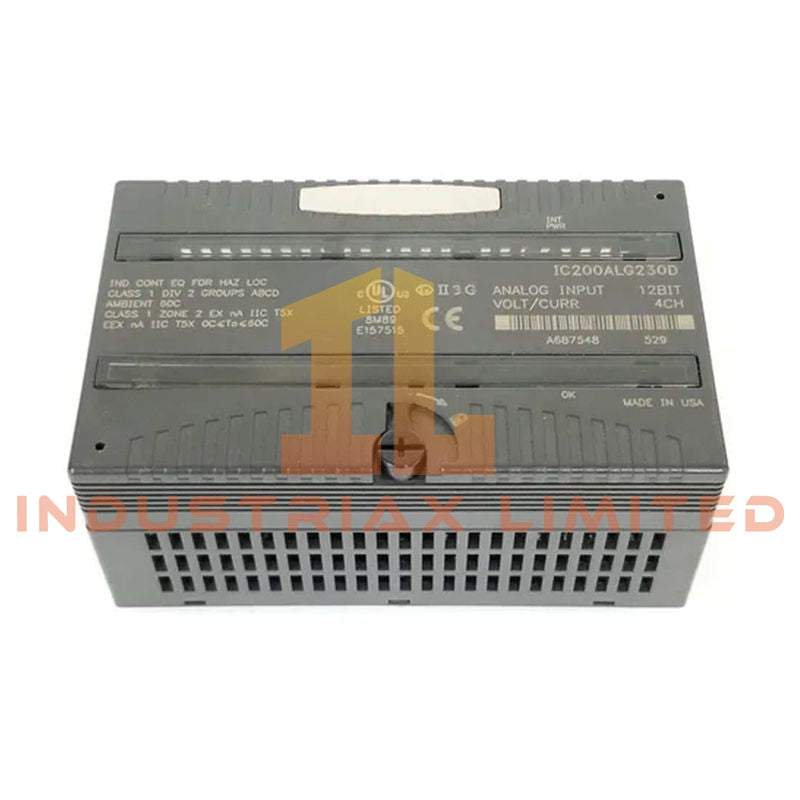

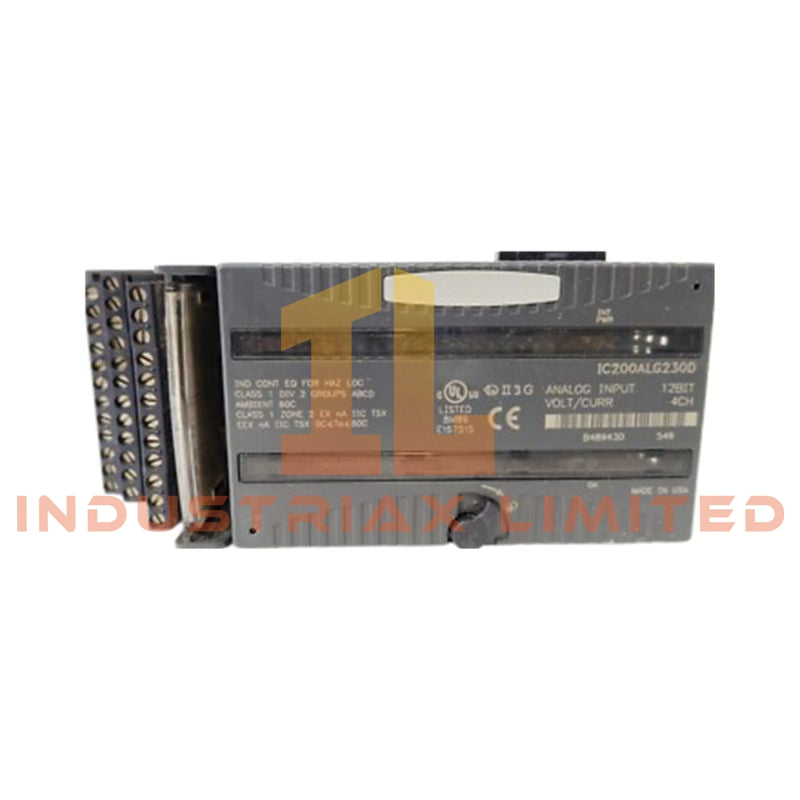

The IC200ALG230 from GE Fanuc / Emerson is a 4-channel analog input module designed for the VersaMax PLC platform. It provides precise 12-bit measurement for industrial voltage or current signals and supports flexible single-ended input configurations, making it ideal for process monitoring, control, and automation tasks.
Channels can be independently set for voltage (±10 VDC default or 0–10 VDC selectable) or current mode (4–20 mA), allowing adaptation to a wide range of field devices. The module is powered entirely from the VersaMax backplane, requiring no external power, and includes LED indicators for backplane status (OK) and internally generated field power (INT PWR).
Technical Specifications
Channels & Input
-
Number of channels: 4 analog inputs
-
Input type: Single-ended, one common group
-
Resolution: 12-bit (4096 counts)
-
Voltage mode: ±10 VDC (bipolar) or 0–10 VDC (unipolar jumper-selectable)
-
Current mode: 4–20 mA
-
Input impedance: 126 kΩ (voltage), 200 Ω (current)
Accuracy & Performance
-
Voltage/current accuracy: ±0.3% typical @ 25°C, ±0.5% max @ 25°C, ±1% max 0–60°C
-
Filter response: 5.0 ms
-
Update rate: 0.4 ms per module
-
Crosstalk rejection: ≥30 dB
-
Common-mode voltage: 0 V
Power & Isolation
-
Backplane current draw: 125 mA @ 5 VDC
-
External power: Not required
-
Isolation: 250 VAC continuous (input to logic), withstand 1500 VAC for 1 min
Diagnostics & Indicators
-
LED indicators: OK (backplane power), INT PWR (internal field power)
-
Module error reaction: Hold last state or switch to predefined value
-
Detects loss of internal power automatically
Configuration
-
Jumper-selectable: Voltage/current mode, bipolar/unipolar selection
-
Supports 2-row or 3-row terminal block carriers
Mechanical & Environmental
-
Weight: 0.31 lbs
-
Mounting: VersaMax backplane
-
Operating temperature: 0°C to 60°C
-
Storage temperature: –40°C to +85°C
Applications
-
Industrial process monitoring
-
Analog signal acquisition for automation systems
-
Control loops in manufacturing and utilities
FAQ
Q: Can I switch between voltage and current modes in the field?
A: Yes, IC200ALG230 allows jumper selection for voltage or current input per channel.
Q: Does it require external power for operation?
A: No, the module draws all necessary power from the VersaMax backplane.
Q: How precise is the analog input?
A: The module provides 12-bit resolution with ±0.3% typical accuracy at 25°C.
