Description

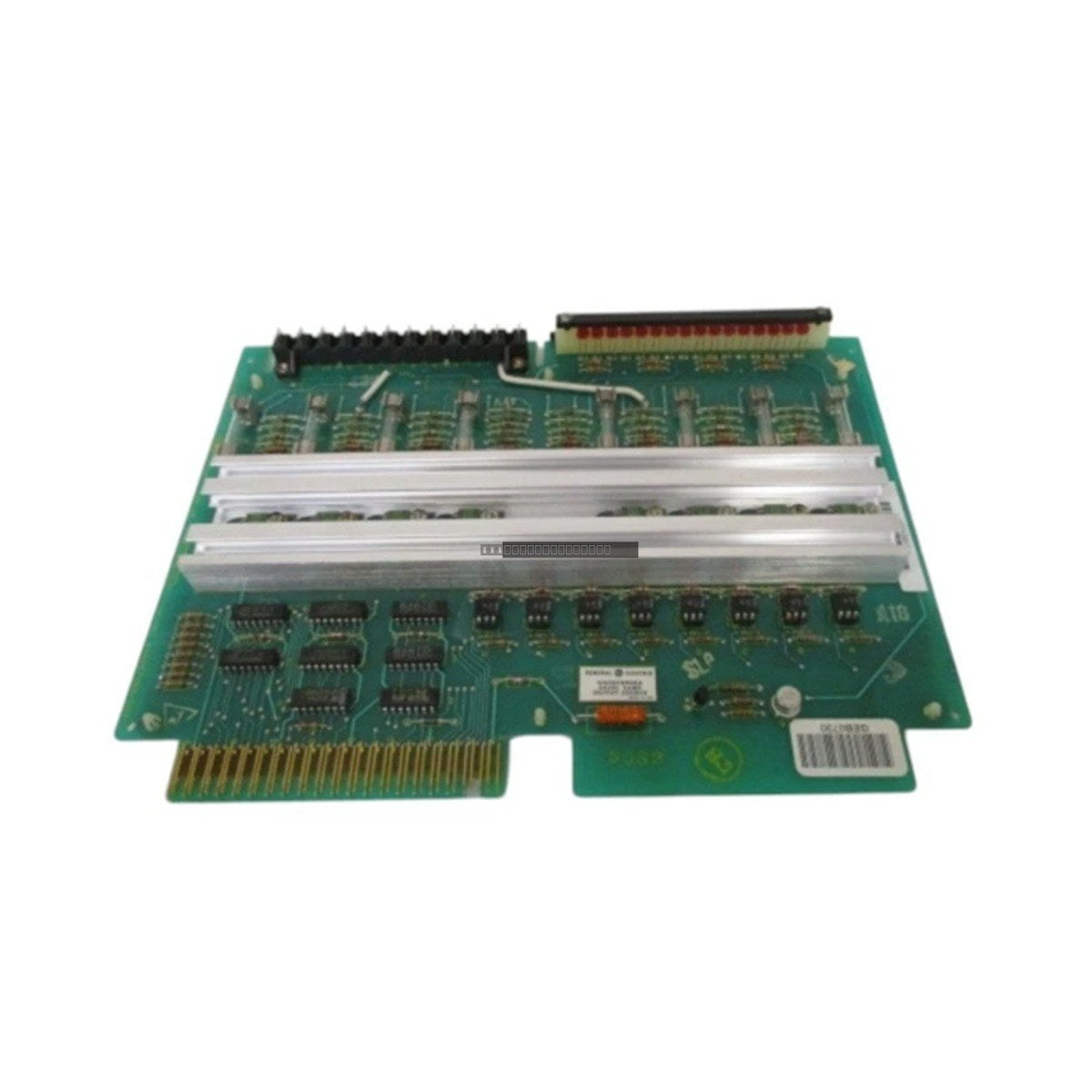

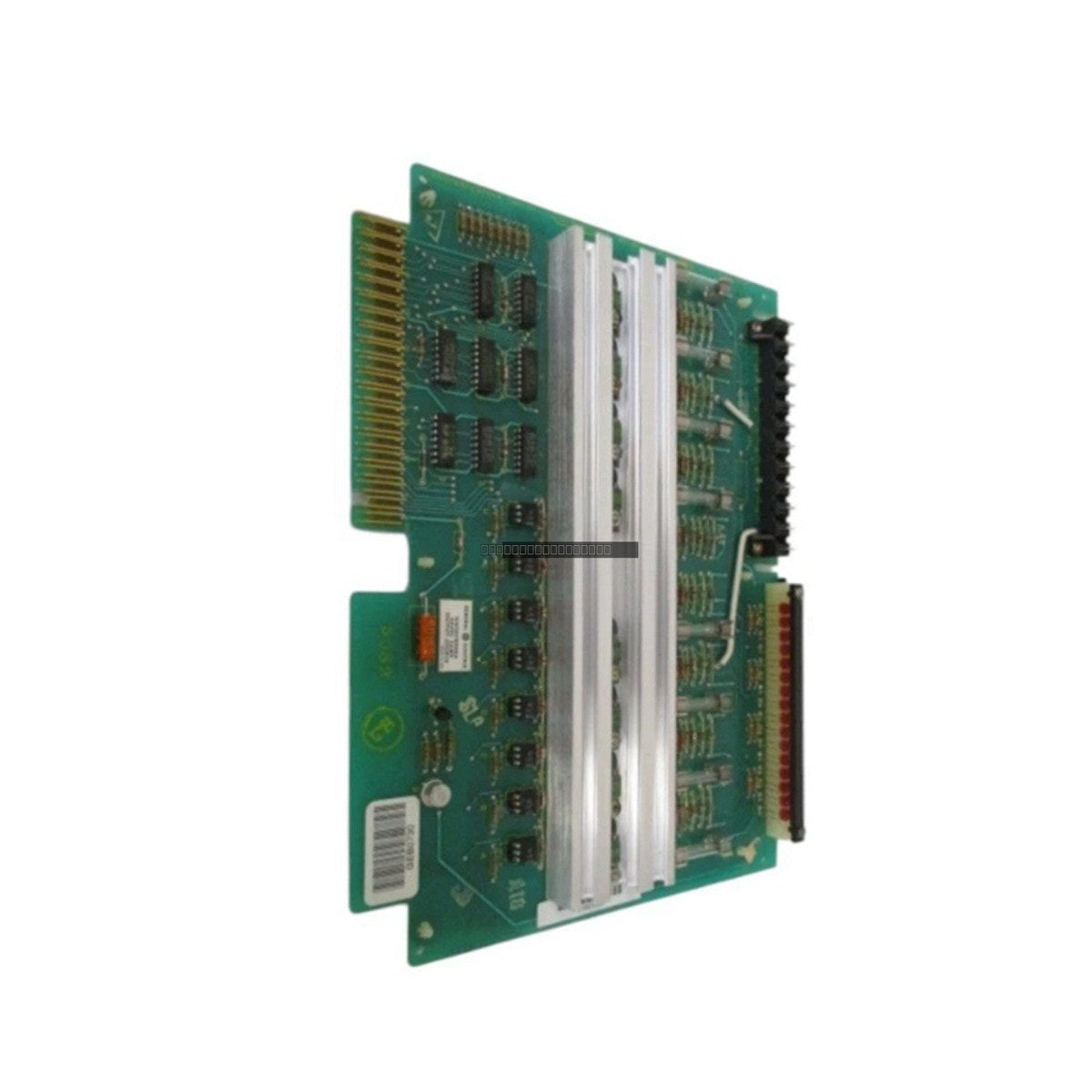

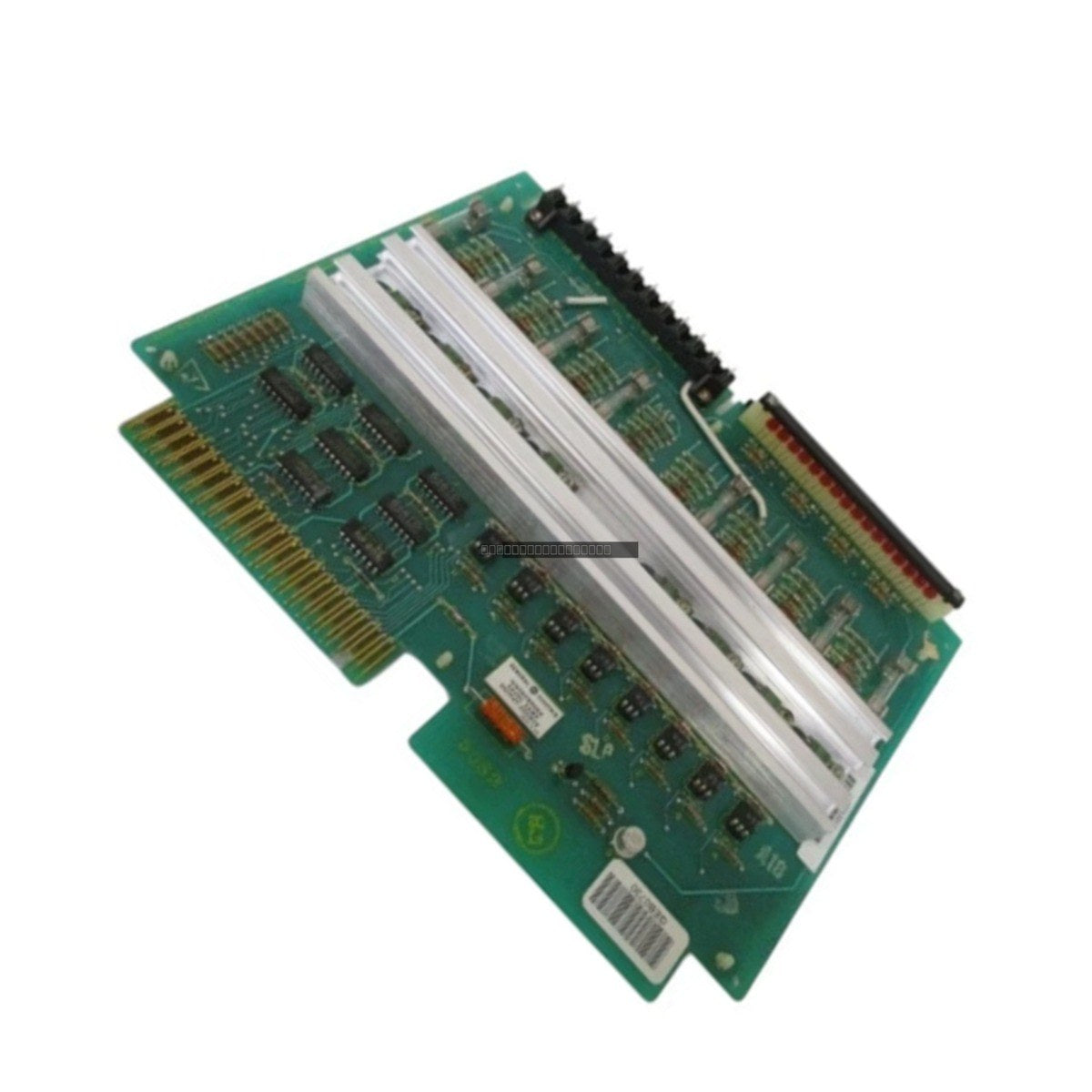

The GE Fanuc IC600YB908 is a high-performance discrete output module designed for the Series Six PLC platform. This module features eight output channels, providing reliable control for field actuators in complex industrial automation environments. Engineered for durability and rapid switching, the IC600YB908 is suitable for demanding applications where low latency and high current-handling capabilities are essential for maintaining process integrity.
Features
- Eight discrete output channels for versatile field device control.
- Supports a nominal supply voltage of 24 VDC.
- High inrush current capacity of up to 7 A for inductive load compatibility.
- Steady-state current rating of 2 A per output point.
- Rapid response time of 1 ms for efficient signal processing.
- Designed for integration with the IC600FP908B faceplate within Series Six chassis systems.
Applications
This module is primarily utilized in large-scale manufacturing and automated processing facilities that rely on the legacy GE Fanuc Series Six PLC architecture. It is ideal for controlling actuators, solenoids, and other high-current field devices in continuous-duty industrial environments.
Technical Specifications
| Model |
IC600YB908 |
| Brand |
GE Fanuc |
| Series |
Series Six |
| Module Type |
Output Module |
| Number of Outputs |
8 |
| Supply Voltage |
24 VDC |
| Max Inrush Current |
7 A |
| Max Steady-State Current |
2 A per point |
| Total Current Capacity |
16 A (0-40 degC); 8 A (60 degC) |
| Response Time |
1 ms |
| Max ON-State Voltage Drop |
2.25 V |
| Max Current Leakage |
5 mA at 60 degC |
| Operating Temperature |
0 to 60 degC |
| Humidity Tolerance |
5 to 95 percent (non-condensing) |
Installation Guidelines
- Ensure the PLC system power is disconnected before installing or removing the module from the chassis.
- Verify that the module is correctly seated in the Series Six rack to ensure proper backplane communication.
- Use the appropriate IC600FP908B faceplate for secure mounting and cable management.
- Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range, particularly when handling high current loads.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the circuit board to prevent component damage.
- Ensure all field wiring is properly shielded and routed away from high-EMI sources to maintain signal integrity.
FAQ
What is the maximum current capacity of the IC600YB908?
The total current capacity is thermally dependent. It supports up to 16 A in environments between 0 and 40 degC, and 8 A at the maximum ambient temperature of 60 degC.
Is this module compatible with all Series Six systems?
The IC600YB908 is designed for the Series Six PLC platform and is intended for use with the IC600FP908B faceplate. Please verify your specific chassis configuration before installation.
