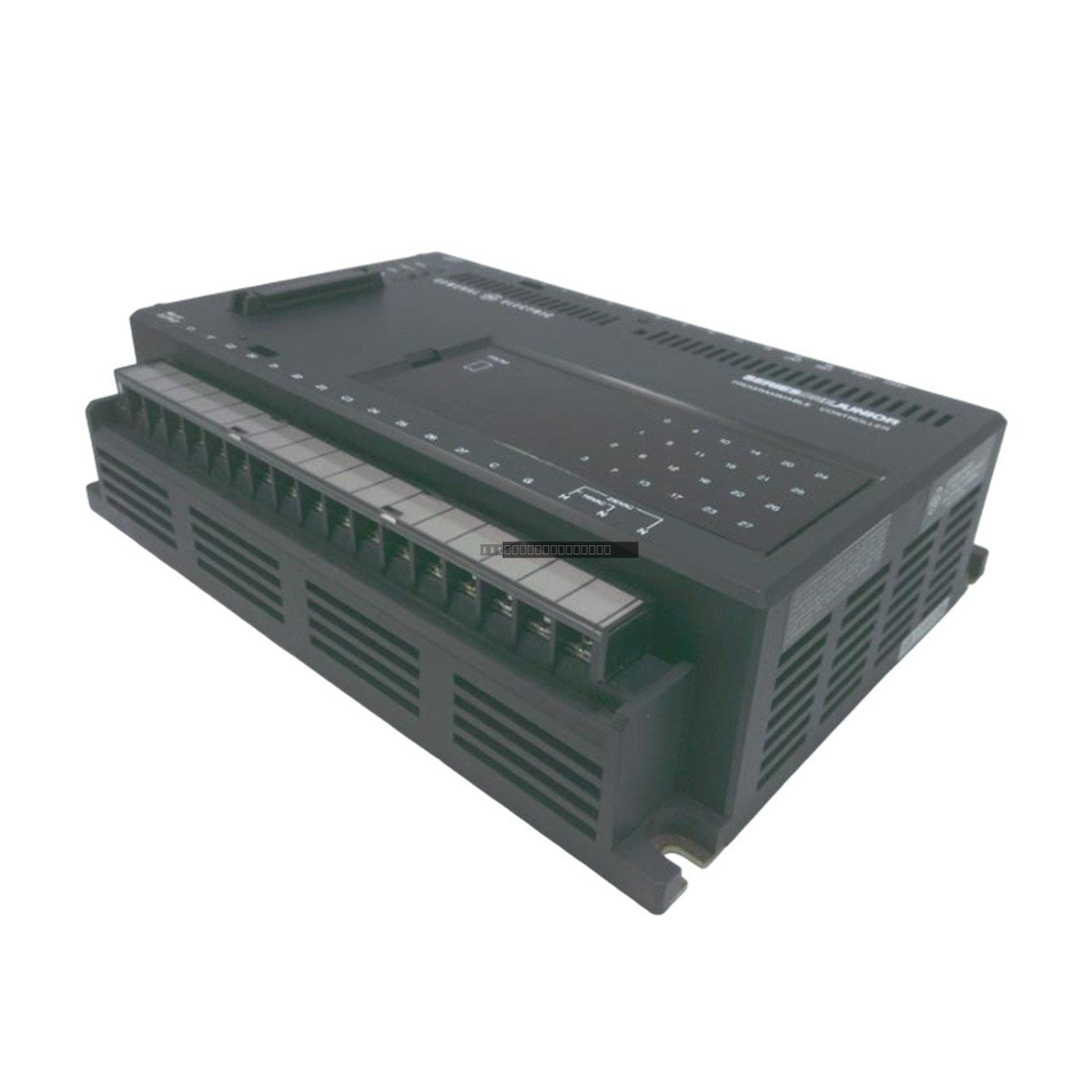

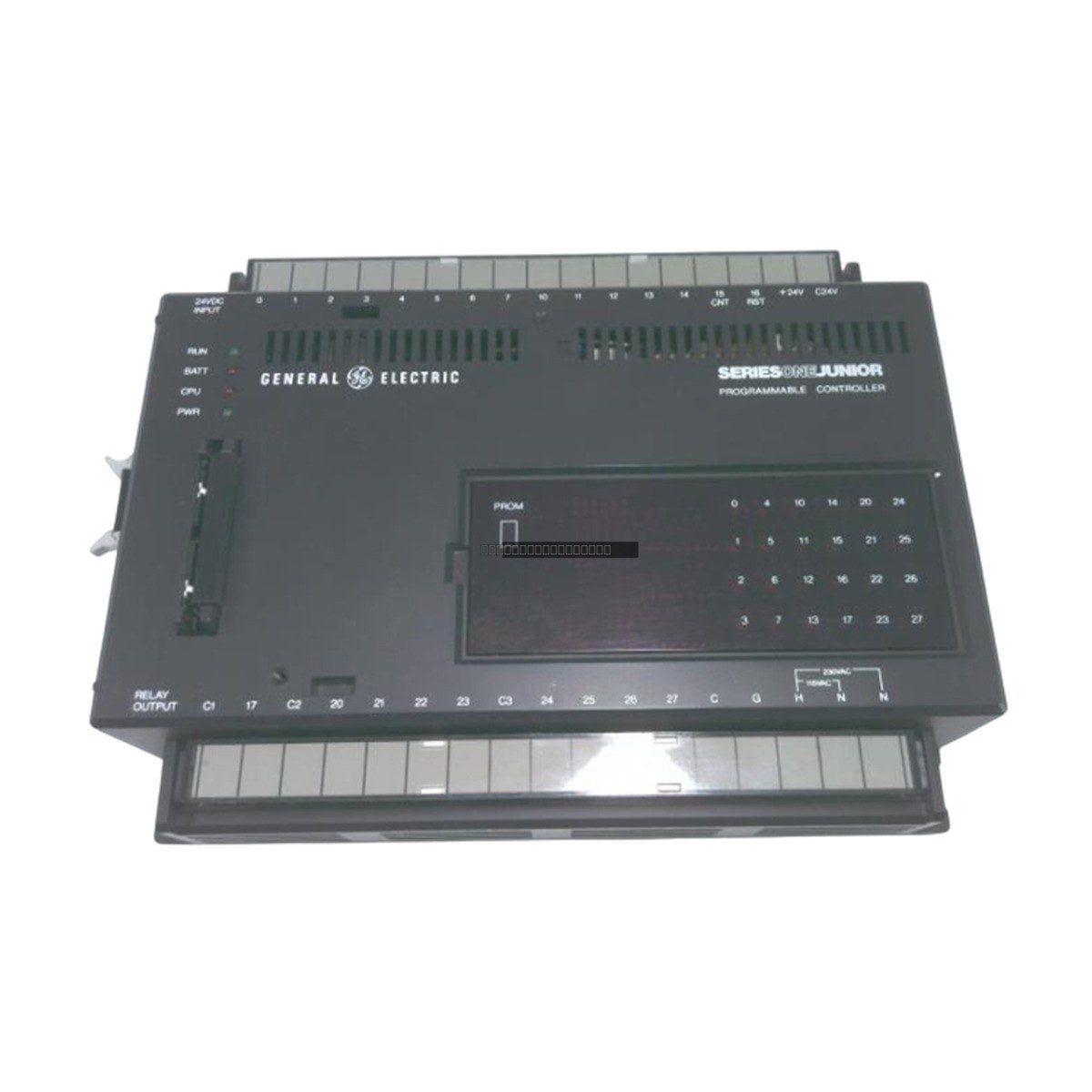

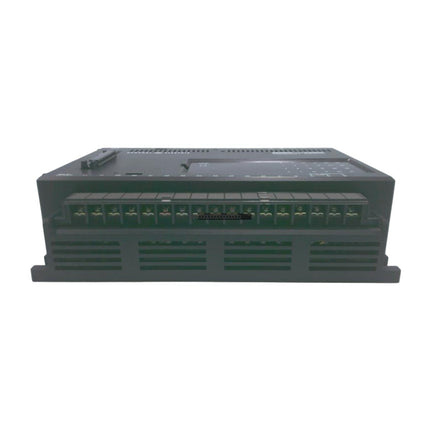

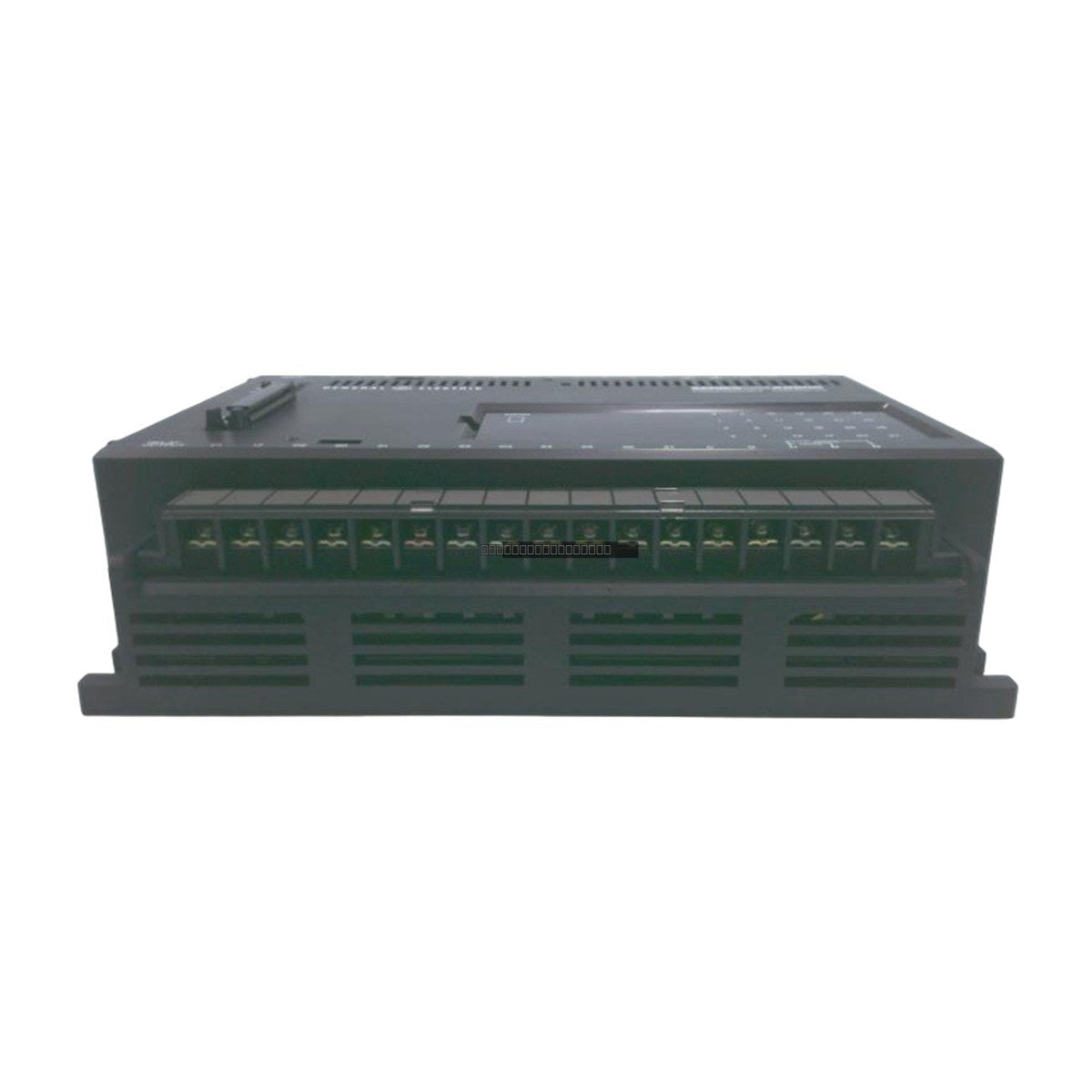

The GE Fanuc IC609SJR121 is a compact programmable logic controller (PLC) from the legacy Series One Junior product family. This main controller provides integrated logic processing, featuring 24 VDC sink inputs and rugged 115/230 VAC relay outputs designed to command field machinery. Engineered for localized control infrastructure, this controller is suitable for heavy industries such as mining, oil refining, and material handling systems. The unit supports expansion via the IC609EXP121 module, allowing for scalable I/O requirements. Its modular layout and embedded hardware diagnostic indicators facilitate efficient maintenance and loop checks, helping to minimize plant downtime during troubleshooting.
Features
- Integrated logic processing for localized control applications.
- 24 VDC sink input configuration.
- 115/230 VAC relay outputs for high-voltage field device control.
- Supports expansion with the IC609EXP121 I/O expansion unit.
- Integrated overcurrent protection with one 2 A miniature fuse and two 5 A normal blow fuses.
- Diagnostic status indicators and integrated display matrix for system monitoring.
- Communication port for connection to external programming terminals.
Applications
The IC609SJR121 is designed for use in industrial automation environments, including:
- Material handling and conveyor control systems.
- Mining and mineral processing equipment.
- Oil and gas refining control loops.
- Small-scale localized machine automation.
Technical Specifications
| Model |
IC609SJR121 |
| Brand |
GE Fanuc |
| Series |
Series One Junior |
| Input Voltage |
24 VDC (Sink) |
| Output Rating |
115/230 VAC (Relay) |
| Power Supply |
115 VAC |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Humidity |
5 to 95 percent (Non-Condensing) |
Installation Guidelines
- Ensure the power supply is disconnected before installing or removing the module.
- Mount the unit in a clean, dry, and vibration-free environment, ensuring adequate ventilation for heat dissipation.
- Use shielded cabling for I/O signals to minimize electromagnetic interference (EMI).
- Verify that the input/output wiring matches the terminal block designations to prevent damage to the relay outputs or input circuits.
- Ensure proper grounding of the chassis to the system ground bus.
- Handle with standard ESD precautions to prevent damage to internal circuitry.
FAQ
Is this module compatible with modern GE Fanuc software?
The Series One Junior is a legacy product. Compatibility with modern programming software may require specialized legacy hardware interfaces or conversion tools.
Can the I/O be expanded?
Yes, this unit is designed to be compatible with the IC609EXP121 expansion module to increase the total I/O count.
What is the purpose of the internal fuses?
The internal fuses provide overcurrent protection for the circuitry. Always replace with the specified 2 A and 5 A ratings to maintain safety and operational integrity.
