Description

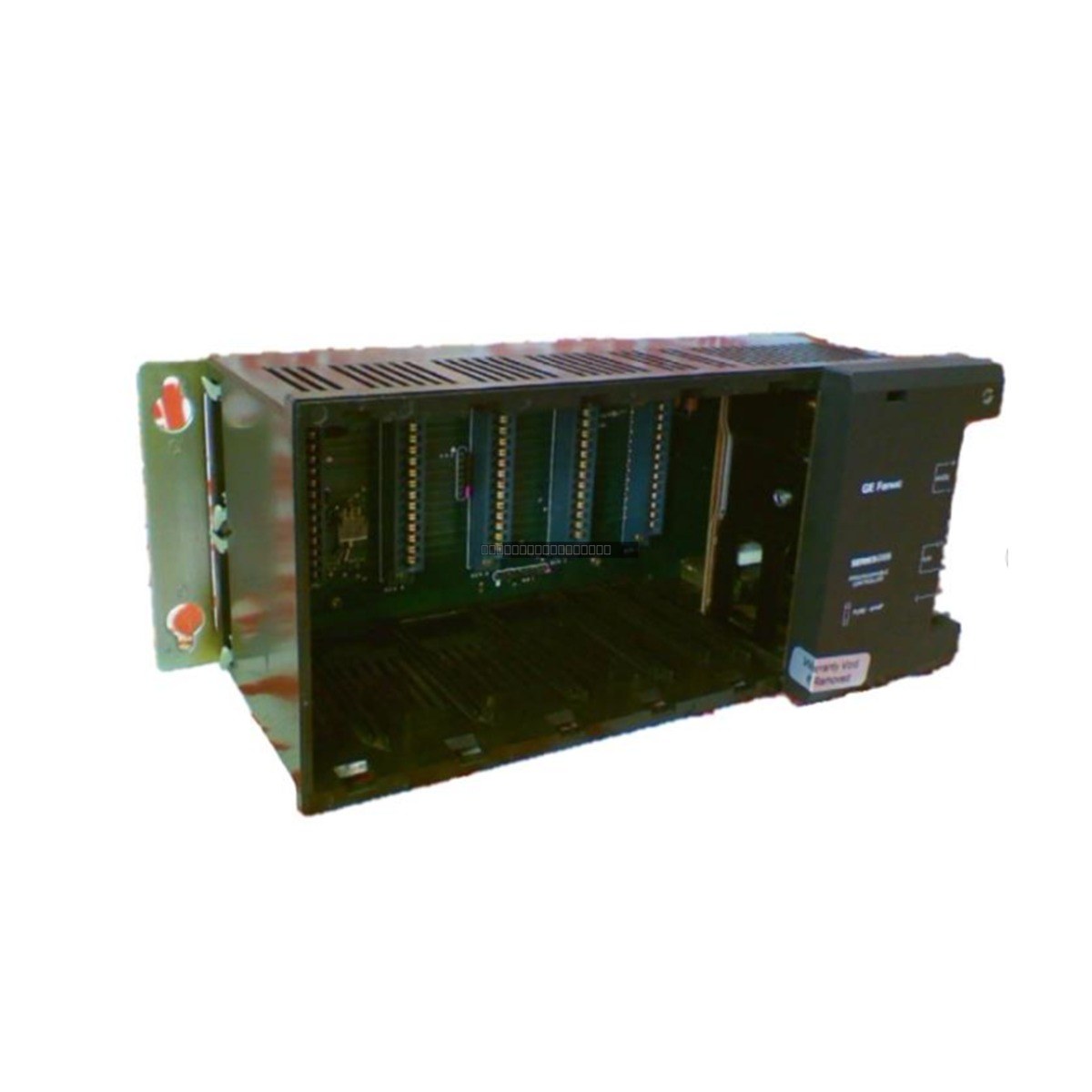

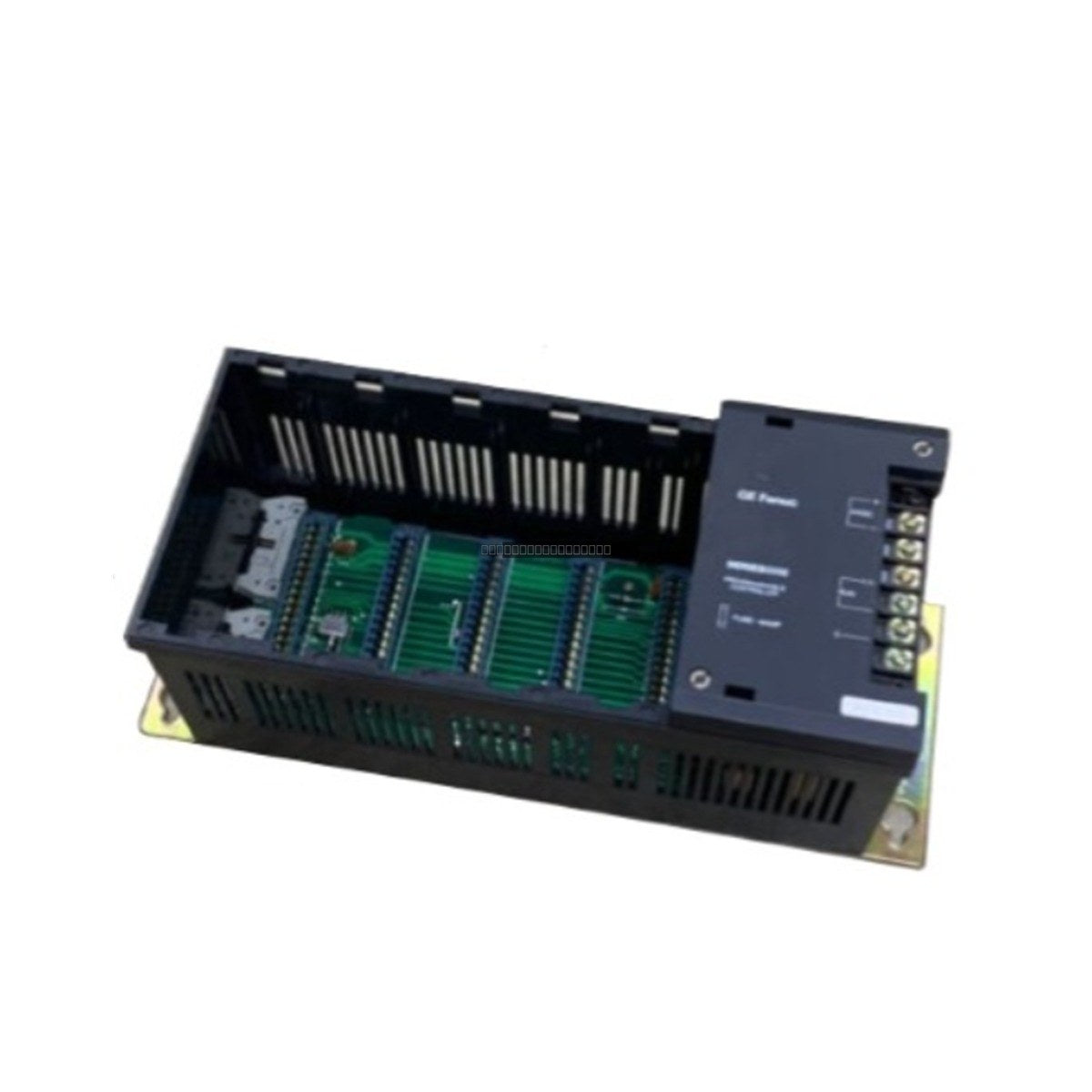

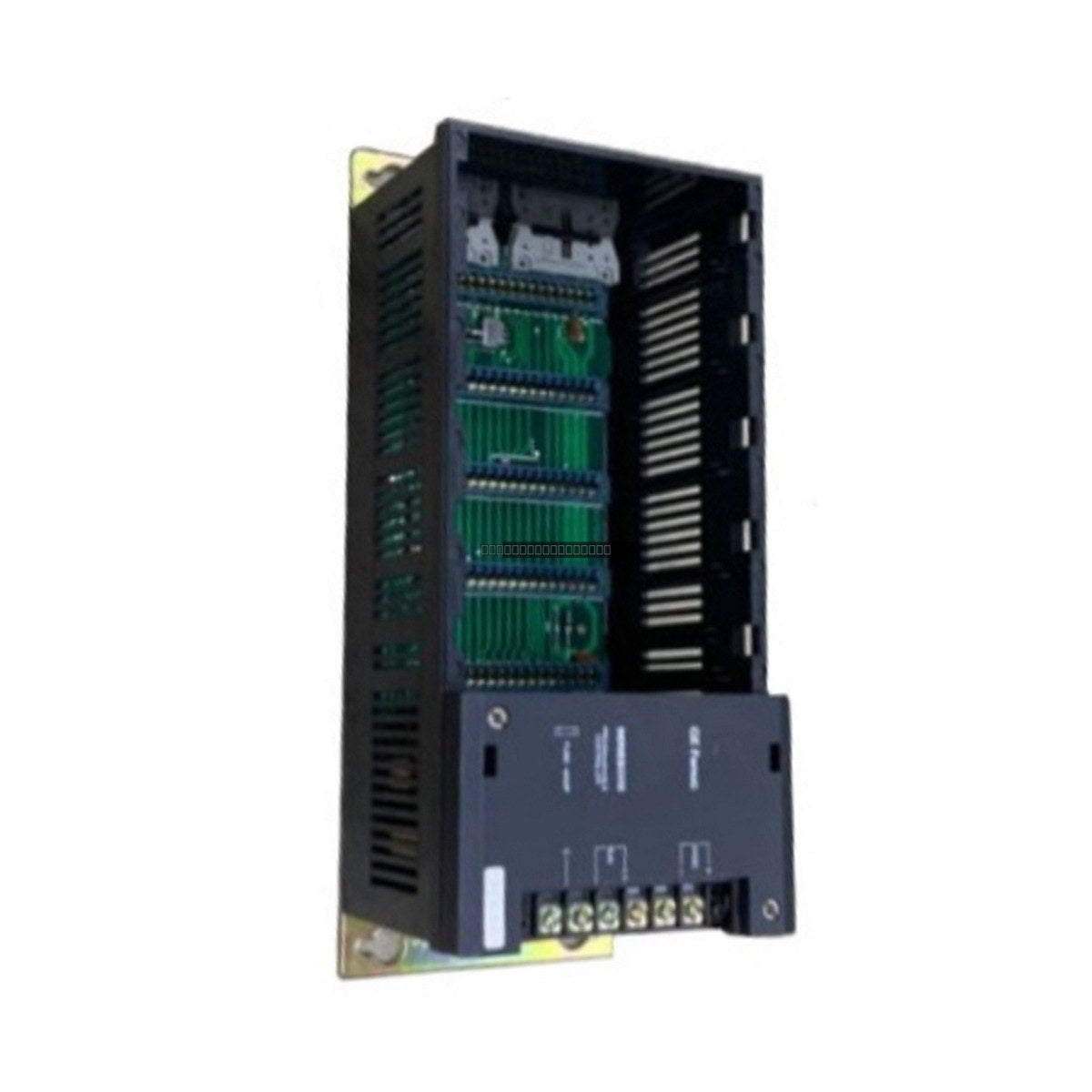

The GE Fanuc IC610CHS114 is a 5-slot rack assembly designed specifically for the Series One PLC family. This chassis serves as the primary mounting and communication backplane for the system, facilitating the integration of a CPU module and up to four I/O modules. It is engineered to provide a stable electrical foundation for industrial automation tasks, including machine control and assembly line management. By utilizing this rack, users benefit from a modular design that simplifies maintenance, allows for rapid module swapping, and supports efficient system expansion.
Features
- 5-slot configuration: Supports one CPU module and four additional I/O modules.
- Integrated power distribution: Designed for 24 VDC operation with dedicated terminals for power input.
- System monitoring: Includes two dedicated RUN relay terminals for operational status feedback.
- Scalable architecture: Features an expansion rack terminal to allow for system growth and increased I/O capacity.
- Integrated control: Equipped with a 2-position switch for operational mode management.
- Robust construction: Designed for reliable signal propagation and secure module seating in industrial environments.
Applications
This rack is widely utilized in legacy GE Fanuc Series One automation systems. It is suitable for applications requiring modular PLC control, such as automated manufacturing, material handling, and small-to-medium scale machine tool automation.
Technical Specifications
| Model |
IC610CHS114 |
| Brand |
GE Fanuc |
| Product Line |
Series One |
| Slot Capacity |
5 Slots (1 CPU, 4 I/O) |
| Voltage Rating |
24 VDC |
| Status Monitoring |
2 x RUN relay terminals |
| Expansion |
Dedicated expansion terminal |
| Weight |
0.91 kg |
Installation Guidelines
- Ensure the rack is mounted securely in a clean, dry, and vibration-dampened industrial enclosure.
- Verify that the power source is disconnected before inserting or removing any CPU or I/O modules to prevent electrical damage.
- Ensure proper grounding of the chassis to the enclosure backplane to minimize electromagnetic interference (EMI).
- Maintain adequate clearance around the rack to allow for proper airflow and heat dissipation.
- Verify that all wiring to the power and relay terminals is properly terminated and secured to prevent intermittent connections.
FAQ
What is the primary function of the IC610CHS114 rack?
The IC610CHS114 acts as the backplane for the Series One PLC, providing the necessary electrical connections and mechanical mounting for the CPU and I/O modules.
Can this rack be expanded?
Yes, the unit includes a dedicated expansion rack terminal, which allows for the connection of additional racks to increase the total I/O capacity of the system.
What is the power requirement for this rack?
This model is designed to operate on a 24 VDC power supply.
