Description
Description

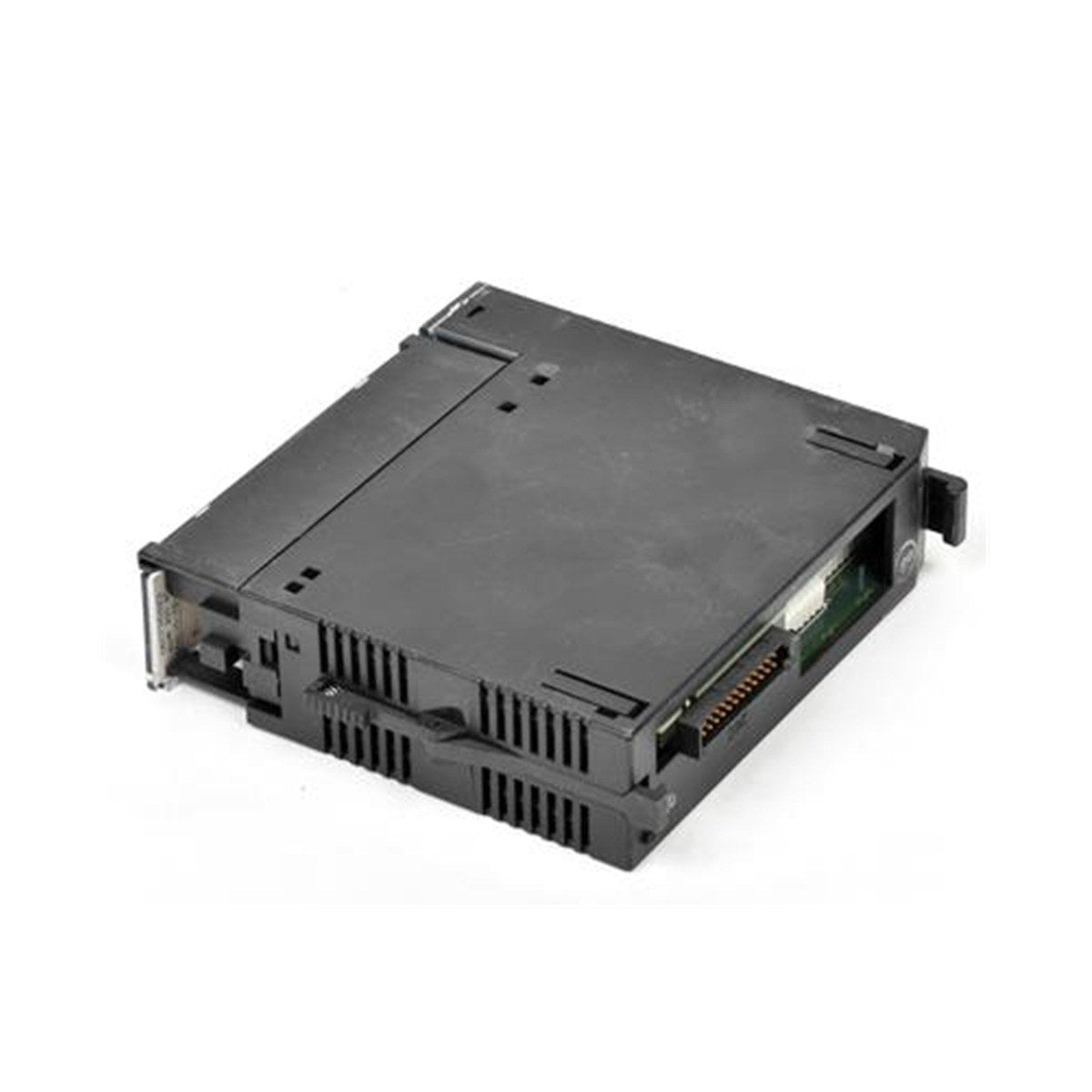

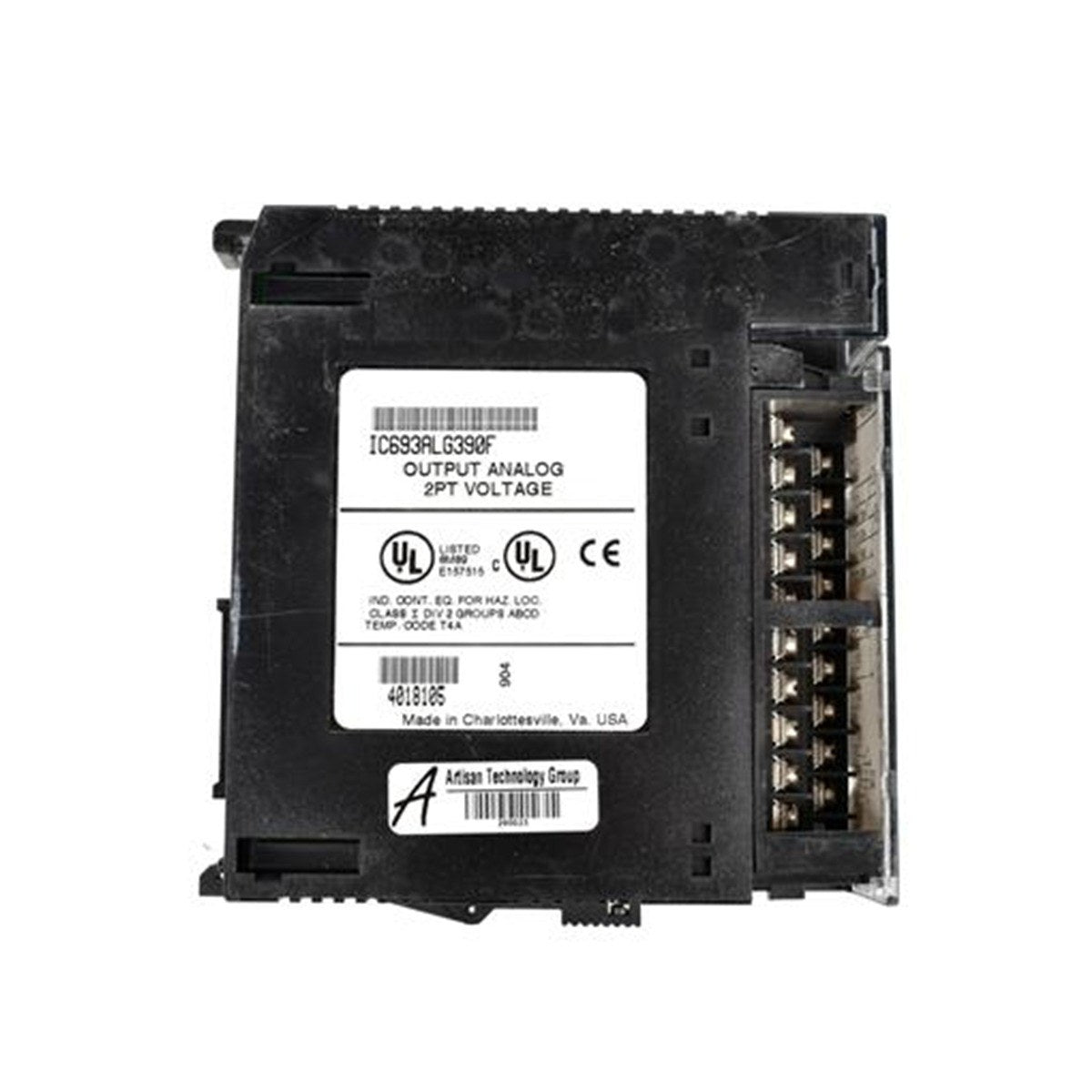

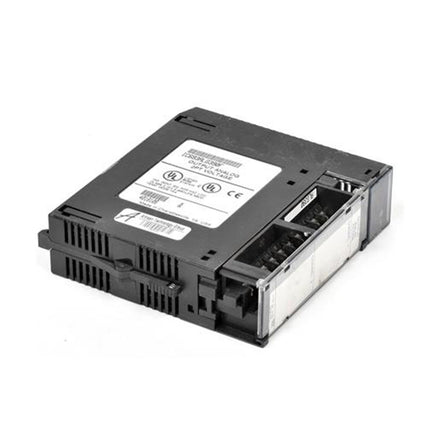

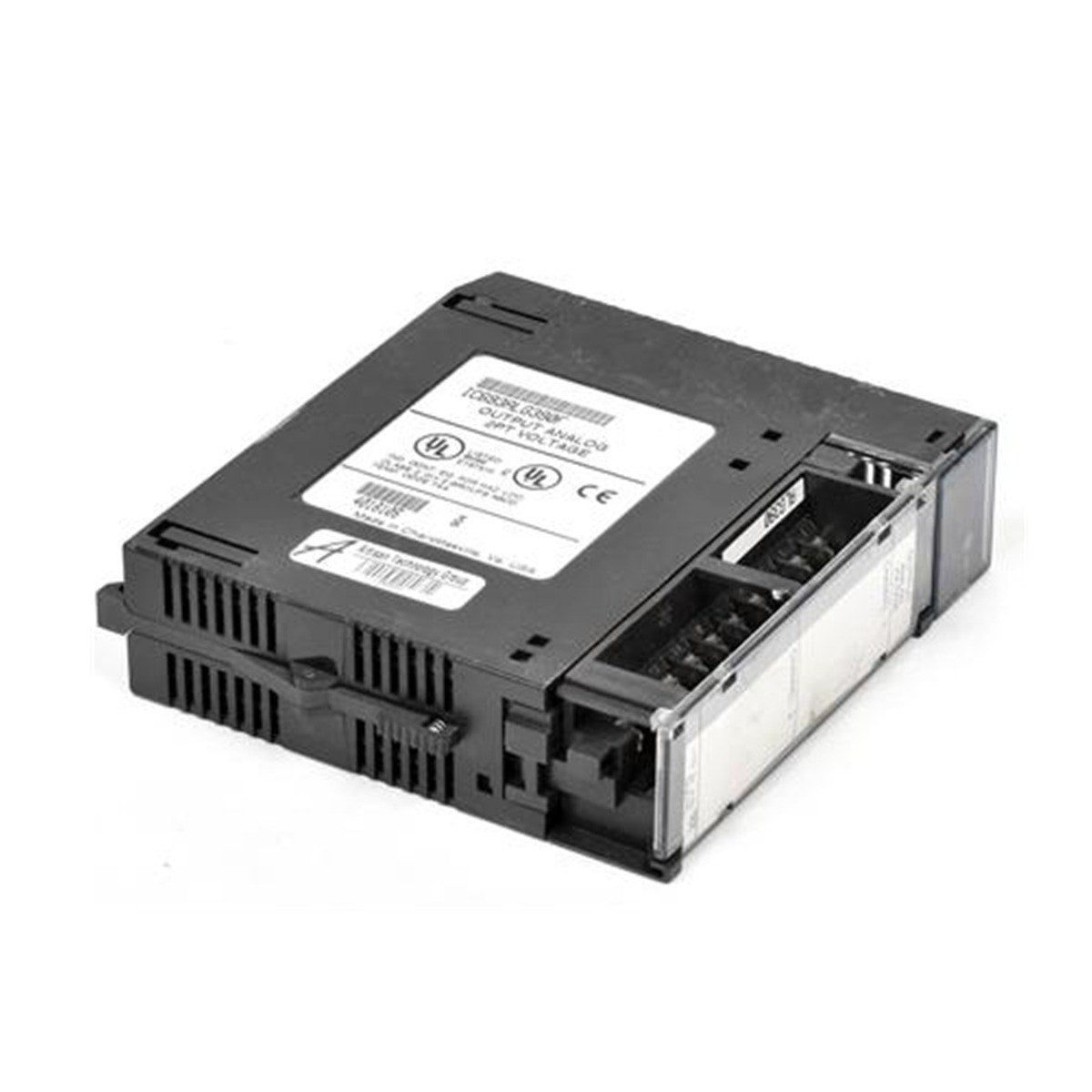

The IC693ALG390 is a high-performance analog output module designed for the General Electric Series 90-30 Programmable Logic Controller (PLC) system. This module provides two independent output channels capable of delivering precise voltage signals in the range of -10 to +10 VDC. It is engineered for demanding industrial environments, facilitating closed-loop control, signal transmission to measuring instruments, and integration with data logging systems.
Features
- Two isolated analog output channels (-10 to +10 VDC).
- High resolution of 2.5 mV per count.
- Absolute accuracy of ± 5 mV at 25 degC.
- 1500 VDC isolation between field wiring and PLC logic circuitry.
- Fast 5 ms update rate.
- Supports hold-last-state or 0V default configuration.
- External 24 VDC power supply input for standby operation.
Applications
This module is typically utilized in process control applications where precise voltage-based control is required, including:
- Closed-loop process control systems.
- Driving analog actuators and valves.
- Interfacing with chart recorders and data acquisition systems.
- Industrial automation test benches.
Technical Specifications
| Model |
IC693ALG390 |
| Output Channels |
2 |
| Output Range |
-10 to +10 VDC |
| Resolution |
2.5 mV |
| Absolute Accuracy |
± 5 mV at 25 degC |
| Update Rate |
5 ms |
| Isolation |
1500 VDC (Field to Logic) |
| External Supply Voltage |
18 to 30 VDC (24 VDC nominal) |
| Output Load Capacitance |
2000 pF maximum |
Installation Guidelines
-
Power Down: Always disconnect power from the PLC rack before inserting or removing the module to prevent electrical damage.
-
Mounting: Ensure the module is fully seated in the 90-30 baseplate slot and secured with the integrated locking screws.
-
Wiring: Use shielded twisted-pair cabling for analog signals to minimize EMI interference. Ensure the shield is grounded at the source end only.
-
Isolation: The module provides 1500V isolation; however, ensure external field wiring is routed away from high-voltage AC power lines.
-
Environment: Maintain ambient operating temperatures between 0 and 60 degC. Ensure adequate ventilation within the enclosure.
FAQ
What is the IC693ALG390?
The GE IC693ALG390 is a 2-channel, isolated analog voltage output module for the Series 90-30 PLC system.
What is the voltage output range?
It provides a bipolar voltage output range of -10 to +10 VDC.
Does this module support current output?
No, this module is strictly for voltage output. For current output applications (e.g., 4-20mA), please refer to alternative modules such as the IC693ALG391 or IC693ALG392.
