Description

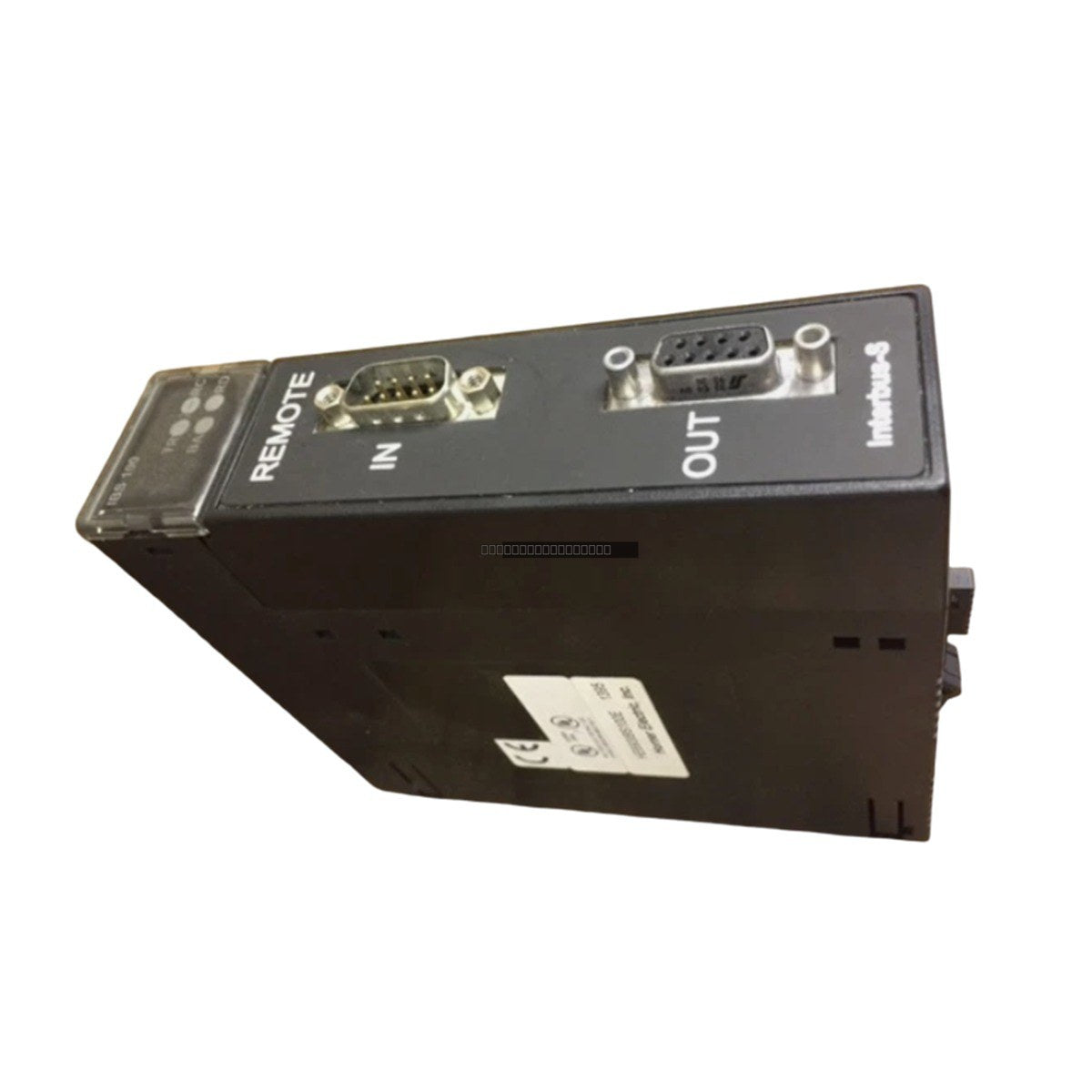

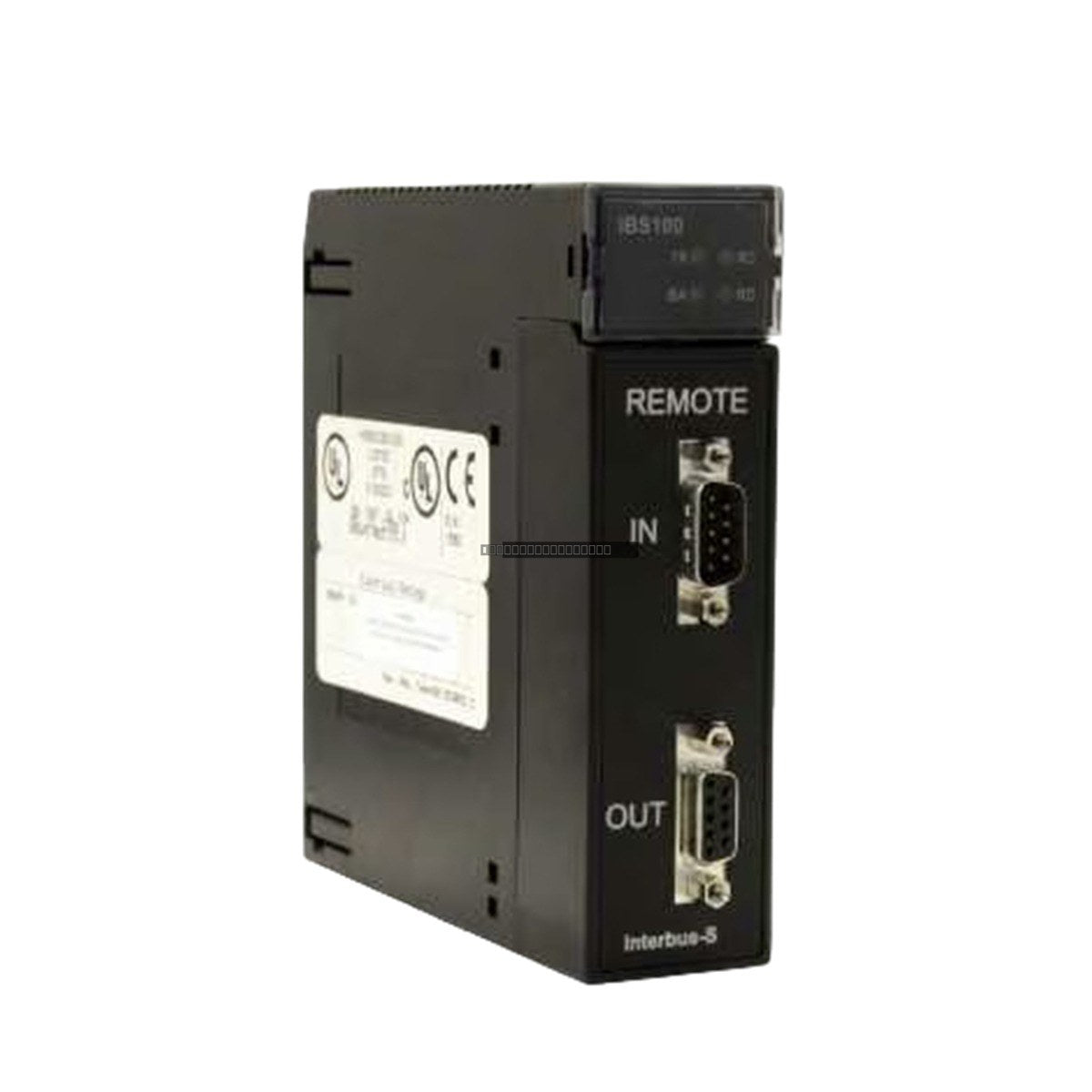

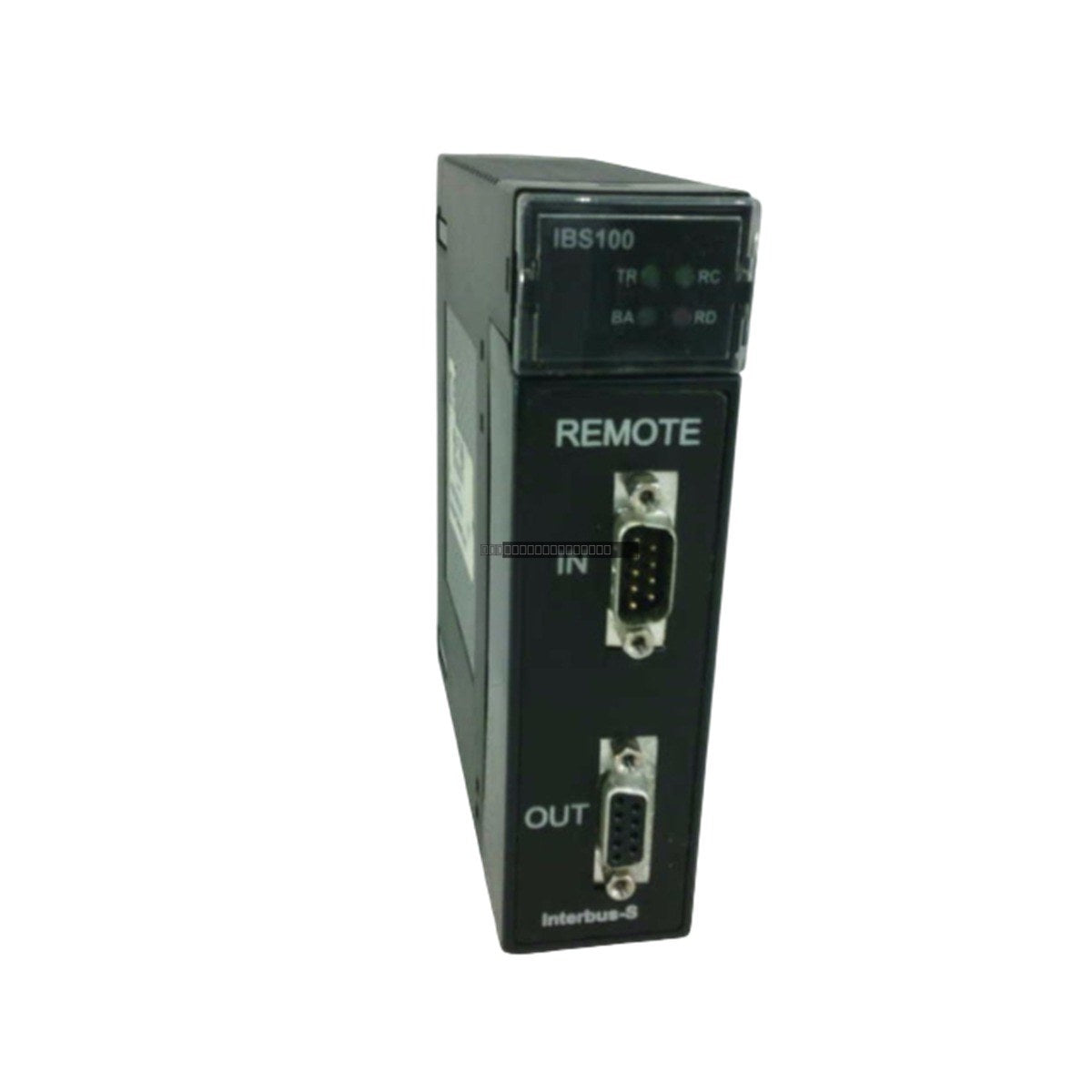

The General Electric HE693IBS100 is a dedicated Interbus-S slave module designed for integration within the Series 90-30 PLC platform. This interface unit allows for seamless communication between the GE 90-30 system and an Interbus-S fieldbus network, supporting data exchange of up to 64 words.
Features
- Designed specifically for GE Series 90-30 PLC rack mounting.
- Facilitates high-speed slave communication on Interbus-S networks.
- Fixed baud rate of 500 kbit/s for consistent network performance.
- Integrated 9-pin D-sub female connector for reliable fieldbus cabling.
- Robust 1500 V ac isolation to protect internal control circuitry from field-side transients.
Technical Specifications
| Model Number |
HE693IBS100 |
| Manufacturer |
General Electric |
| Interface Type |
Interbus-S Slave |
| Data Capacity |
Up to 64 words |
| Baud Rate |
500 kbit/s (fixed) |
| Connector |
9-pin D-sub female |
| Rack Power Supply |
24 V dc |
| Current Consumption |
120 mA |
| Isolation Voltage |
1500 V ac |
| Operating Temperature |
0 degC to +60 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Relative Humidity |
5% to 95% (non-condensing) |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
- Slide the module into an available slot in the Series 90-30 backplane and secure it using the integrated mounting hardware.
- Use a properly shielded 9-pin D-sub cable for the Interbus-S connection to minimize EMI interference.
- Maintain adequate spacing in the enclosure to ensure proper airflow and ventilation, keeping the ambient temperature within the specified 0-60 degC range.
- Verify that the backplane power supply is stable and within the 24 V dc requirement before powering up the system.
FAQ
What is the primary function of the HE693IBS100?
This module acts as an Interbus-S slave device, allowing your GE 90-30 PLC to communicate as a slave node on an existing Interbus-S fieldbus network.
Can I change the baud rate on this module?
No, the baud rate for the HE693IBS100 is fixed at 500 kbit/s.
What kind of environmental protection does this module provide?
The unit features 1500 V ac isolation, which helps protect the PLC backplane from electrical noise and potential surges originating from the fieldbus network.
