Description

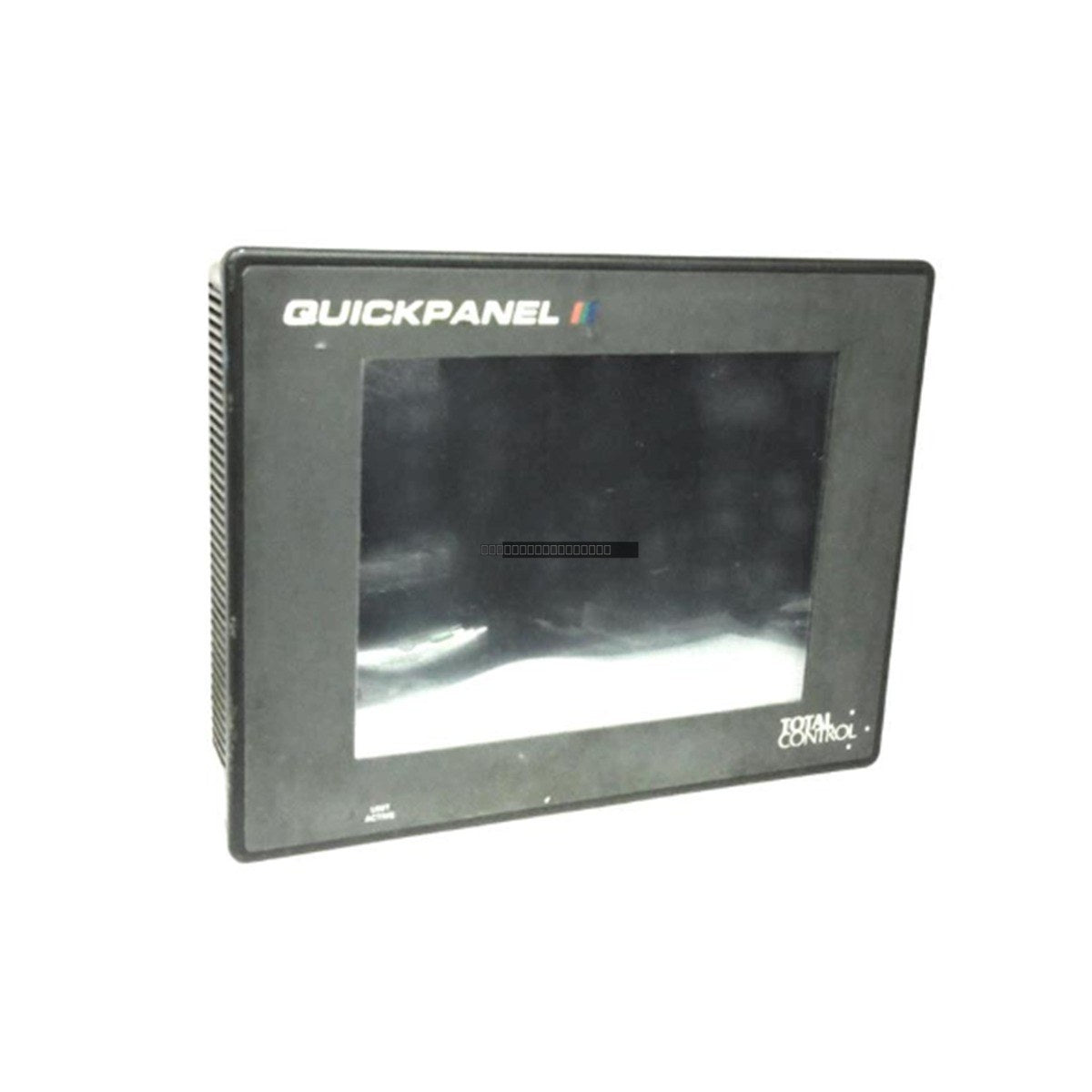

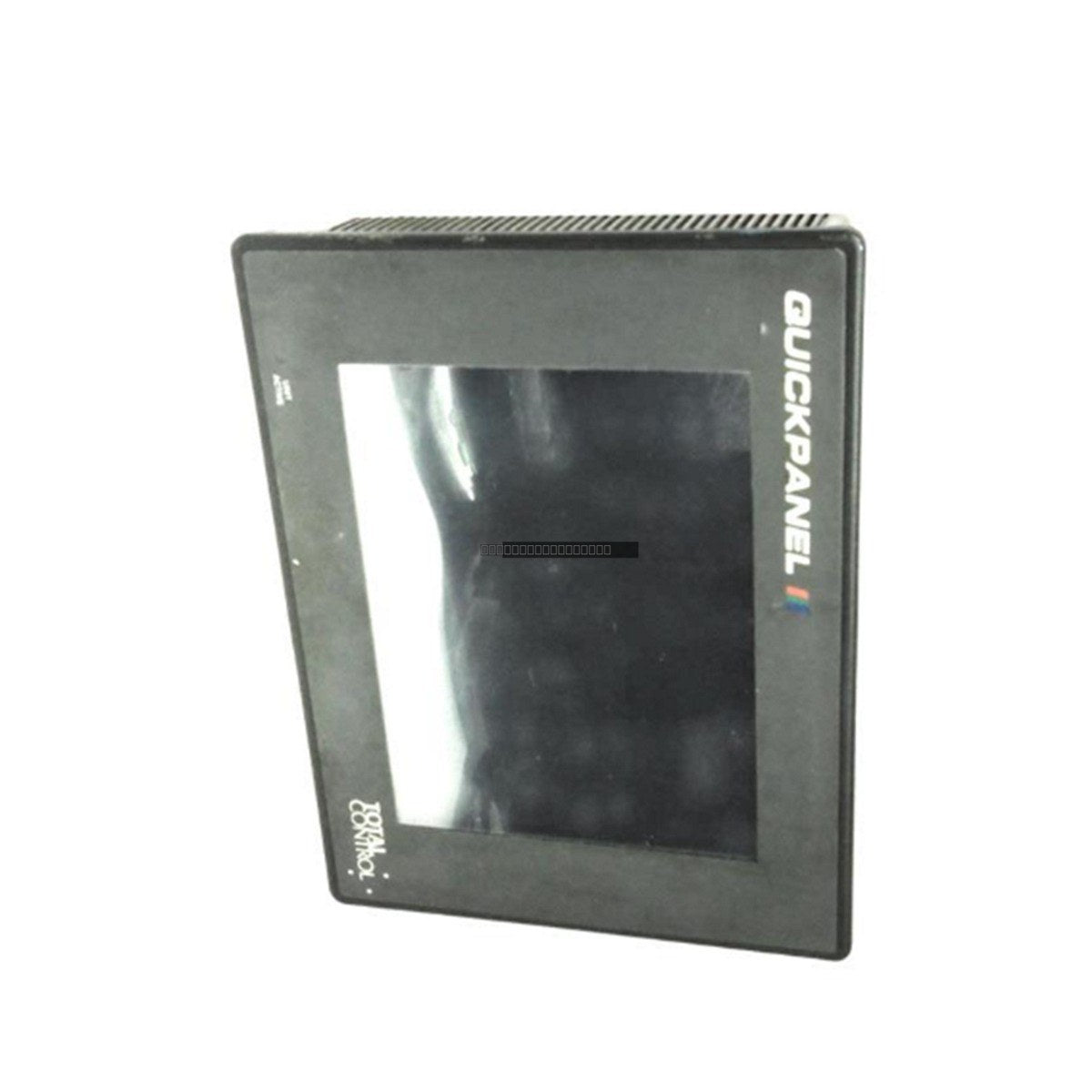

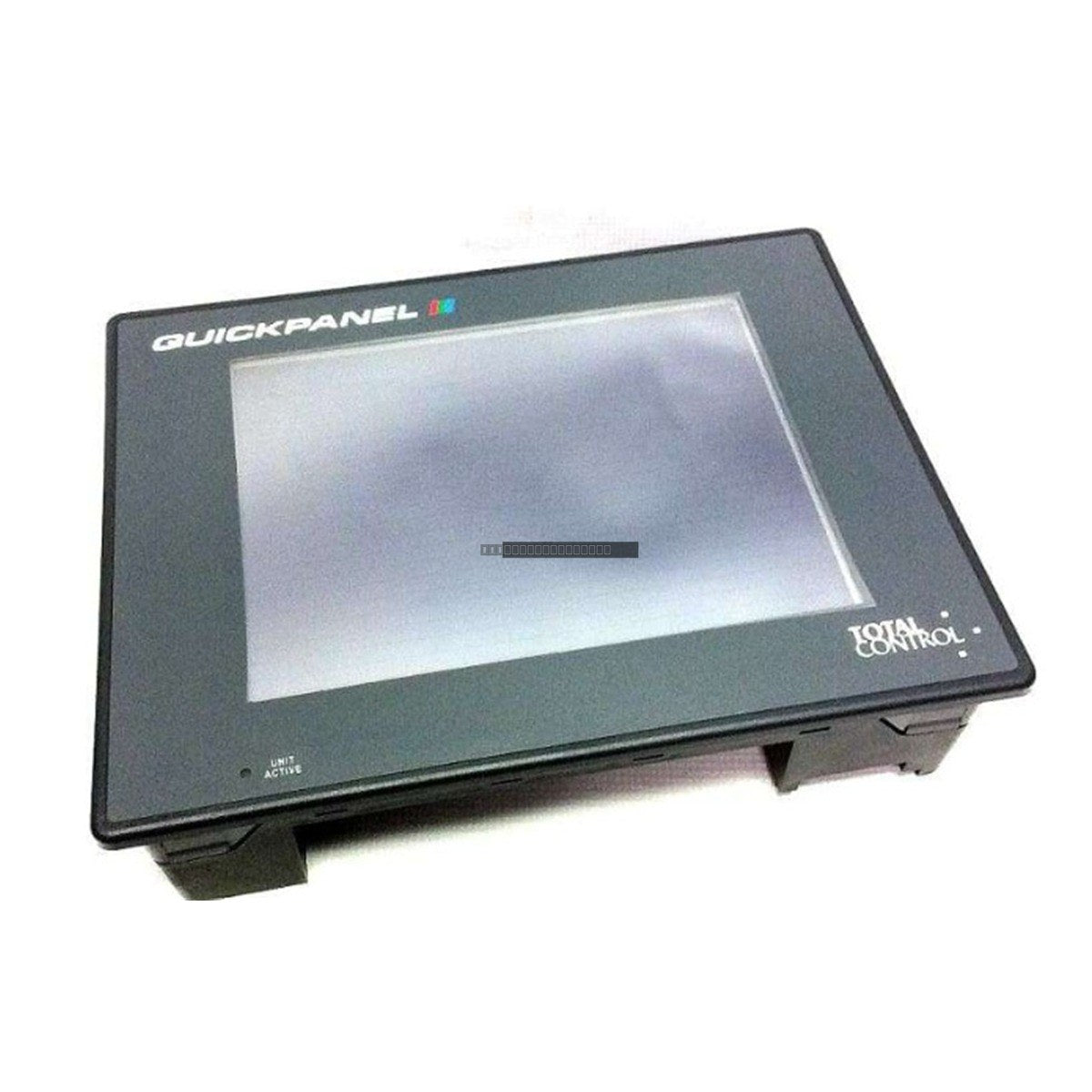

The GE Fanuc QPI21100S2P is a 10.4-inch QuickPanel human-machine interface (HMI) designed for industrial process monitoring and control. This operator terminal utilizes a Super Twisted Nematic (STN) color LCD matrix to provide clear visualization of process data. It is engineered for demanding environments, including power generation, oil refining, and mining, where reliable local graphics processing and robust enclosure protection are required to maintain system uptime.
Features
- 10.4-inch STN color LCD display with 640 x 480 pixel resolution.
- NEMA Type 4X/12 and IP65 rated enclosure for protection against dust, moisture, and corrosive environments.
- Designed for integration with QuickDesigner Version 3.7 runtime firmware.
- Optimized thermal management for consistent performance in standard industrial settings.
- High-reliability backlight system for extended operational life.
Applications
This HMI unit is suitable for use as a central control panel in various industrial sectors, including:
- Oil and gas refining facilities.
- Power generation and distribution plants.
- Mining and aggregate processing operations.
- General manufacturing and automated assembly lines.
Technical Specifications
| Model |
QPI21100S2P |
| Display Size |
10.4 inches |
| Display Type |
STN Color LCD |
| Resolution |
640 x 480 Pixels |
| Viewing Area |
6.32 in H x 8.48 in W |
| Input Voltage |
120 VAC |
| NEMA Rating |
Type 4X / 12 IP65 |
| Operating Temperature |
0 to 45 deg C (32 to 122 deg F) |
| Storage Temperature |
-10 to 60 deg C (-14 to 140 deg F) |
| Weight |
3.0 kg (6.6 lbs) |
Installation Guidelines
- Ensure the panel cutout dimensions are verified prior to mounting to maintain the integrity of the NEMA 4X/12 seal.
- Verify that the power supply is 120 VAC and properly grounded before connection.
- Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating.
- Use appropriate ESD precautions when handling the unit to prevent damage to internal circuitry.
- Ensure the unit is disconnected from power before performing any maintenance or cable routing.
FAQ
What software is required for this HMI?
The QPI21100S2P is designed to operate with QuickDesigner Version 3.7 runtime firmware.
Is this unit suitable for outdoor use?
The unit features a NEMA 4X/12 IP65 rating, which provides protection against dust and water ingress, but it is primarily intended for indoor industrial environments within the specified temperature range of 0 to 45 deg C.
