Product Description

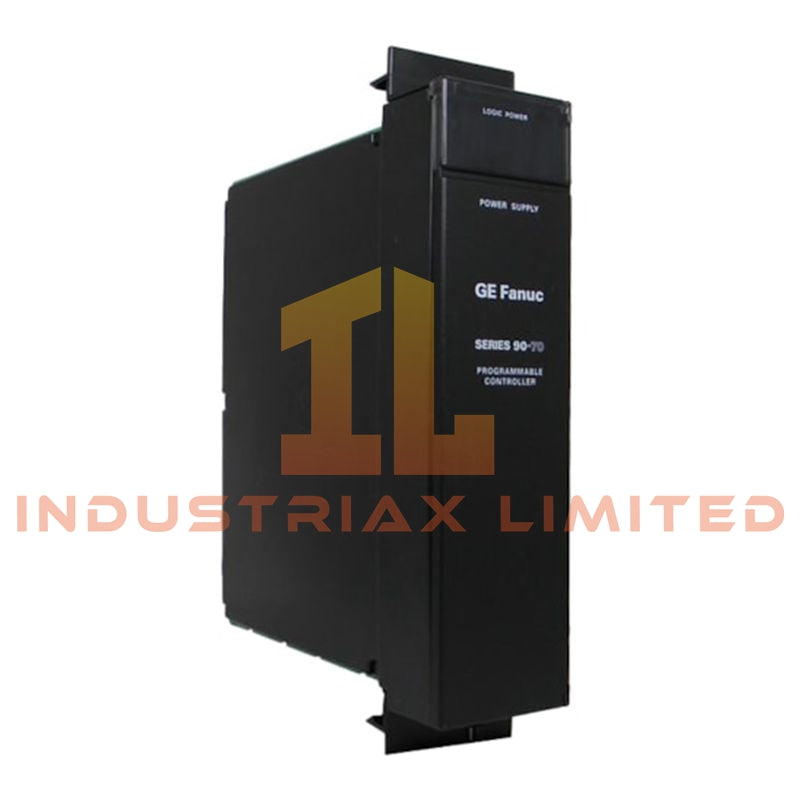

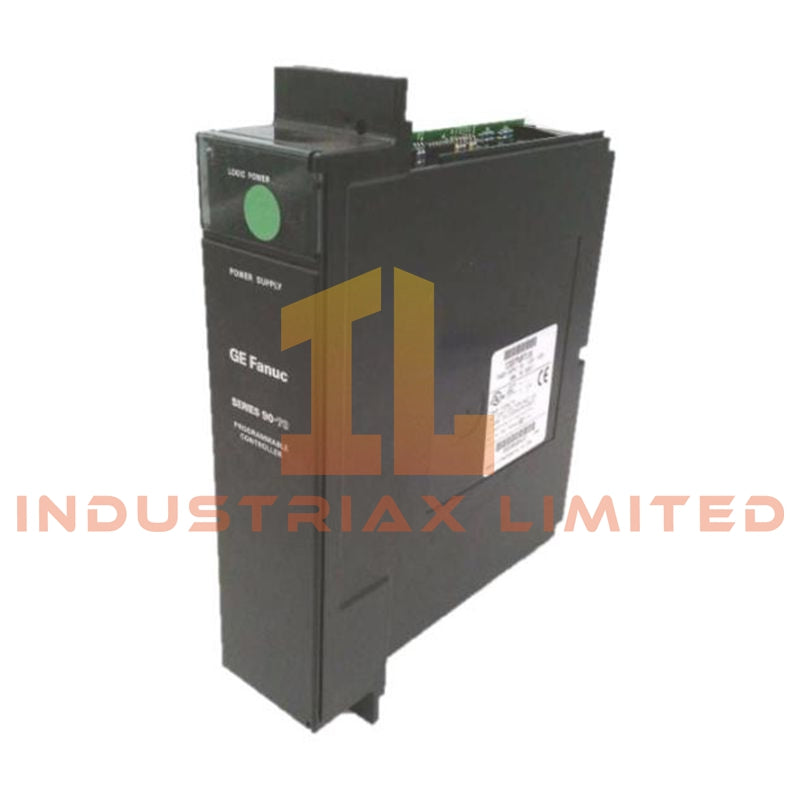

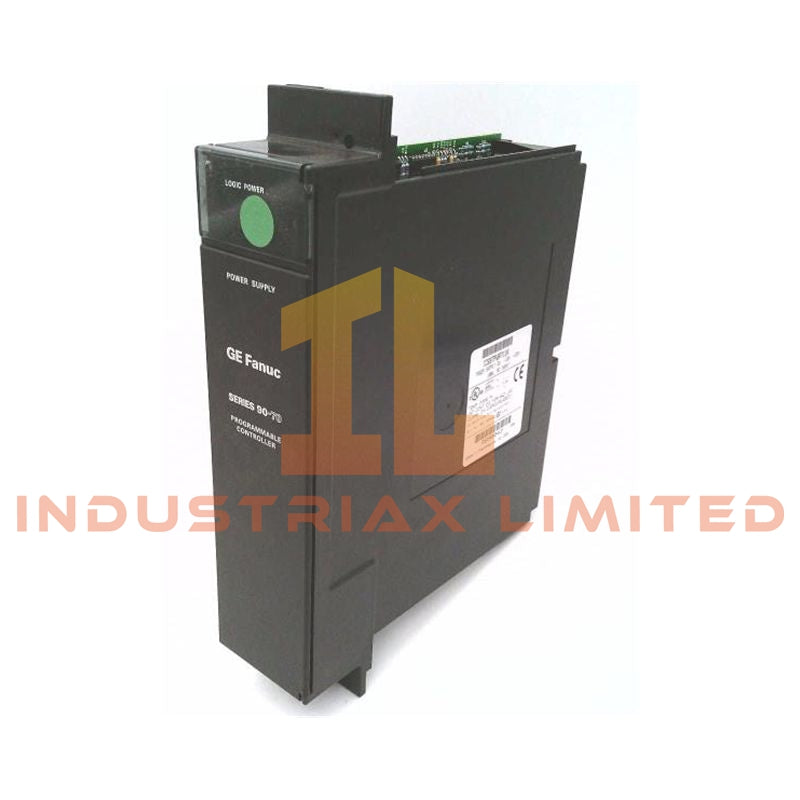

The IC697PWR724 is a rack-mounted 24 VDC power supply tailored for GE Fanuc Series 90‑70 PLC systems. Designed for installation in the leftmost slot of the PLC rack, it provides regulated DC power and logic-level sequencing signals to all connected modules.

With a total output of 90 W, the IC697PWR724 can support a single rack or two interconnected racks using the IC697CBL700 cable, provided the combined load does not exceed its rated capacity. The unit features electronic overcurrent and overvoltage protection, as well as a 10 ms ride-through to maintain stability during short power interruptions. Its slide-in design simplifies installation and maintenance without requiring full rack disassembly.

Technical Specifications

Electrical Input

• Nominal Input Voltage: 24 VDC

• Input Voltage Range: 18–32 VDC

• Maximum Input Power: 160 W at full load

DC Output Ratings

• +5 VDC: Up to 18 A (main logic supply)

• +12 VDC: Up to 1.5 A (I/O & specialty modules)

• –12 VDC: Up to 1 A (analog/specialty modules)

• Total Output Power: 90 W

Protection & Reliability

• Overcurrent protection on +5 V bus

• Overvoltage protection

• 10 ms ride-through on loss of input power

• Supports dual-rack operation with IC697CBL700 cable

Mechanical & Installation

• Mounting: Leftmost slot in Series 90‑70 PLC rack

• Backplane Connector: 48-pin

• Installation Type: Slide-in module

• Dimensions: 200 × 60 × 145.5 mm

• Weight: 2.47 lbs

Environmental Ratings

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: –25 °C to +70 °C

• Protection Class: IP20

Key Features

• 24 VDC input, 90 W regulated output for Series 90‑70 PLC racks

• Supplies +5 V, +12 V, –12 V to logic and I/O modules

• Compatible with single or dual rack configurations

• Electronic overcurrent and overvoltage protection

• 10 ms ride-through ensures stable power under transient events

• Slide-in design for easy installation and maintenance

Applications

Ideal for powering single or multiple Series 90‑70 PLC racks in industrial automation, process control, and distributed control systems where stable DC power and module sequencing are critical.

FAQ

Q: Can this power supply support two racks simultaneously?
A: Yes, using IC697CBL700, as long as the total load does not exceed 90 W.

Q: Is the module hot-swappable?
A: No, the supply must be installed or removed with power off.

Q: What protection features are included?
A: Overcurrent and overvoltage protection plus 10 ms ride-through capability.

Q: Where should the module be installed in the rack?
A: Always in the leftmost slot of the Series 90‑70 rack.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
