Description
Product Overview

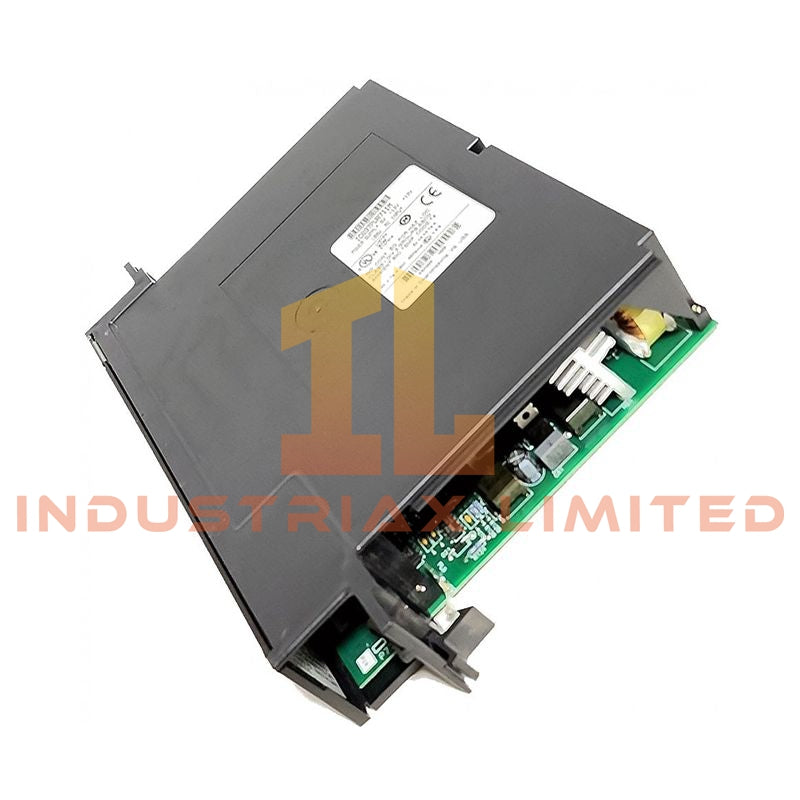

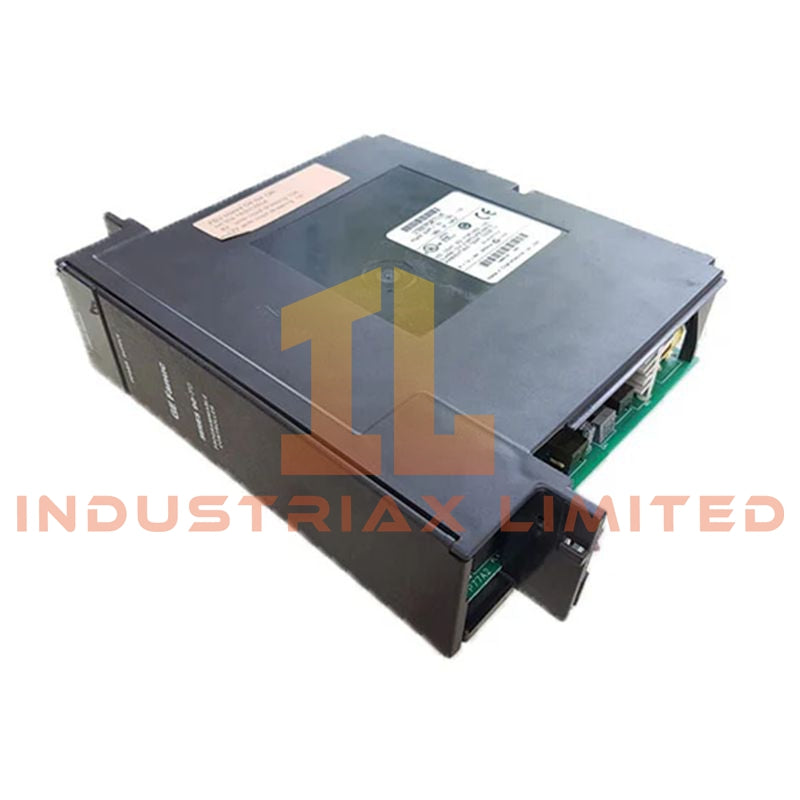

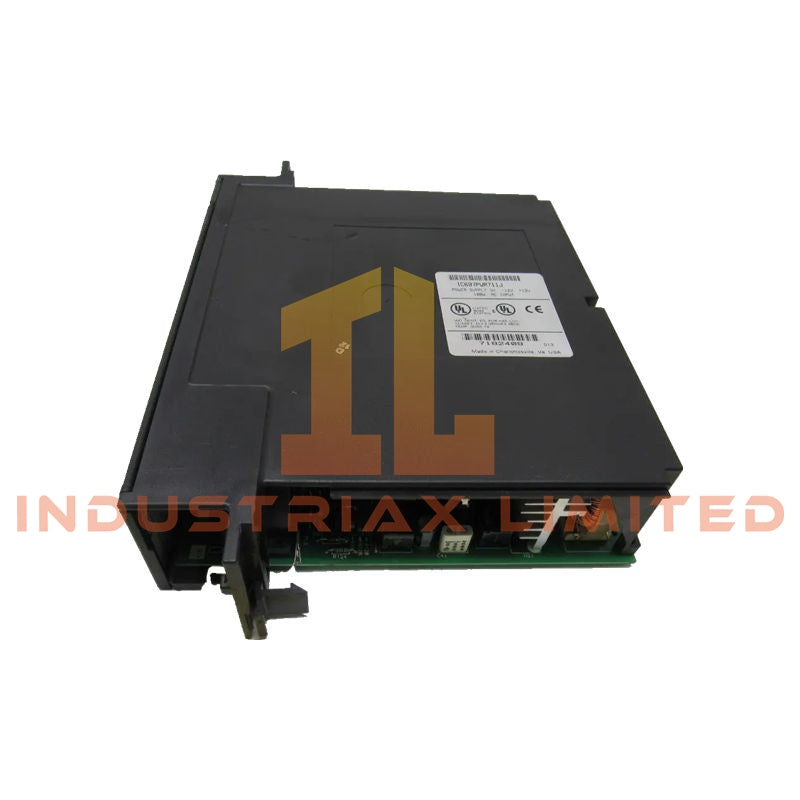

The IC697PWR711 is a high-capacity power supply module designed for GE Fanuc Series 90-70 PLC systems. It delivers stable, regulated DC power to the backplane and connected modules, ensuring reliable operation of CPUs, I/O, and communication devices. With auto-ranging AC input and multi-voltage outputs, this module is suitable for demanding industrial automation environments requiring robust and continuous power.
Technical Specifications
| Feature |
Specification |
| Model |
IC697PWR711 |
| Series |
GE Fanuc Series 90-70 |
| Module Type |
Power Supply Module |
| Input Voltage |
120/240 VAC (auto-ranging), 100–150 VDC |
| Frequency |
47–63 Hz |
| Output Power |
100 W maximum |
| Output Voltages |
+5 VDC (logic), +12 VDC / -12 VDC (analog/communication) |
| Backplane Current Capacity |
Up to 20 A at +5 VDC |
| Isolation |
Input-to-output isolation for safety |
| Rack Compatibility |
Standard IC697 PLC racks |
| Dimensions |
17 × 15 × 5 cm |
| Weight |
1.5 kg |
Key Features
-
High Capacity: Supports large-scale PLC systems with up to 100 W output.
-
Multi-Voltage Outputs: Provides +5 VDC for digital logic and ±12 VDC for analog or communication modules.
-
Auto-Ranging Input: Works seamlessly with both 120 VAC and 240 VAC supplies without manual switching.
-
Industrial-Grade Reliability: Designed for continuous operation in harsh industrial conditions.
-
Safety Isolation: Input-to-output separation protects connected modules from electrical faults.
Applications
-
Manufacturing Automation: Powers Series 90-70 PLC racks for assembly lines, robotic systems, and material handling.
-
Process Control: Ensures stable operation of controllers in chemical, food, and pharmaceutical industries.
-
Utilities: Suitable for water treatment, power distribution, and HVAC system automation.
-
Large-Scale PLC Systems: Ideal for distributed and multi-rack configurations requiring high-capacity power.
FAQ
Q: What input voltages does the IC697PWR711 support?
A: It accepts 120/240 VAC (auto-ranging) or 100–150 VDC input.
Q: What DC outputs are provided?
A: +5 VDC for logic circuits and ±12 VDC for analog or communication modules.
Q: How much current can it deliver to the backplane?
A: Up to 20 A at +5 VDC.
Q: Is this compatible with Series 90-30 PLCs?
A: No, it is designed specifically for GE Fanuc Series 90-70 PLC racks.
