Product Description

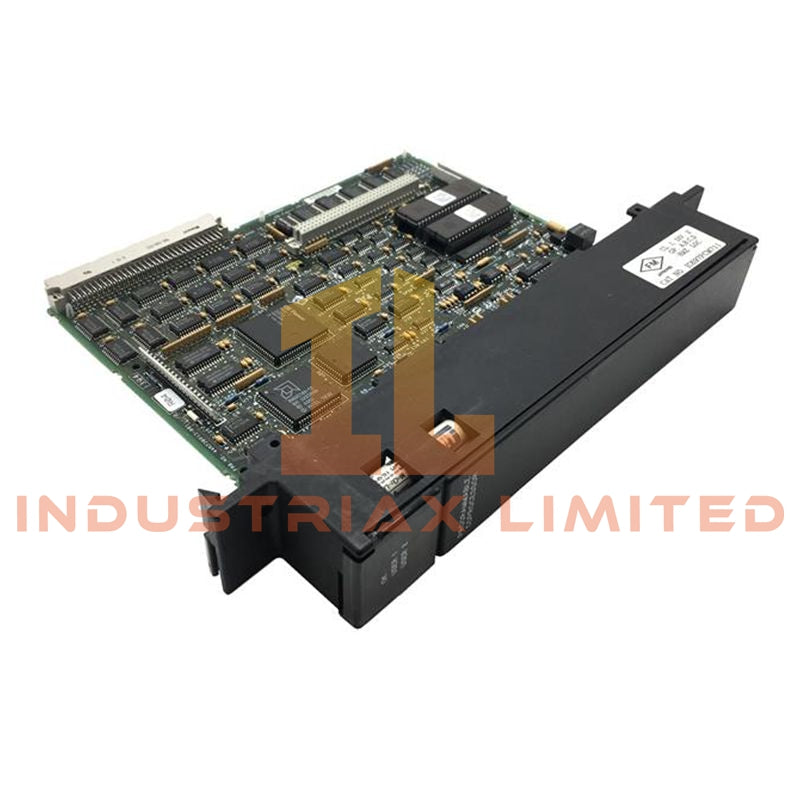

The IC697PCM711 is a dedicated programmable coprocessor module engineered for the GE Fanuc Series 90-70 PLC platform. It is intended to execute computation-intensive or time-sensitive tasks independently of the main CPU, improving overall system responsiveness and determinism.

Built around an Intel 80C186 processor running at 12 MHz, the module provides substantial local processing capability and supports concurrent task execution. A user-developed MegaBasic application can run in parallel with communication services, making it suitable for advanced data handling, operator interface logic, and custom control strategies.

The module communicates with the host PLC via the backplane and operates autonomously once deployed, without requiring continuous CPU intervention. Multiple modules can be installed within the same rack for distributed processing architectures.

Key Features

• Dedicated coprocessor for offloading PLC CPU tasks

• Intel 80C186 processor at 12 MHz

• Dual-task execution: user application and communication handling

• MegaBasic programming environment for flexible development

• Two configurable serial ports (RS-232 / RS-422 / RS-485)

• Battery-backed memory for data retention

• Front-panel control buttons for reset and restart

• Supports multiple modules per system

Technical Specifications

Processor & Performance

• CPU: Intel 80C186

• Clock Speed: 12 MHz

• Processing Capability: Comparable to legacy industrial PC-class performance

• Tasking: Dual-tasking (application + communication)

Memory

• Onboard Memory: Up to 96 KB CMOS (battery-backed)

• Expansion Options:

• 64 KB (IC697MEM713)

• 128 KB (IC697MEM715)

• 256 KB (IC697MEM717)

• 512 KB (IC697MEM719)

• Battery Type: Lithium

• Shelf Life: Approx. 10 years at 20 °C

• Data Retention: Up to 6 months without external power

Communication Interfaces

• Ports: 2 serial communication ports

• Electrical Interface: RS-232 / RS-422 / RS-485 (configurable)

• Baud Rates:

• Up to 9.6 kbps (dual-port operation)

• Up to 19.2 kbps (single port)

• Protocol: CCM2

Programming & Configuration

• Programming Language: MegaBasic

• Development Tools: IC647 PCM Development System, IC640 software

• Platform: IBM-compatible PC (XT/AT class)

• Configuration: Software-based (no hardware switches)

Indicators & Controls

• LEDs: OK, USER 1, USER 2

• Pushbuttons:

• Application restart

• Module stop/reset

Electrical & Mechanical

• Backplane Current: 1.0 A @ 5 VDC

• Slot Requirement: Single slot

• Weight: 1.1 lbs

Environmental

• Designed for industrial cabinet installation

• Long-term memory retention supported by battery backup

Functional Capabilities

The IC697PCM711 operates independently from the PLC CPU and can execute:

• Real-time mathematical processing

• Data acquisition and buffering

• Serial communication management

• Operator interface logic

• Data logging and storage

• Custom algorithm execution

Applications

• High-speed data processing in PLC systems

• Protocol conversion and serial communications

• Operator interface and supervisory functions

• Complex algorithm execution beyond standard PLC capability

• Distributed processing in large automation systems

FAQ

Q: Does the IC697PCM711 reduce CPU load?
A: Yes, it offloads computation and communication tasks, allowing the main PLC CPU to focus on core control logic.

Q: Can multiple PCM modules be used in one rack?
A: Yes, multiple units can operate in the same system for scalable processing.

Q: How is application logic developed?
A: Using MegaBasic with GE Fanuc PCM development tools on a compatible PC.

Q: What happens if power is lost?
A: Battery-backed memory preserves application data for several months without power.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
