Description
Overview

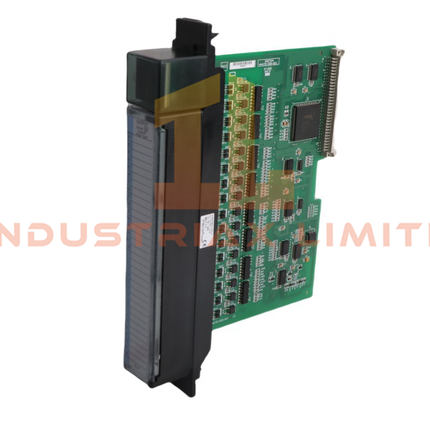

The General Electric Fanuc IC697MDL750 Discrete Output Module enhances Series 90-70 PLC systems with reliable control and fast response. GE designed this unit to drive multiple electrical loads, ensuring robust automation performance in industrial environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
IC697MDL750 |
| Module Type |
Discrete Output Module |
| Manufacturer |
GE Fanuc |
| Condition |
Brand New |
| Range of Product |
Series 90-70 |
| Lead Time |
In Stock |
| Weight |
0.58 kg |
| HS Code |
8537101190 |
| Dimensions |
4 × 22 × 29 cm |
| MOQ |
1 |
| Origin |
USA |
| System |
PLC |
| Status |
Active |
| Communication Service |
Ethernet Router |
Functional Description
The IC697MDL750 module provides 32 discrete output channels, each supporting 0.5 Amps at 24/48 VDC. Engineers grouped the outputs into four isolated sets of eight, each capable of handling 2 Amps. The module withstands peak inrush currents of 10 Amps for 20 milliseconds, while maintaining a fast 1 ms response time. Its low voltage drop of 1 Volt ensures stable operation under heavy loads. A removable terminal block accepts wire sizes from #22 AWG to #14 AWG, simplifying installation. The module requires 0.25 Amps from the 5V bus and complies with VME standard C.1 for system compatibility.
Applications and Compatibility
The IC697MDL750 Discrete Output Module integrates seamlessly with GE Fanuc Series 90-70 PLC systems. Industrial operators use this module to control motor starters, solenoid devices, and pilot lamps. Its compact dimensions, strong isolation, and rapid switching make it suitable for manufacturing, energy distribution, and heavy-duty automation environments.
