Description
Overview

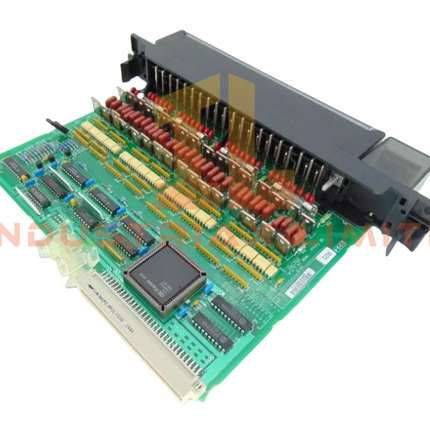

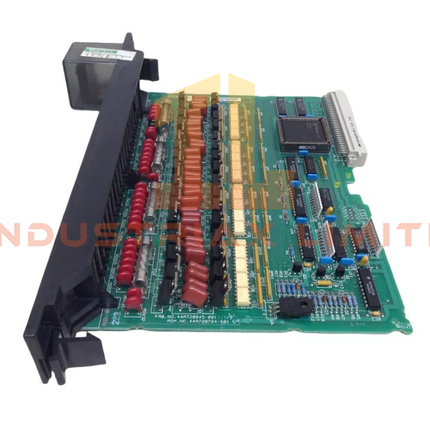

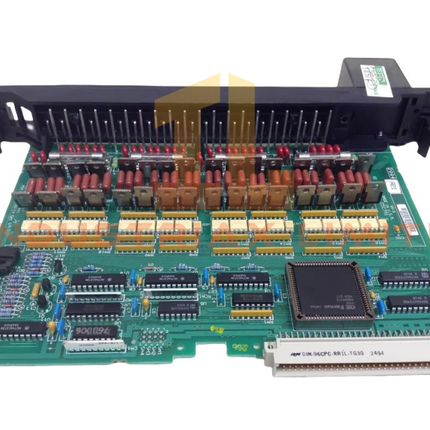

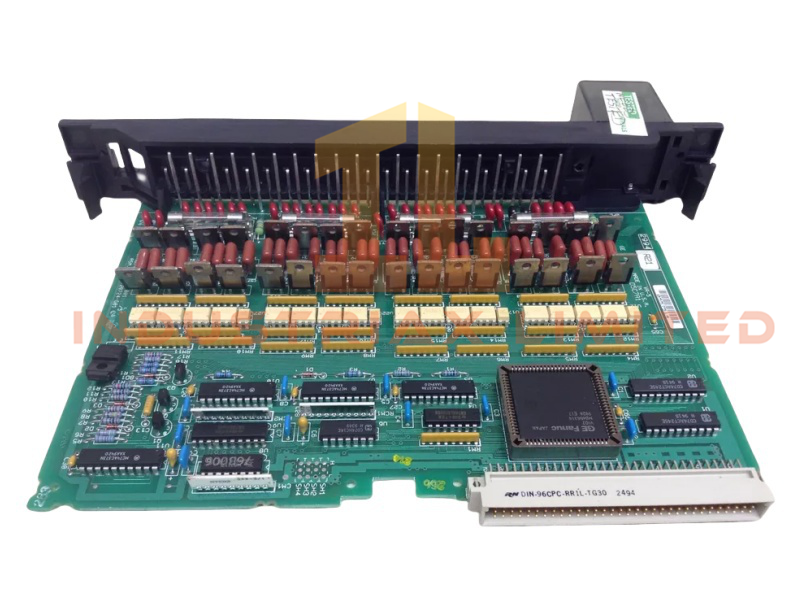

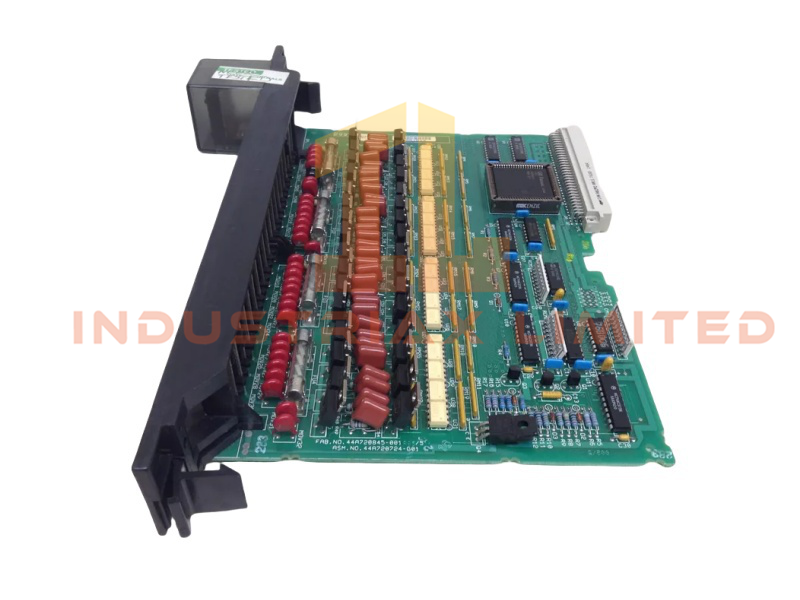

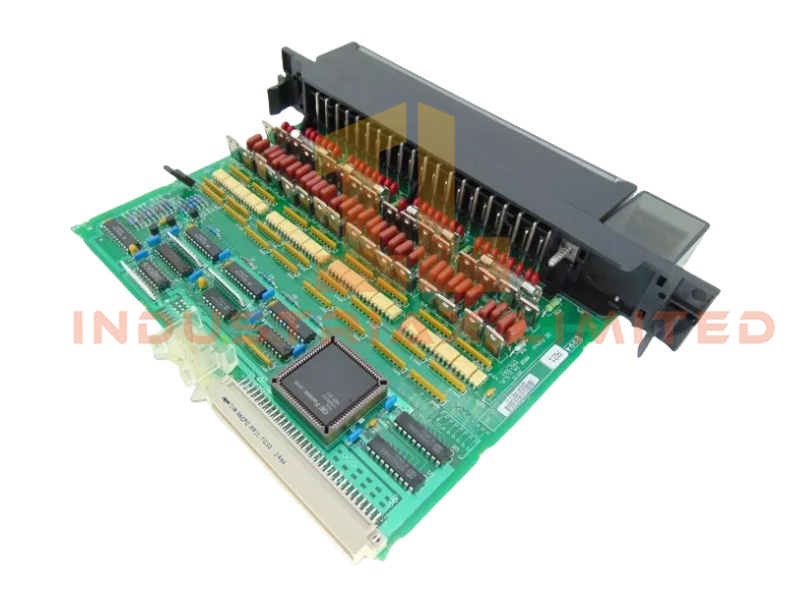

The General Electric Fanuc IC697MDL350 Discrete Output Module enhances Series 90-70 PLC systems with reliable AC output control. GE designed this unit to deliver strong current capacity, high inrush tolerance, and efficient heat dissipation for demanding automation environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
IC697MDL350 |
| Module Type |
Discrete Output Module |
| Manufacturer |
GE Fanuc |
| Condition |
Brand New |
| Range of Product |
Series 90-70 |
| Lead Time |
In Stock |
| Weight |
0.62 kg |
| HS Code |
8537101190 |
| Dimensions |
4 × 21.8 × 29.3 cm |
| MOQ |
1 |
| Origin |
USA |
| System |
PLC |
| Status |
Active |
| Communication Service |
Ethernet Router |
Functional Description
The IC697MDL350 module operates at 120 VAC, delivering 0.5 Amps per output point across 32 channels. Engineers divided the outputs into four groups of eight, each protected by a 5 Amp fuse and capable of running on separate AC phases. The module withstands inrush currents up to 20 times its rated value, making it ideal for inductive loads such as solenoids, motor starters, and pilot lamps. LED indicators display output status and fuse conditions, simplifying diagnostics. Mechanical keying ensures compatibility with other Series 90-70 modules, while configuration is managed through SNP or Ethernet TCP/IP programming software.
Applications and Compatibility
The IC697MDL350 Discrete Output Module integrates seamlessly with GE Fanuc Series 90-70 PLC systems. Industrial operators use this module for motor control, solenoid actuation, and indicator management. Its compact dimensions, fuse protection, and high inrush current tolerance make it suitable for manufacturing, energy distribution, and heavy-duty automation environments.
