Product Description

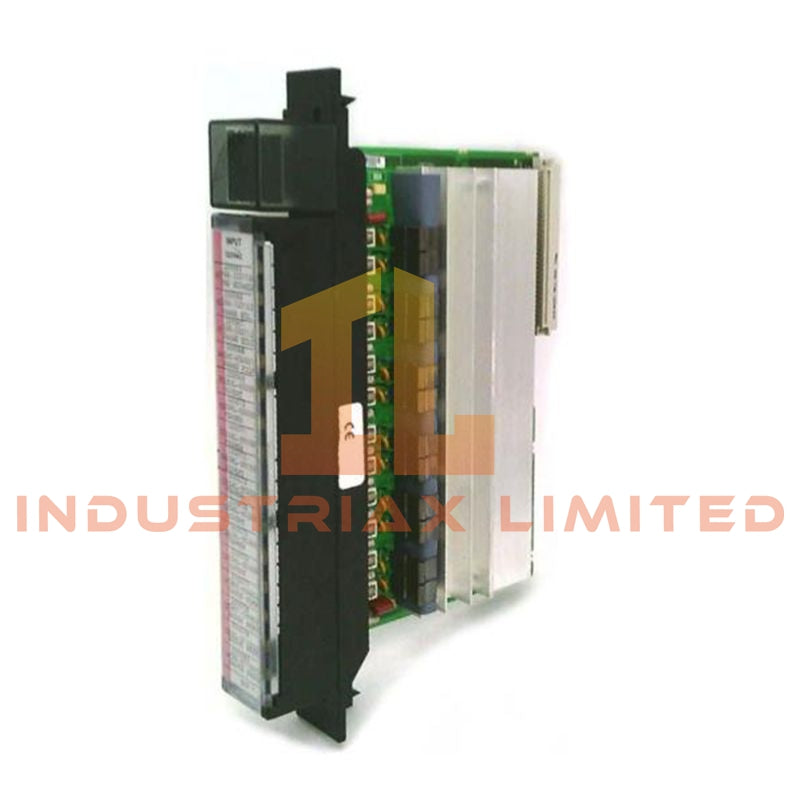

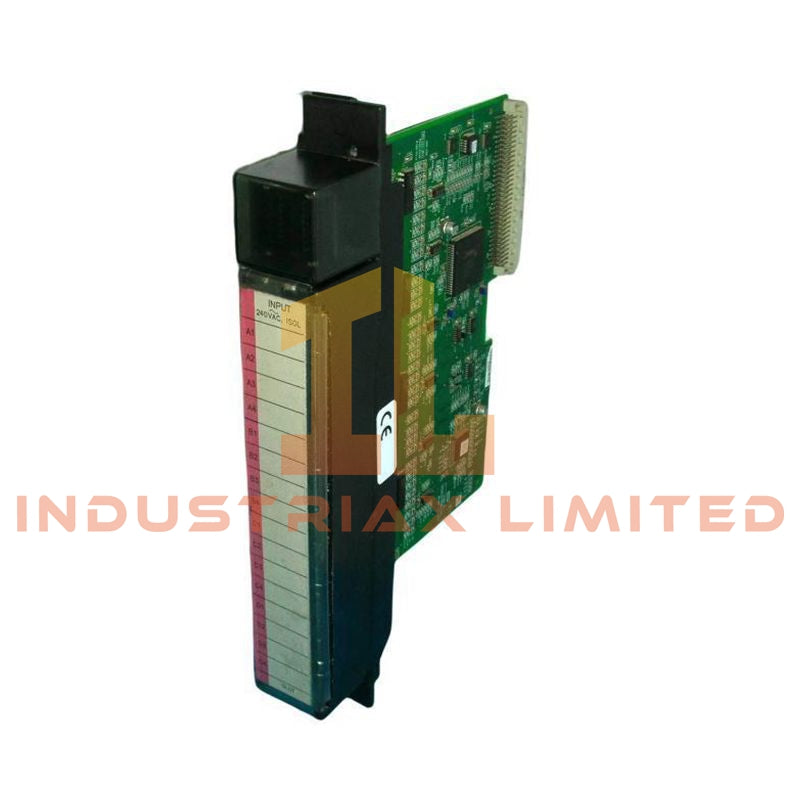

The IC697MDL241 is a 16-channel AC input module engineered for the GE Fanuc Series 90-70 PLC system. It monitors discrete 120 VAC signals from field devices such as push buttons, limit switches, and sensors, providing accurate and reliable input status to the PLC controller.
Designed for industrial environments, the IC697MDL241 features optical isolation between field wiring and the backplane to safeguard the PLC from electrical noise and voltage spikes. Each channel is equipped with a dedicated LED for immediate visual status verification, simplifying commissioning and troubleshooting. Its compact design allows installation in any Series 90-70 I/O slot, enabling flexible system integration.
Technical Specifications
| Specification |
Details |
| Model |
IC697MDL241 |
| Product Type |
Discrete AC Input Module |
| Series |
Series 90-70 PLC |
| Input Channels |
16 |
| Nominal Voltage |
120 VAC |
| On-State Voltage Range |
85–132 VAC |
| Off-State Voltage Range |
0–30 VAC |
| Input Current |
~10 mA at rated voltage |
| On-State Current |
Minimum 6 mA |
| Off-State Current |
Maximum 2 mA |
| Response Time |
On: ~25 ms; Off: ~25 ms |
| Isolation |
Optical isolation from PLC backplane |
| Indicators |
16 green LEDs (one per input) |
| Mounting |
Fits any Series 90-70 I/O slot |
| Operating Temperature |
0°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Weight |
1.25 lbs |
Key Features
-
AC Input Compatibility: Supports standard 120 VAC discrete signals.
-
Channel Status LEDs: Individual LEDs for rapid diagnostics.
-
Optical Isolation: Protects backplane from surges and electrical noise.
-
Flexible Installation: Can be installed in any Series 90-70 I/O slot.
-
Industrial Durability: Designed for reliable operation in harsh environments.
Applications
-
Monitoring AC-powered push buttons, limit switches, and sensors.
-
Integration into Series 90-70 PLC systems for manufacturing lines.
-
Process control and industrial machinery requiring reliable AC input detection.
-
Situations where fast diagnostics and system protection are critical.
FAQ
Q: How many input channels does IC697MDL241 provide?
A: 16 discrete AC input channels.
Q: Does it include visual indicators for each input?
A: Yes, each channel has a dedicated green LED.
Q: Can it be installed in any I/O slot?
A: Yes, compatible with all Series 90-70 I/O slots.
Q: What protection does it provide for the PLC?
A: Optical isolation safeguards the PLC backplane from electrical noise and voltage surges.
