Description

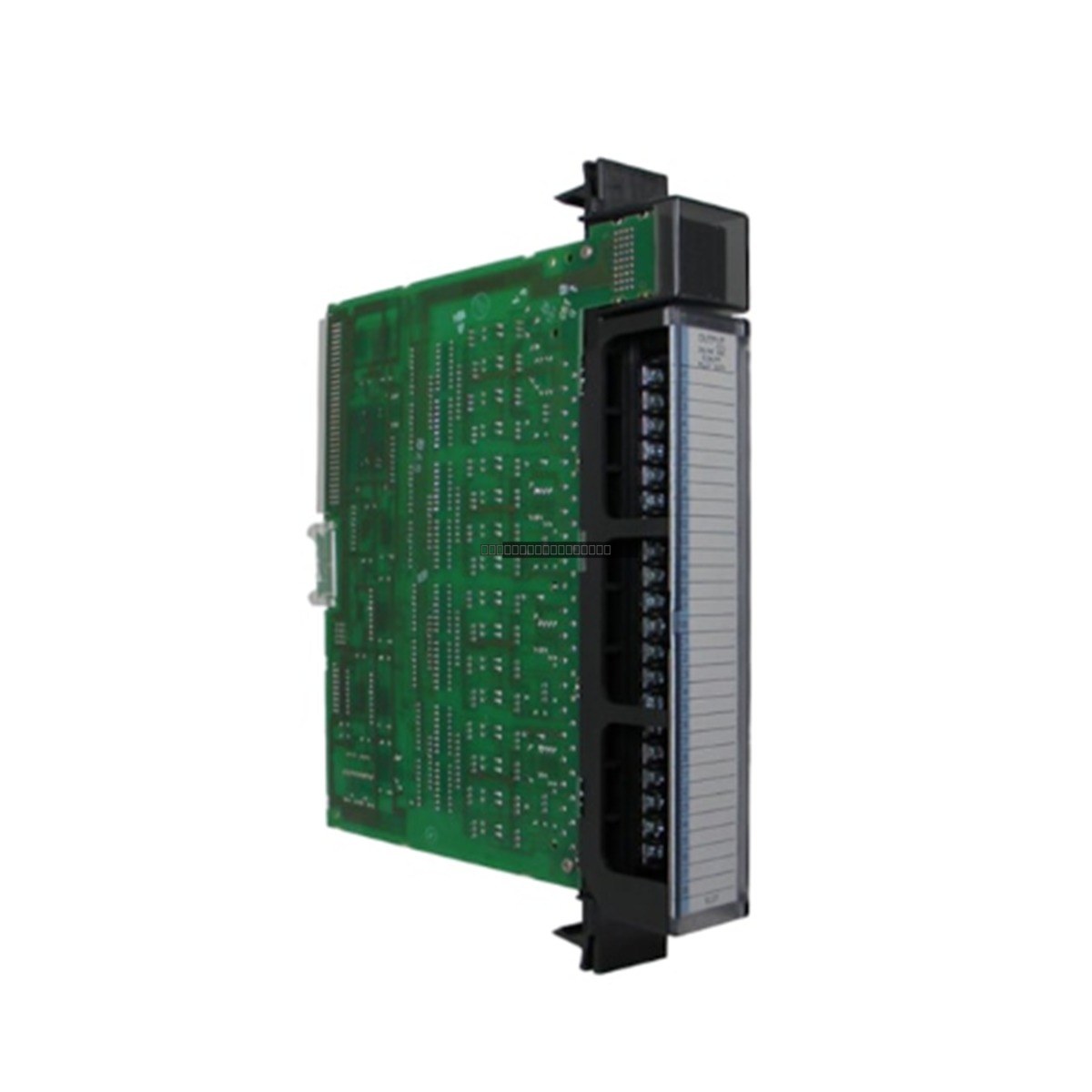

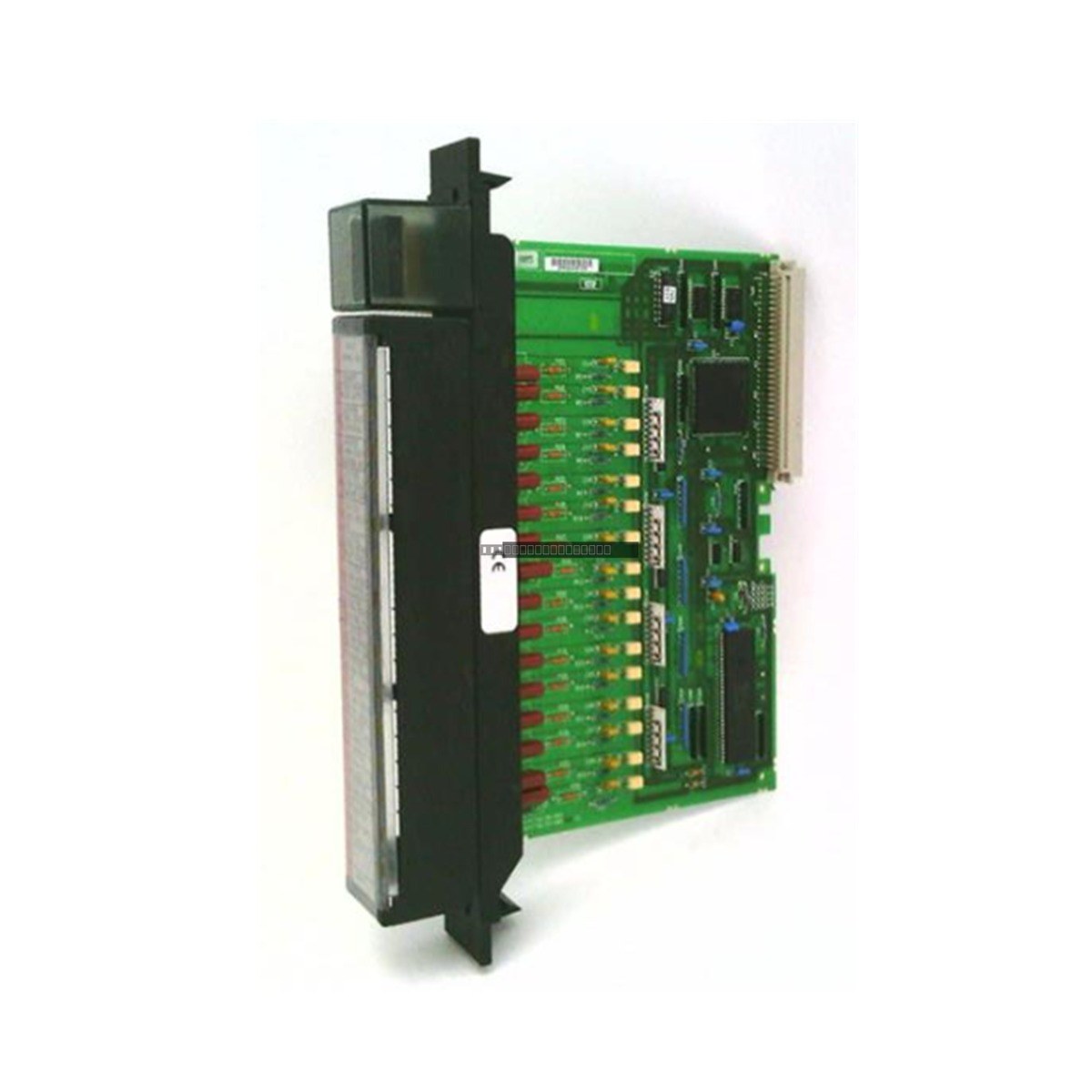

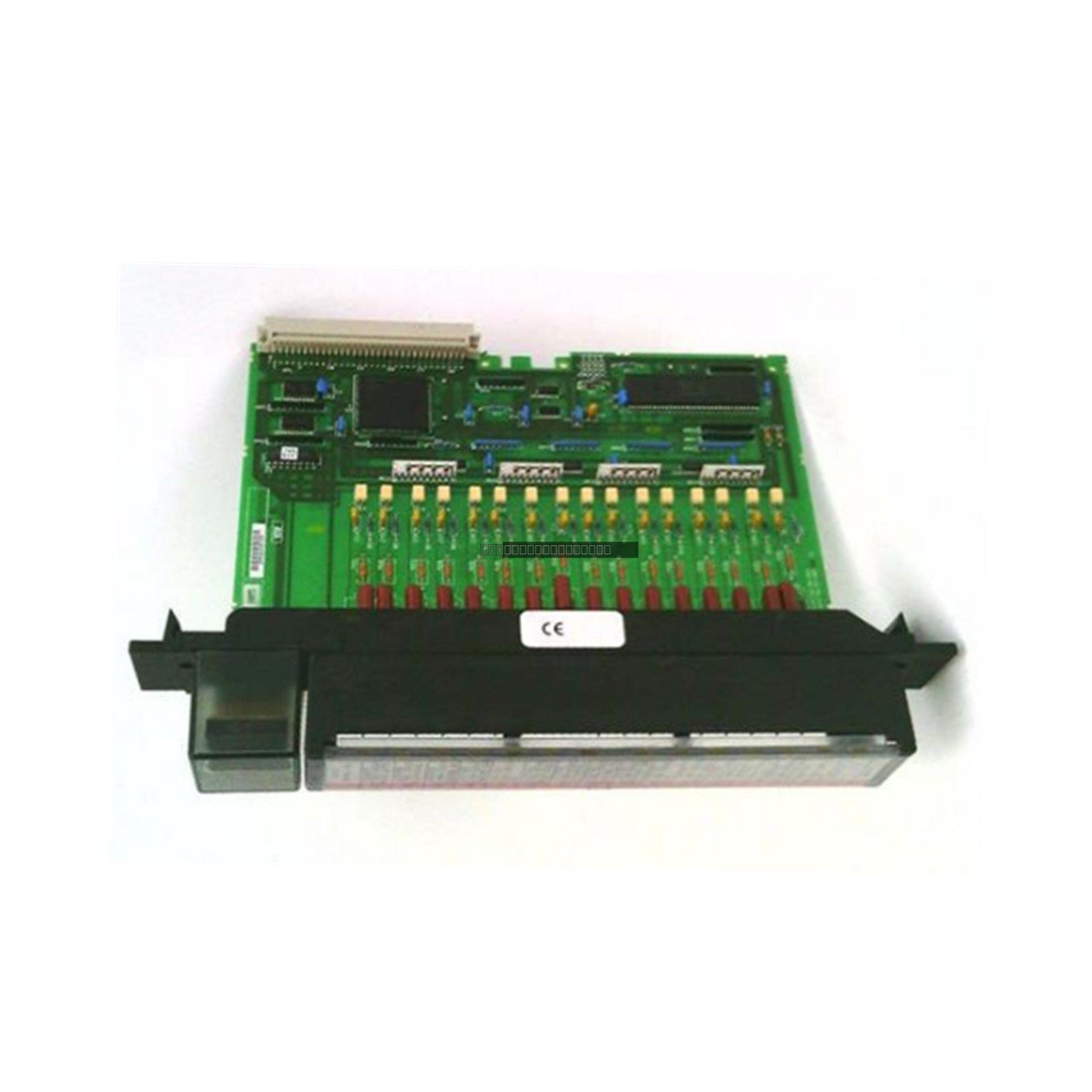

The General Electric IC697MDL240 is a high-performance discrete input module designed for integration within the Series 90-70 Programmable Logic Controller (PLC) architecture. This module provides 16 isolated input channels, facilitating reliable signal acquisition in demanding industrial automation environments.
Features
- Supports 16 isolated inputs for enhanced signal integrity and noise rejection.
- Designed for standard 120V AC input voltage applications.
- Integrated input filter with a 20 ms delay time to minimize the impact of contact bounce or transient noise.
- Compatible with the robust GE Series 90-70 backplane and rack system.
Applications
This module is typically deployed in industrial control systems requiring high-density discrete input monitoring, such as manufacturing assembly lines, process control systems, and power distribution monitoring where electrical isolation between channels is required to protect the PLC backplane.
Technical Specifications
| Model |
IC697MDL240 |
| Series |
Series 90-70 |
| Input Type |
Discrete (Isolated) |
| Number of Inputs |
16 |
| Rated Voltage |
120V AC |
| Input Current |
10 mA |
| Input Filter Delay |
20 ms |
| Current Consumption |
0.25 A |
| Frequency |
60 Hz |
Installation Guidelines
- Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the module is fully seated in the designated rack slot and secured with the provided mounting hardware.
- Use shielded cabling for input signals to reduce electromagnetic interference (EMI) in high-noise environments.
- Maintain proper ventilation within the cabinet to ensure the module operates within recommended temperature limits.
- Follow standard ESD (Electrostatic Discharge) protocols when handling the module to prevent damage to internal circuitry.
FAQ
What is the primary function of the IC697MDL240 module?
The IC697MDL240 is a discrete input module that converts 120V AC field signals into digital data for processing by the Series 90-70 PLC.
Does this module require external power for the inputs?
Yes, the module is designed for 120V AC input applications and requires the appropriate field power supply to be connected to the terminal blocks.
Is this module compatible with other GE series?
No, the IC697MDL240 is specifically engineered for the Series 90-70 PLC system and is not interchangeable with other GE product families like the Series 90-30.
