Product Description

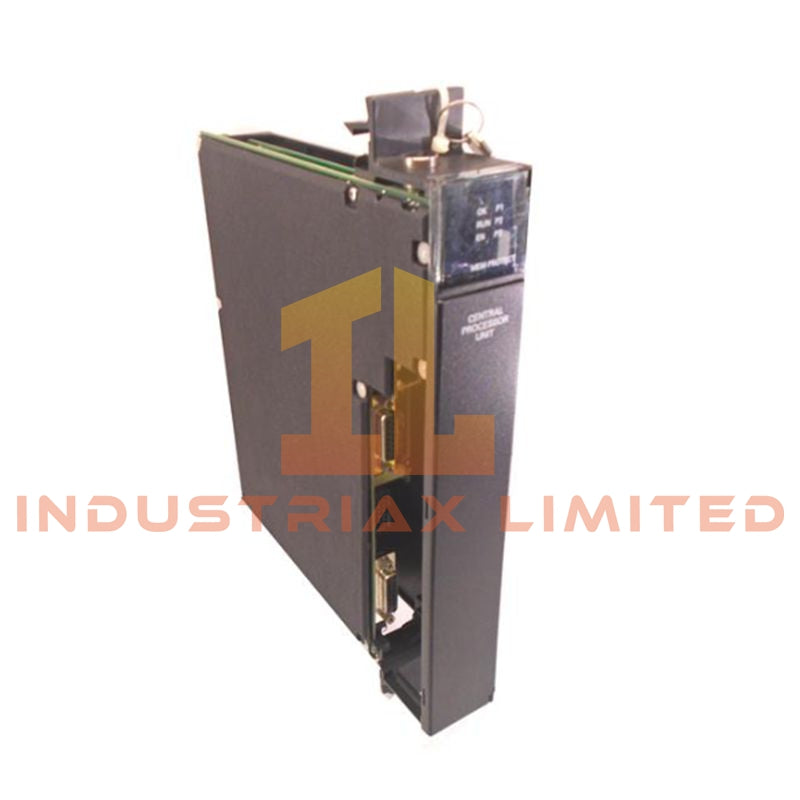

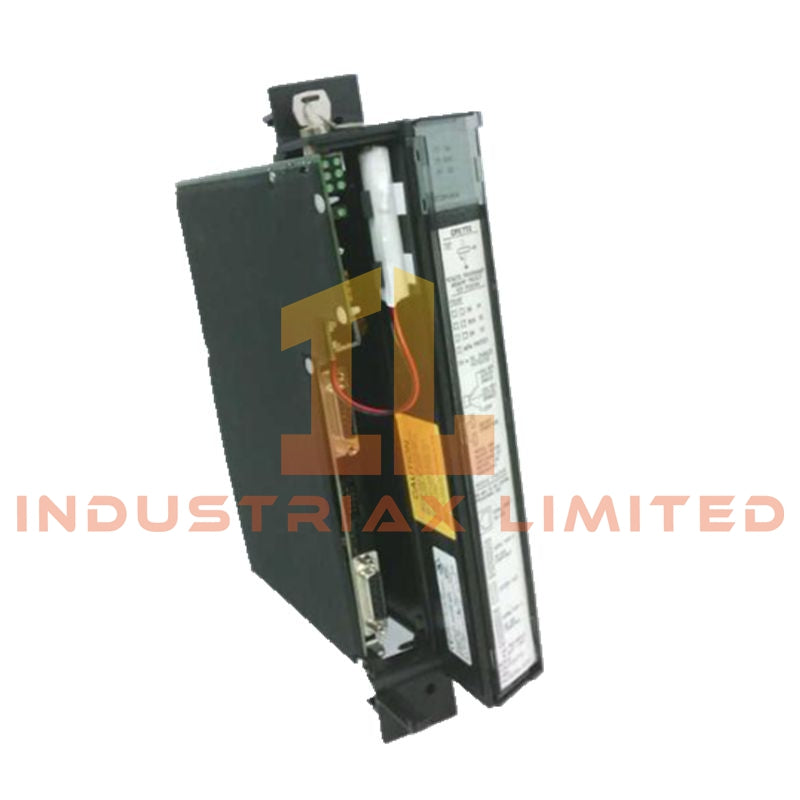

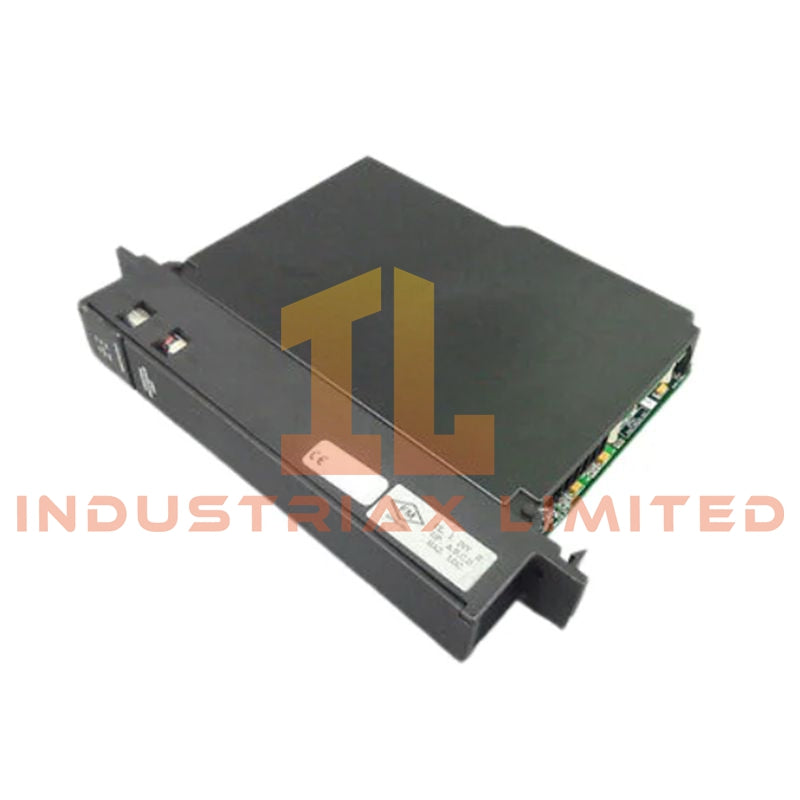

The IC697CPX782 is a mid-performance CPU module specifically designed for the GE Fanuc Series 90-70 PLC family. It delivers dependable processing power, moderate memory capacity, and flexible communication options, making it ideal for medium-to-large industrial control systems.
Powered by a 32-bit 80486DX4 processor running at 96 MHz and equipped with 1 MB of RAM and 256 KB of non-volatile memory, the IC697CPX782 supports multiple racks and thousands of I/O points. The module features built-in serial communication ports (RS-232/RS-485), enabling integration with remote I/O, supervisory systems, and external devices.
This single-slot CPU module supports ladder logic and advanced programming through GE Fanuc software, providing reliable performance for process control, machine automation, and multi-rack configurations. Operating temperatures range from 0°C to +60°C, with standard Series 90-70 rack dimensions for straightforward installation.
Technical Specifications
| Feature |
Specification |
| Model |
IC697CPX782 |
| Manufacturer |
GE Fanuc / Emerson |
| Module Type |
CPU Module |
| PLC Series |
Series 90-70 |
| Microprocessor |
80486DX4, 32-bit |
| Clock Speed |
96 MHz |
| RAM |
1 MB for user programs and data |
| Non-Volatile RAM |
256 KB |
| Communication Ports |
3 Serial (RS-232/RS-485) |
| I/O Capacity |
Supports multiple racks and thousands of points |
| Slot Requirement |
Single-slot CPU module |
| Operating Voltage |
5 V DC |
| Operating Temperature |
0°C to +60°C |
| Weight |
2.0 lbs |
Key Features & Benefits
Reliable Processing: 96 MHz CPU delivers stable performance for medium-to-large systems.
Moderate Memory: 1 MB RAM plus 256 KB NVRAM supports substantial program logic and data storage.
Scalable Design: Supports multi-rack configurations and remote I/O expansion.
Flexible Connectivity: Serial ports enable communication with external devices and supervisory systems.
Durable Build: Industrial-grade design ensures continuous operation under demanding conditions.
Applications
-
Medium-to-large PLC systems requiring reliable CPU performance
-
Machine control and process automation
-
Multi-rack and distributed I/O configurations
-
Industrial environments where uptime and stability are critical
FAQ
Q: Can this module be used in Series 90-30 PLCs?
A: No, the IC697CPX782 is designed exclusively for Series 90-70 PLC systems.
Q: How much memory does it have?
A: The module has 1 MB of RAM and 256 KB of non-volatile memory for user programs and data retention.
Q: What programming languages are supported?
A: Ladder Logic and advanced GE Fanuc software programming.
Q: Is it compatible with multiple racks?
A: Yes, the module supports multi-rack configurations and remote I/O expansion.
