Description
Product Overview

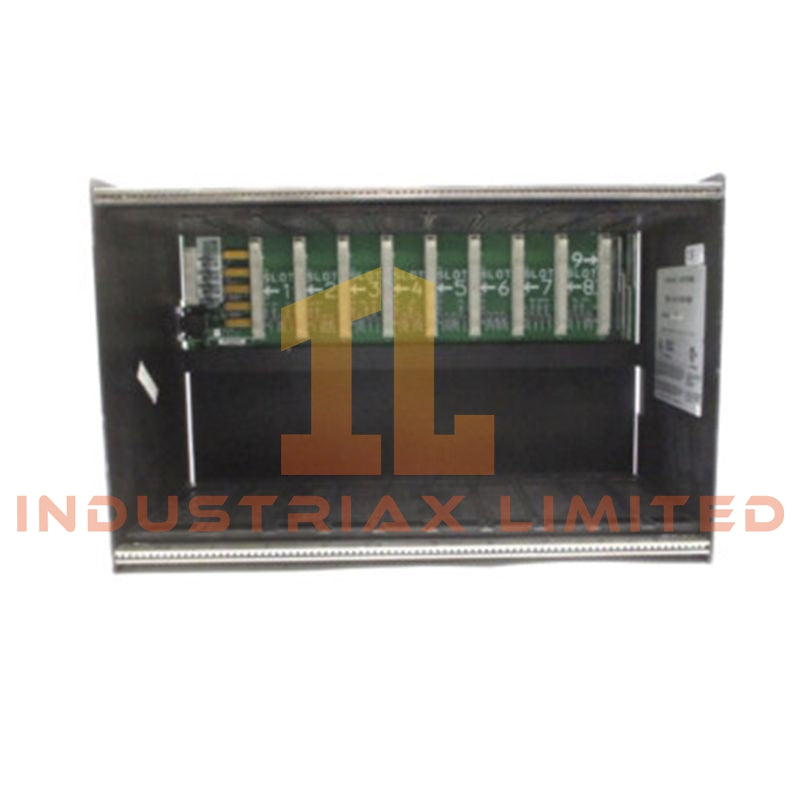

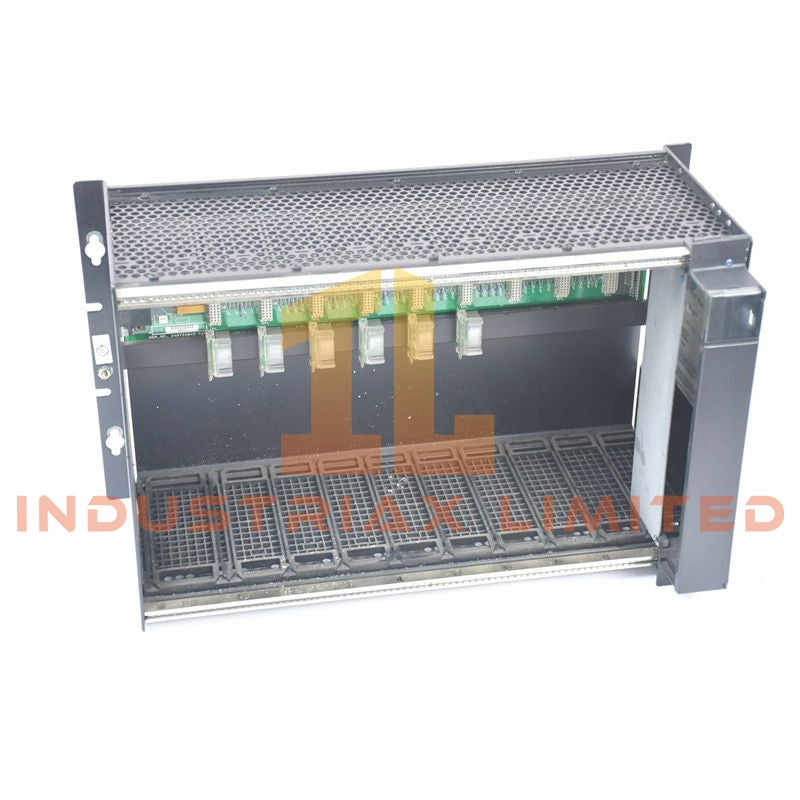

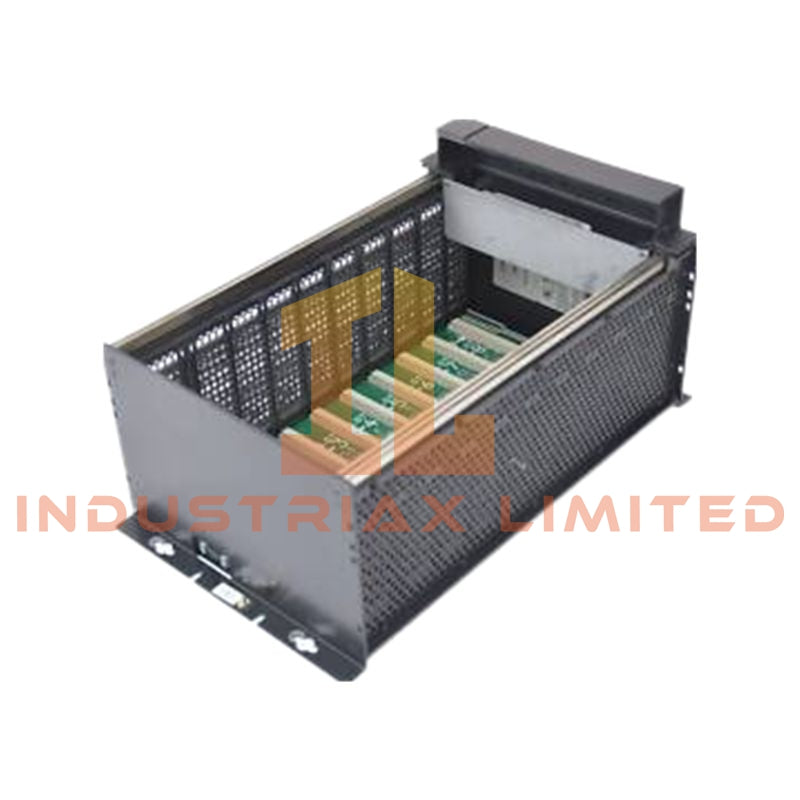

The IC697CHS791 is a 9-slot I/O rack (baseplate) designed for the GE Fanuc Series 90-70 PLC system. It provides a secure mechanical housing and a robust electrical backplane for CPUs, power supplies, and I/O modules. Engineered for modular expansion, it enables easy integration of PLC components while ensuring reliable communication and power distribution across all installed modules.
Technical Specifications
| Feature |
Specification |
| Model |
IC697CHS791 |
| Series |
GE Fanuc Series 90-70 |
| Module Type |
9-Slot I/O Rack / Baseplate |
| Number of Slots |
9 slots for CPU, power supply, and I/O modules |
| Backplane Type |
Embedded bus for communication and power distribution |
| Mounting |
Horizontal or 19-inch front rack mounting |
| Compatibility |
Supports all Series 90-70 CPU, power, I/O, and communication modules |
| Dimensions |
48 × 28 × 10 cm |
| Weight |
4.39 kg |
| Construction |
Metal frame with plastic module guides for alignment |
| Power Distribution |
Through installed power supply module via backplane |
| Cooling Requirements |
Passive; no fan required |
| I/O Bus Current Requirement |
0.5 A maximum |
| Mechanical Keying |
Supported for module alignment and safety |
| Operating Temperature |
0–40 °C |
| Storage Temperature |
0–50 °C |
| Maximum Relative Humidity |
80% non-condensing |
| Maximum Operating Altitude |
1000 meters above sea level |
Key Features
-
Modular Design: Nine slots allow flexible system configuration and future expansion.
-
Reliable Backplane Connectivity: Ensures seamless communication between CPU, power supply, and I/O modules.
-
Durable Construction: Metal frame and plastic guides provide industrial-grade mechanical support.
-
Easy Installation: Modules slide into guided slots with secure locking.
-
Compatibility: Fully supports Series 90-70 PLC components including CPUs, I/O, and communication modules.
Applications
-
Manufacturing Lines: Houses PLC components controlling assembly lines, robotics, and automated machinery.
-
Process Control: Provides distributed I/O for chemical, pharmaceutical, and food processing operations.
-
Utility Systems: Supports water treatment, HVAC automation, and power distribution networks.
-
Industrial Racks: Enables modular expansion with secure mounting and reliable backplane connectivity.
FAQ
Q: How many modules can this rack accommodate?
A: The IC697CHS791 provides 9 slots for CPUs, power supplies, and I/O modules.
Q: Does it require active cooling?
A: No, the rack is designed for passive cooling; no fans are needed for standard operation.
Q: Is it compatible with all Series 90-70 modules?
A: Yes, it supports CPUs, power supplies, I/O modules, and communication modules within the Series 90-70 family.
Q: What is the mounting method?
A: It can be mounted horizontally or on a standard 19-inch front rack.
