Description
Product Overview

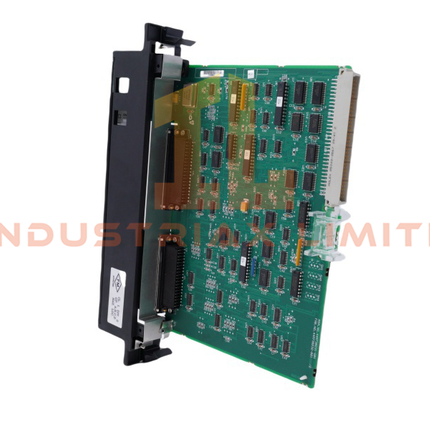

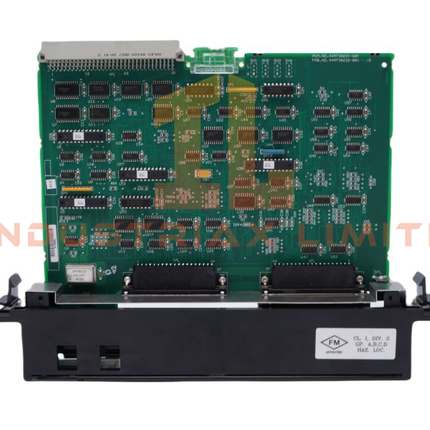

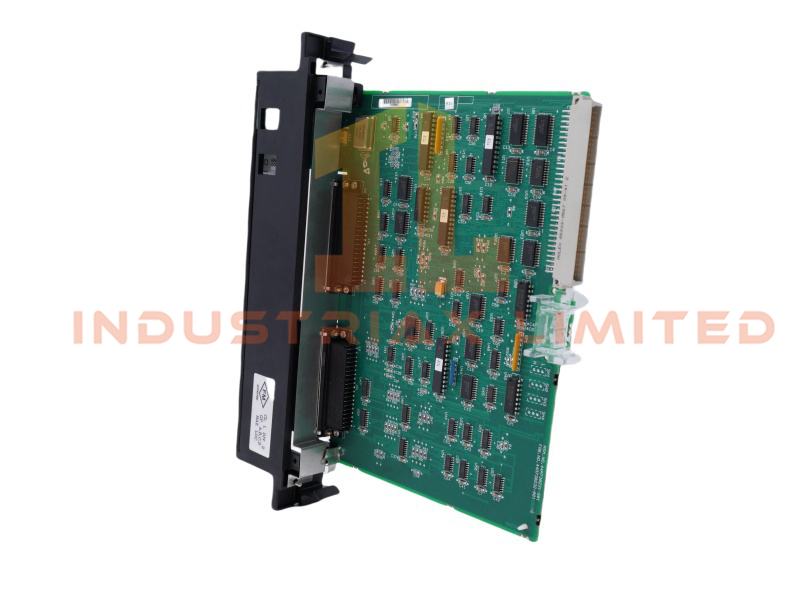

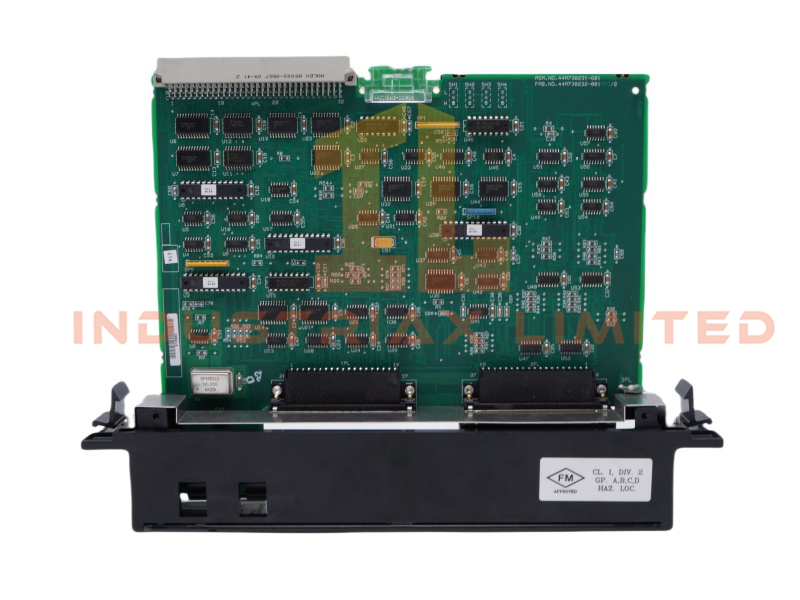

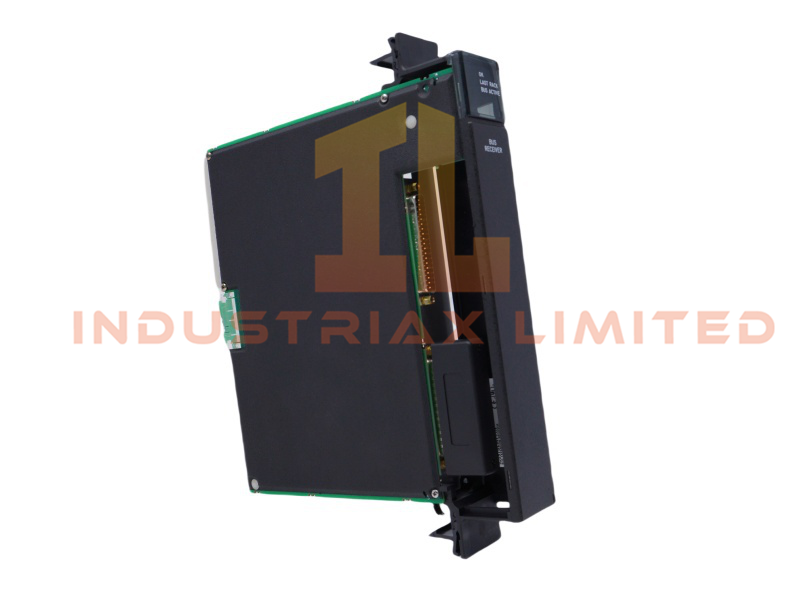

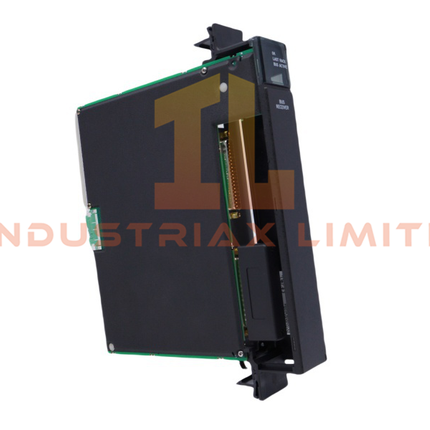

The IC697BEM711 Bus Receiver Module from GE Fanuc’s Series 90-70 PLC family enables seamless local bus expansion by connecting to the IC697BEM713 Bus Transmitter Module. It supports up to seven receivers in a daisy-chain configuration, extending system functionality across multiple racks.
This module occupies a single chassis slot and communicates with the transmitter over expansion cables up to 50 feet long. The final IC697BEM711 in the chain must include a terminating resistor (IC697ACC702) to ensure signal integrity. Designed for industrial environments, it offers reliable performance and easy integration with GE’s modular PLC architecture.
Technical Specifications
| Specification |
Details |
| Model Number |
IC697BEM711 |
| Module Type |
Bus Receiver Module |
| Product Series |
Series 90-70 |
| Manufacturer |
GE Fanuc |
| Dimensions |
4 × 22 × 29.1 cm |
| Weight |
0.42 kg |
| Expansion Support |
Up to 7 receivers per transmitter |
| Cable Length Limit |
50 feet (15 meters) |
| Termination Requirement |
IC697ACC702 resistor |
| Slot Occupancy |
Single slot (not slot 1) |
| Communication Interface |
Local bus via expansion port |
| Compliance |
ME standard C.1 |
| Compatible Cables |
IC600WD005A, WD010A, WD025A, WD050A |
| Configuration Software |
MS-DOS or Windows-based tools |
| Communication Service |
Ethernet router |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Origin |
USA |
| System Compatibility |
PLC |
| Discontinued Status |
Active |
| Minimum Order Quantity |
1 |
| Lead Time |
In Stock |
Features & Benefits
-
The IC697BEM711 enables local bus expansion across multiple Series 90-70 racks.
-
Supports up to seven receivers per transmitter for scalable system architecture.
-
Compatible with multiple cable lengths for flexible installation.
-
Requires terminating resistor for stable communication at end of chain.
-
Occupies a single slot and integrates easily with GE Fanuc PLC systems.
