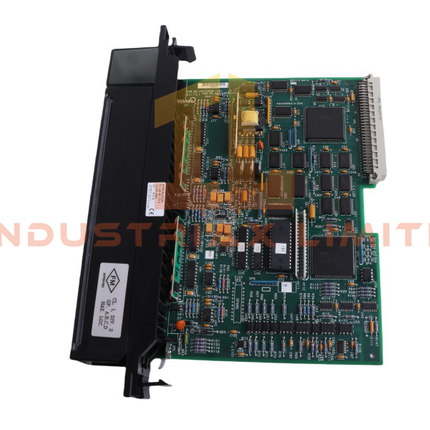

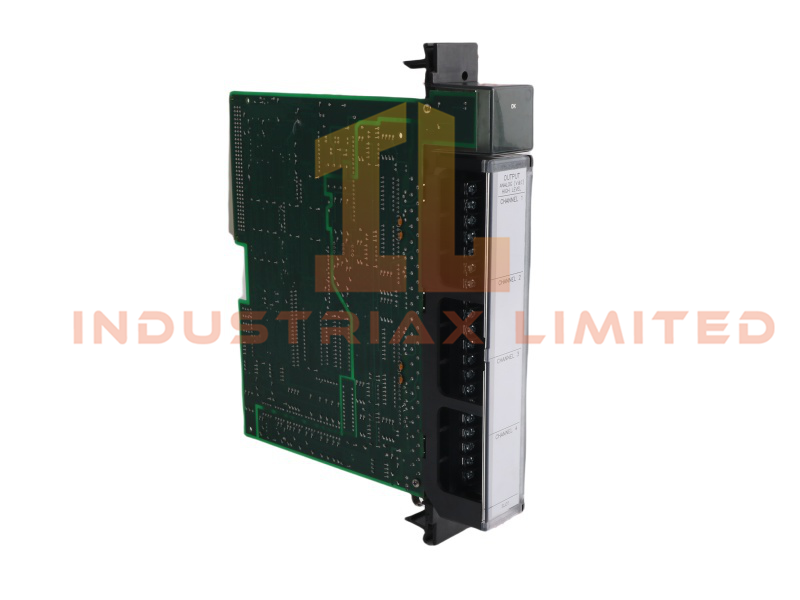

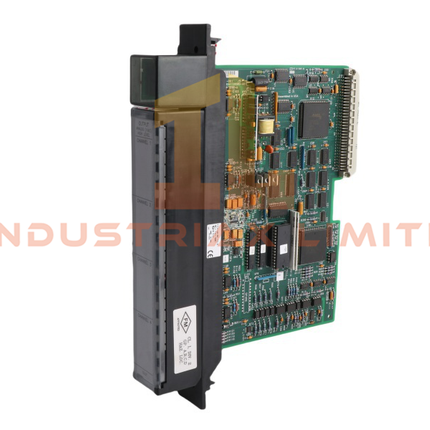

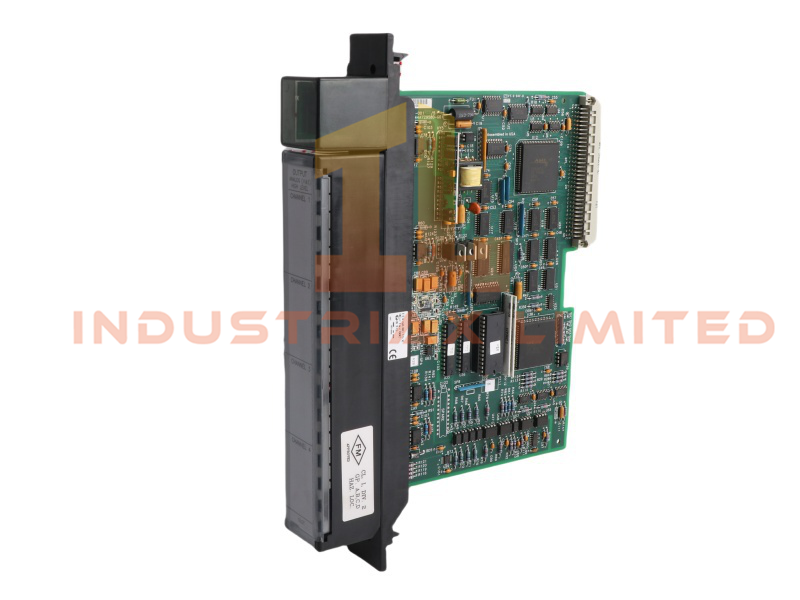

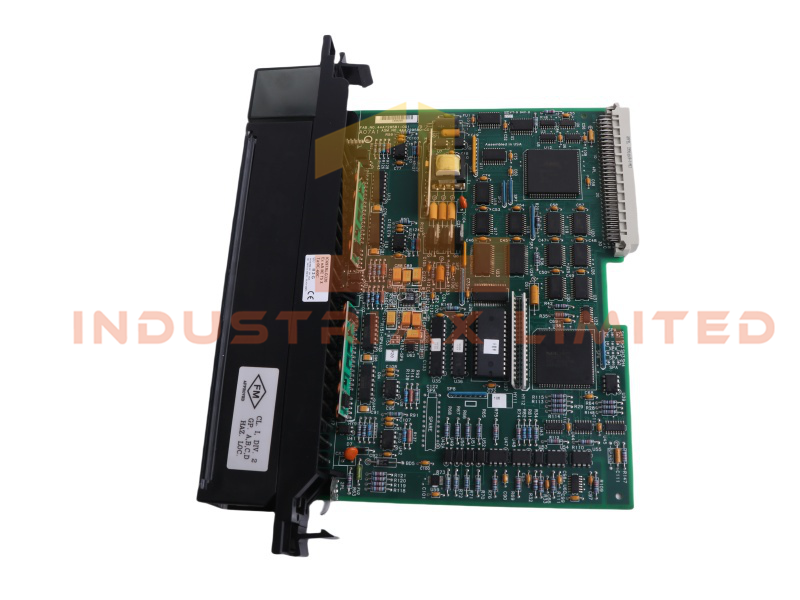

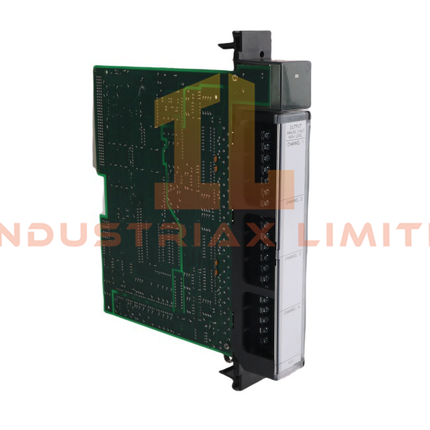

The IC697ALG320 High-Level Analog Output Module from GE Fanuc’s Series 90-70 PLC family delivers precise analog signal control across four configurable channels. Each channel supports either ±10VDC voltage or 0–20mA / 4–20mA current output, making it ideal for industrial automation systems requiring flexible analog interfacing.
This module features a 16-bit digital-to-analog converter with resolution of 312.5µV per LSB for voltage and 0.5µA per LSB for current. It operates with a fast 2.0ms conversion rate across all channels and stores calibration data in non-volatile EEPROM memory. The IC697ALG320 includes diagnostics for overrange, underrange, open-wire detection, and module health monitoring.
Technical Specifications
| Specification |
Details |
| Model Number |
IC697ALG320 |
| Module Type |
Analog Output Module |
| Product Series |
Series 90-70 |
| Manufacturer |
GE Fanuc |
| Dimensions |
4 × 22 × 29.3 cm |
| Weight |
0.66 kg |
| Output Channels |
4 (individually configurable) |
| Voltage Output Range |
±10 VDC |
| Current Output Range |
0–20 mA / 4–20 mA |
| DAC Resolution |
16-bit |
| Voltage Resolution |
312.5 µV per LSB |
| Current Resolution |
0.5 µA per LSB |
| Conversion Rate |
2.0 ms (all channels) |
| Calibration Storage |
EEPROM (non-volatile) |
| Diagnostics |
Overrange, underrange, open-wire |
| Voltage Load Support |
2000 Ω resistive, 1000 pF capacitive |
| Current Load Support |
700 Ω resistive, 1 µF capacitive, 250 mH inductive |
| Temperature Coefficient |
25 PPM/°C (voltage), 50 PPM/°C (current) |
| Power Consumption |
1.66 A @ 5VDC, 150 mA user supply |
| Rack Capacity |
7 units (CPU rack), 8 units (expansion rack) |
| Configuration Software |
Supports range selection, scaling, fault reporting |
| Compliance |
CE, UL/CUL 508 |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Origin |
USA |
| System Compatibility |
PLC |
| Discontinued Status |
Active |
| Minimum Order Quantity |
1 |
| Lead Time |
In Stock |
Features & Benefits
-
The IC697ALG320 supports both voltage and current outputs with high-resolution 16-bit DAC.
-
Each channel is independently configurable for flexible signal control.
-
EEPROM calibration ensures consistent accuracy across operating conditions.
-
Diagnostic features enhance system reliability and simplify troubleshooting.
-
Supports scalable installations with up to 252 output channels across racks.
