Description

Overview

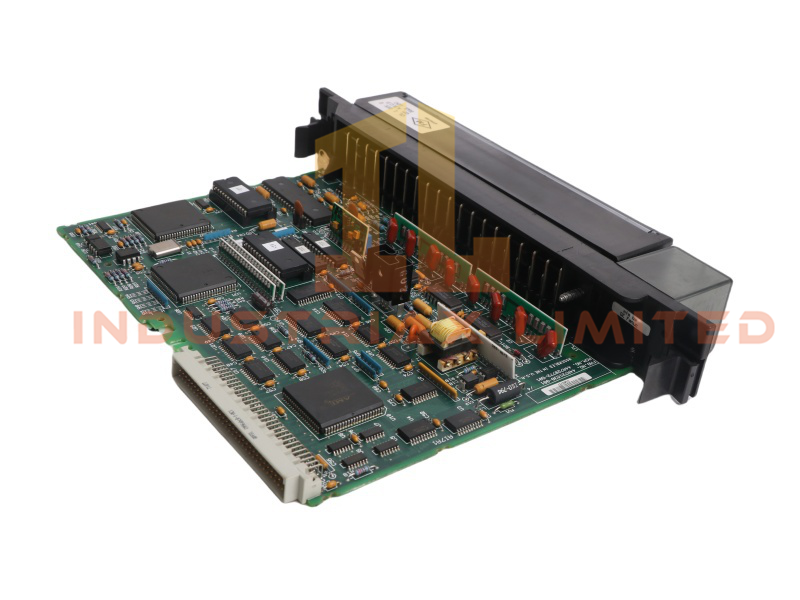

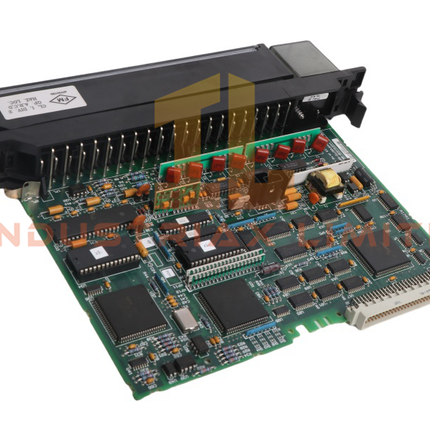

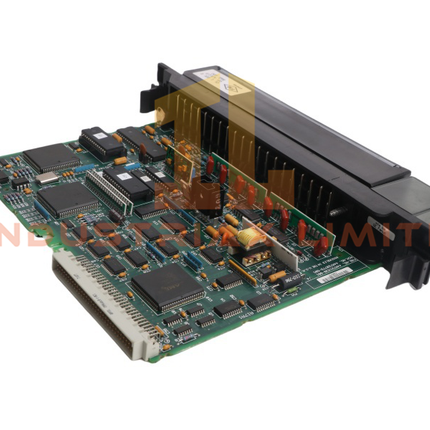

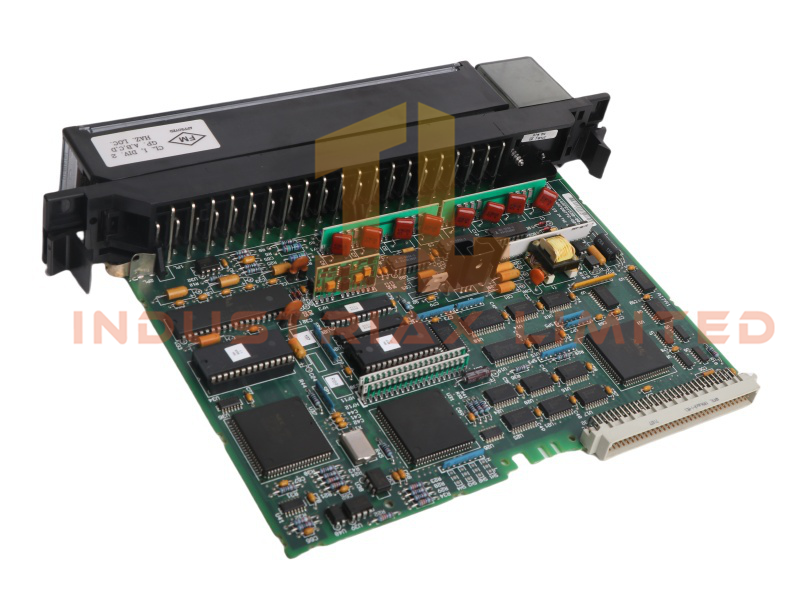

The IC697ALG230 Analog Input Base Conversion Module from GE Fanuc offers high-precision analog signal processing for Series 90-70 PLC systems. It supports eight differential channels configurable for voltage or current inputs, including ±10VDC and 4–20mA ranges.

Each channel features 16-bit resolution and individual low-pass filters to reduce noise. The IC697ALG230 includes a 14-bit ADC and opto-isolation to protect against electromagnetic interference. Its modular design supports expansion up to 120 input channels using compatible expander modules.

Technical Specifications

Specification	Details
Model Number	IC697ALG230
Manufacturer	GE
Module Type	Analog Input Base Conversion
Product Range	Series 90-70
System Compatibility	PLC
Communication Service	Ethernet Router
Input Channels	8 differential
Input Signal Range	±10VDC, 4–20mA
Resolution	16-bit
ADC	14-bit
Dimensions (H×W×D)	4 × 21.7 × 29.1 cm
Weight	0.64 kg
HS Code	8537101190
Minimum Order Quantity	1
Product Origin	USA
Condition	Brand New
Availability	In Stock
Discontinued Status	Active

Key Features

• Supports voltage and current inputs with high-resolution conversion.

• Includes low-pass filters on each channel for signal clarity.

• Opto-isolation protects against EMI and electrical noise.

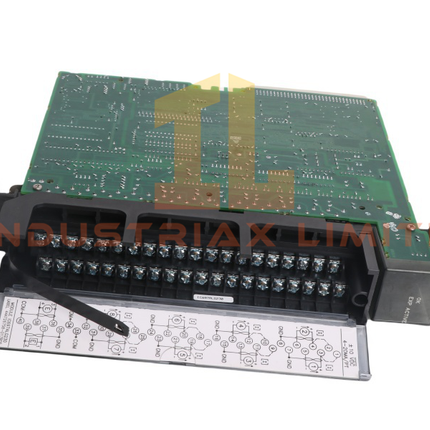

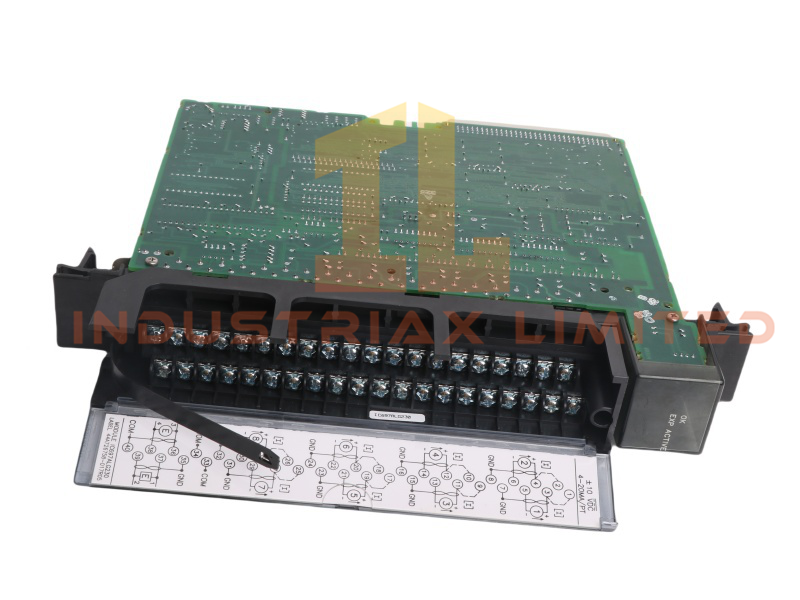

• Removable 40-terminal block simplifies wiring and maintenance.

• Compatible with up to seven expansion modules for system scalability.

Specifications

• Dimensions: 4 × 21.7 × 29.1 cm
• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
