Description

Product Description

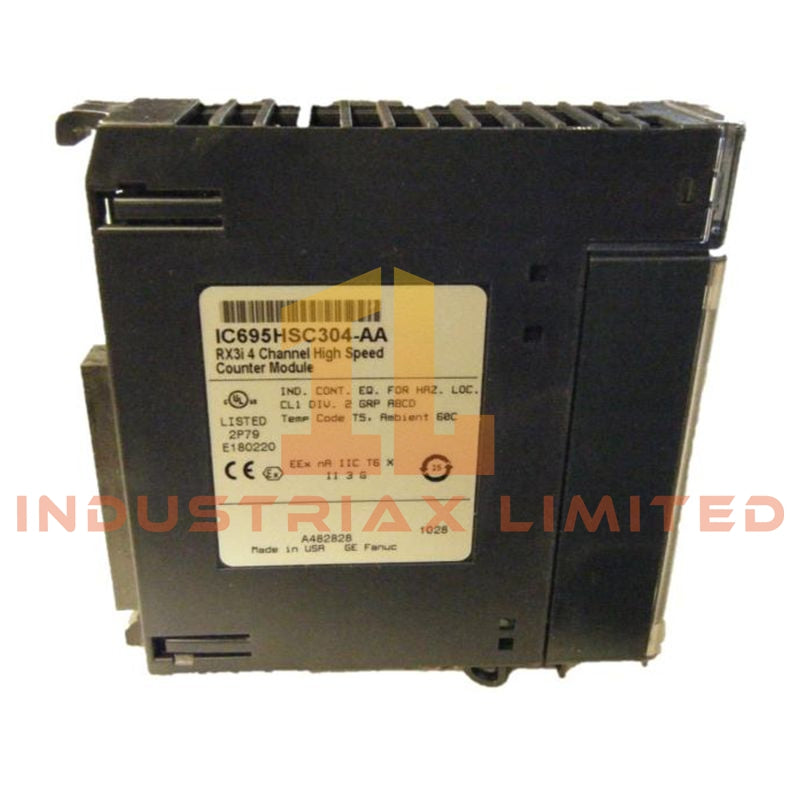

The IC695HSC304 is a dedicated high-speed counting module for the GE Fanuc / Emerson PACSystems RX3i platform, developed for precise pulse acquisition and motion-related measurements. Unlike standard I/O modules, it processes high-frequency signals locally, eliminating dependence on PLC scan time and ensuring accurate real-time performance.

With support for multiple counting modes and high-frequency inputs, the module is suitable for encoder feedback, flow measurement, and fast event tracking. Integrated outputs and interrupt capabilities allow it to directly control field devices based on counting conditions.

Technical Specifications

General Information

• Model: IC695HSC304

• Manufacturer: GE Fanuc / Emerson

• Series: PACSystems RX3i

• Product Type: High-Speed Counter Module

• Compatibility: RX3i Universal Backplane

• Weight: 0.74lbs

Counter & I/O Configuration

• Counters: up to 4 independent counters

• High-speed inputs: 8 configurable channels

• High-speed outputs: 7 channels

• Counter modes supported: A, B, C, D, E, Z, and user-defined

• Quadrature (A/B) encoder support included

Performance Characteristics

• Maximum count frequency:

• Up to 1.5 MHz (standard modes)

• Up to 750 kHz (Type C / custom modes)

• Internal sampling: 40 MHz (enhanced noise rejection)

• Response time: ≤ 2 µs

• Counting range: 32-bit signed integer

• −2,147,483,648 to +2,147,483,647

Electrical Specifications

• Input voltage options:

• 5 VDC range (approx. 4.7–5.5 VDC)

• 12–24 VDC range (approx. 10–26.4 VDC)

• Input type: positive logic high-speed signals

• Output voltage range: 4.7–40 VDC

• Output protection: electronic short-circuit protection (ESCP)

• Peak channel current: up to 1.5 A

• Peak module output current: up to 10.5 A

Functional Capabilities

• Hardware-based pulse processing independent of CPU scan

• Programmable limit switch (PLS) functionality

• Configurable input filtering

• Event-driven interrupts for precise control actions

• Integrated high-speed output control

Diagnostics & Maintenance

• Module fault monitoring and reporting

• Terminal block presence detection

• Firmware upgrade via onboard flash memory

• Supports hot insertion and removal (RIUP)

Power Requirements

• 3.3 VDC backplane: approx. 457 mA

• 5 VDC backplane: approx. 64 mA

Mechanical & Installation

• Dimensions: 34 × 145 × 140 mm

• Mounting: RX3i Universal Backplane

Key Features

• Four independent high-speed counter channels

• Handles input frequencies up to 1.5 MHz

• Integrated high-speed inputs and outputs

• Quadrature encoder and multi-mode counting support

• Real-time processing without CPU dependency

• Programmable limit switch functionality

• Built-in diagnostics and interrupt handling

Applications

The module is widely used in high-speed automation tasks such as turbine flow measurement, conveyor tracking, packaging machinery, encoder-based positioning, and other motion-related systems requiring fast and accurate pulse counting.

FAQ

Q: Does the module rely on the PLC scan cycle for counting?
A: No, counting is handled by dedicated hardware, ensuring accurate high-speed performance independent of CPU scan time.

Q: Can it interface with encoders?
A: Yes, it supports quadrature (A/B) encoder inputs for position and speed tracking.

Q: What is the maximum input frequency supported?
A: Up to 1.5 MHz in standard counting modes.

Q: Are outputs protected against faults?
A: Yes, outputs include electronic short-circuit protection for safe operation.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
