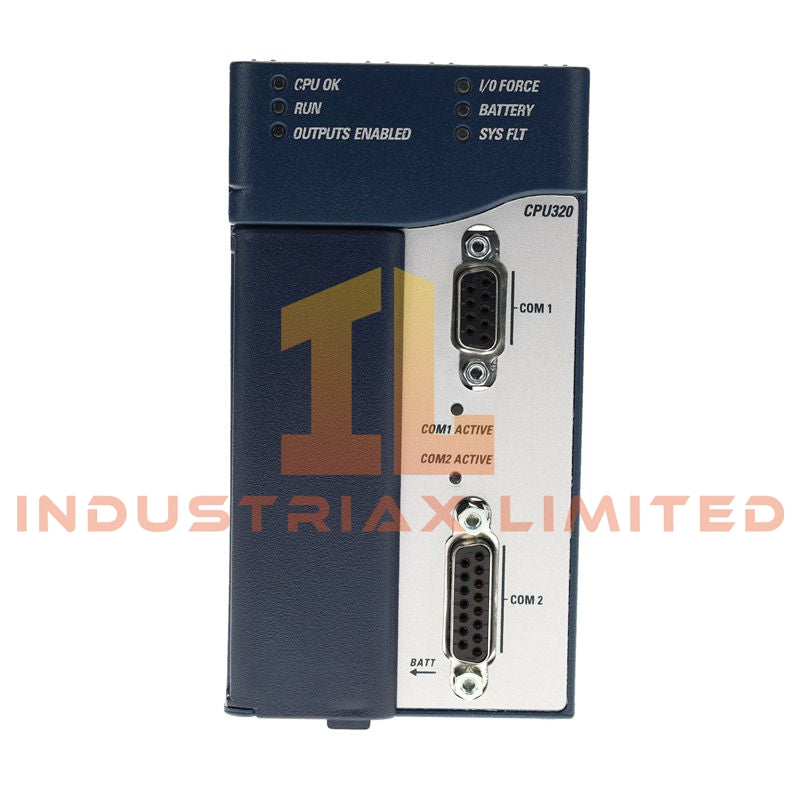

The IC695CPU320 is a mid-performance CPU module built for the PACSystems RX3i PLC series. It delivers stable processing power, ample memory, and integrated communication options, making it suitable for medium-to-large automation projects and process control applications.
Designed for continuous industrial operation, this CPU module supports multiple local racks and remote I/O devices. It features dual serial ports and a built-in Ethernet interface for SCADA, HMI, and peer-to-peer communication. Programming is supported via ladder logic, Structured Text, or C language using Proficy Machine Edition software, allowing flexible control and data handling.
Technical Specifications
| Feature |
Specification |
| Model |
IC695CPU320 |
| Manufacturer |
GE Fanuc / Emerson |
| Series |
PACSystems RX3i |
| Module Type |
CPU Module |
| Processor |
1.0 GHz Celeron M microprocessor |
| RAM |
64 MB |
| NVRAM |
64 MB |
| I/O Capacity |
Supports thousands of I/O points across multiple racks |
| Communication Ports |
Ethernet 10/100 Mbps, RS-232, RS-485 |
| Programming Support |
Ladder Logic, Structured Text, C |
| Protocols Supported |
SRTP, Modbus TCP/IP, Ethernet Global Data (EGD), Modbus RTU |
| Expansion |
Multiple racks and remote I/O supported |
| Slot Requirement |
Occupies two RX3i slots |
| Battery |
External high-capacity Lithium Smart Battery (IC695ACC302) |
| Maximum Program Blocks |
512 |
| Maximum Block Size |
128 KB |
| Operating Temperature |
0°C to +60°C |
| Weight |
1.54 lbs |
| Dimensions |
Standard RX3i rack size |
Key Features & Benefits
Reliable Processing: 1.0 GHz CPU ensures consistent execution of control programs.
Adequate Memory: 64 MB RAM and 64 MB NVRAM support medium-to-large applications.
Integrated Communication: Built-in Ethernet and serial ports provide robust network connectivity.
Multi-Protocol Support: Compatible with SRTP, Modbus TCP/IP, EGD, and Modbus RTU.
Flexible Expansion: Supports multiple local racks and remote I/O configurations.
Industrial Durability: Designed for continuous operation in harsh industrial environments.
Applications
-
Medium-to-large process control systems
-
Machine automation requiring networked PLC solutions
-
SCADA and HMI integrated systems
-
Multi-rack PACSystems RX3i architectures
FAQ
Q: How many slots does IC695CPU320 occupy?
A: This module occupies two RX3i slots.
Q: Which programming languages can I use?
A: Supports Ladder Logic, Structured Text, and C via Proficy Machine Edition.
Q: Does it support Ethernet communication?
A: Yes, it includes a built-in 10/100 Mbps Ethernet port.
Q: What kind of battery is required?
A: IC695ACC302 Lithium Smart Battery for NVRAM backup.
