Description
Product Description

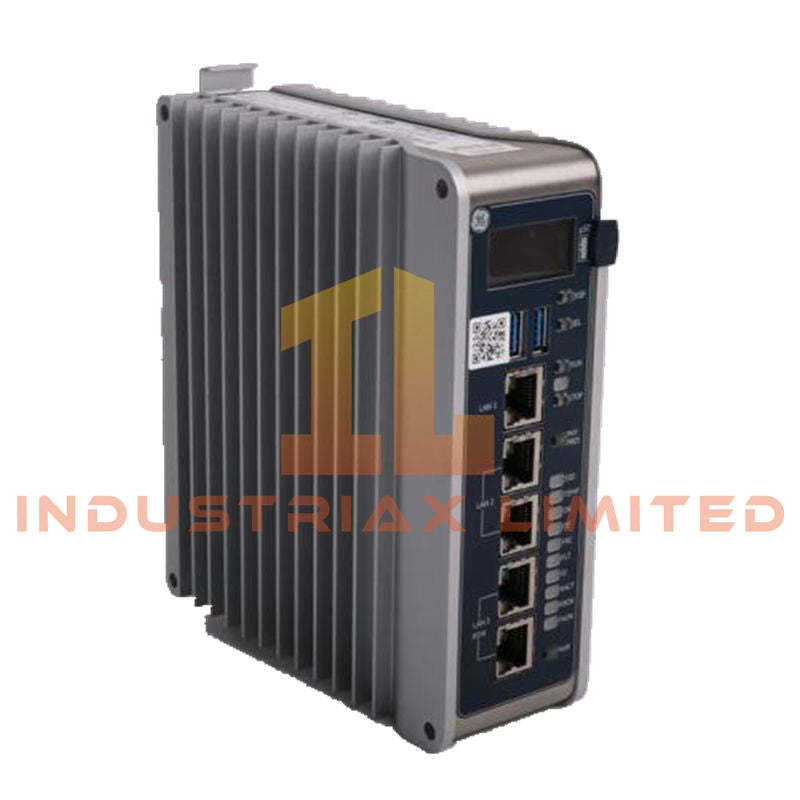

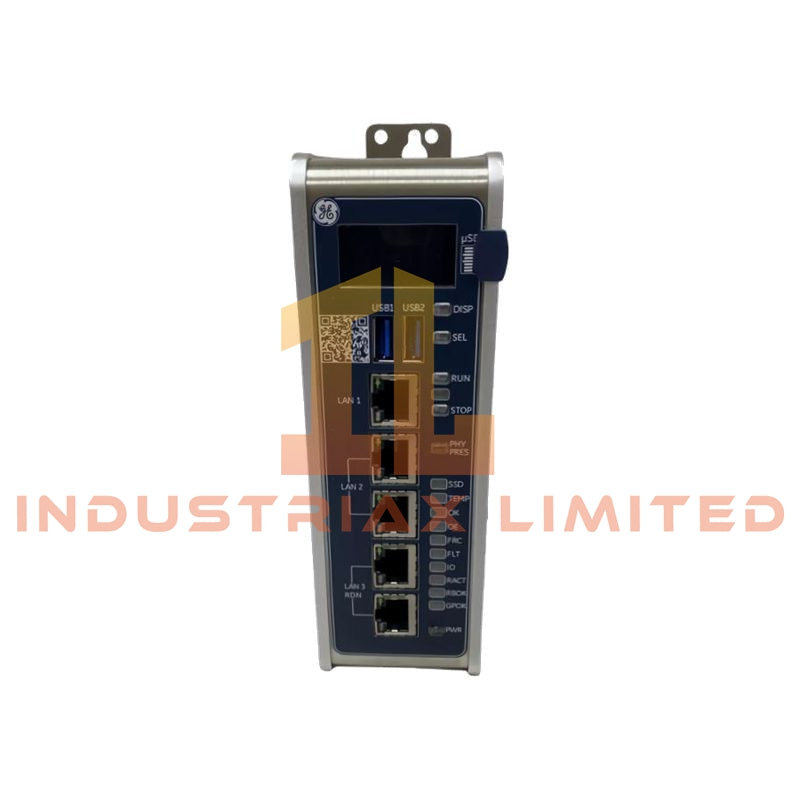

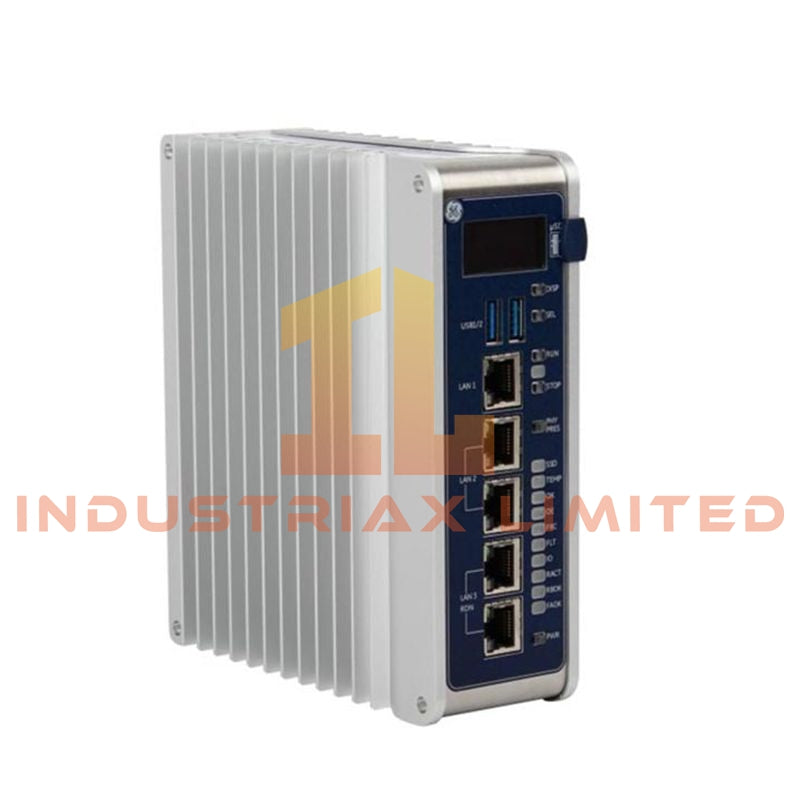

The IC695CPL410 is a high-performance rackless CPU designed for the GE Fanuc / Emerson PACSystems RX3i platform. It combines deterministic PLC control with embedded edge computing capabilities, allowing industrial users to run real-time automation tasks alongside data processing, analytics, and visualization within a single device.
Built around a quad-core AMD processor and supporting both VxWorks and a Linux-based PACEdge environment, this controller is intended for modern distributed architectures where control and data converge. It is suitable for applications requiring high-speed processing, advanced networking, and secure connectivity to enterprise or cloud systems.
Technical Specifications
General Information
-
Model: IC695CPL410
-
Manufacturer: GE Fanuc / Emerson
-
Series: PACSystems RX3i
-
Product Type: Rackless CPU / Edge Controller
-
Mounting: DIN rail or panel mount
-
Weight: 0.9 kg
Processor & System Architecture
-
CPU: AMD G-Series quad-core processor (approx. 1.2 GHz)
-
Real-time OS: VxWorks
-
Edge environment: Linux-based PACEdge platform
-
Supports concurrent execution of control logic and edge applications
Memory & Storage
-
User memory: 64 MB
-
Program block capacity: up to 768 blocks
-
Maximum block size: 128 KB
-
Removable Data Storage Device (RDSD): supported
-
Internal storage for logs, web HMI, and analytics applications
Communication Interfaces
-
Ethernet ports: multiple Gigabit Ethernet interfaces (front-access)
-
Ethernet LANs: supports up to 4 independent networks
-
Serial interface: 1 × RJ45 (RS-232 compatible)
-
USB: 2 × USB 3.0 host ports
-
Video output: DisplayPort (for local visualization)
Supported Protocols
-
PROFINET IO (controller/device functionality)
-
OPC UA for secure data exchange
-
Modbus TCP/IP
-
Web-based HMI via PACEdge
Control Performance & Capacity
-
Discrete I/O capacity: up to 32,000 points
-
Analog capacity: up to 32,000 words
-
Execution speed: up to 0.15 µs per instruction
-
System scan rates: as low as 3 ms depending on configuration
Power Requirements
Environmental Specifications
-
Operating temperature: –40 °C to +70 °C
-
Storage temperature: –40 °C to +85 °C
-
Humidity: 5–95% non-condensing
-
Optional conformal coating for harsh environments
-
Marine certifications available (ABS, DNV-GL, BV, LR)
Security Features
-
Secure boot mechanism
-
Trusted Platform Module (TPM) hardware
-
Encrypted communications and authentication
-
Protection against unauthorized firmware and network-based threats
Redundancy & Availability
-
Supports hot-standby CPU redundancy
-
Switchover time: as fast as 300 ms
-
PROFINET system redundancy support
Key Features
-
Integrated PLC control and edge computing platform
-
Quad-core processor for high-speed execution
-
Multiple Gigabit Ethernet interfaces for network segmentation
-
Built-in industrial protocols including OPC UA and PROFINET
-
Advanced cybersecurity with TPM and secure boot
-
Wide temperature operation for demanding environments
Applications
The controller is suited for distributed control systems, smart manufacturing, energy management, and IIoT deployments. It is particularly effective in architectures requiring local data processing, edge analytics, and seamless integration with SCADA or cloud platforms.
FAQ
Q: Does this CPU require a traditional rack?
A: No, it is a rackless design and can be mounted directly on a panel or DIN rail.
Q: Can control and edge applications run simultaneously?
A: Yes, real-time control runs on VxWorks while Linux-based PACEdge handles data processing and applications.
Q: What redundancy options are available?
A: The module supports hot-standby redundancy with fast switchover, as well as PROFINET system redundancy.
Q: Is it suitable for harsh environments?
A: Yes, it operates from –40 °C to +70 °C and offers optional conformal coating and marine certifications.
