Description
Product Overview

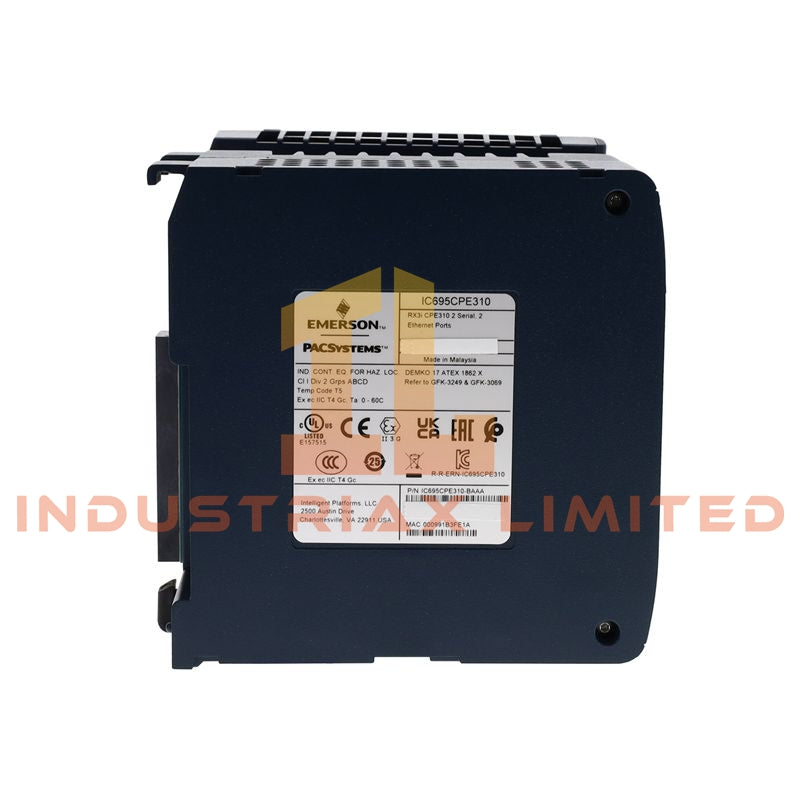

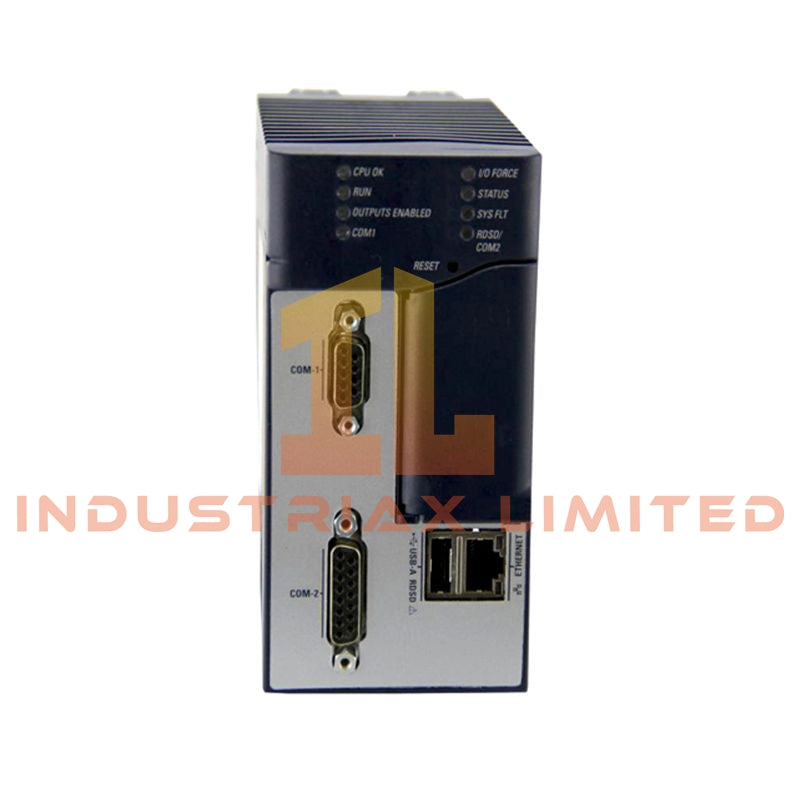

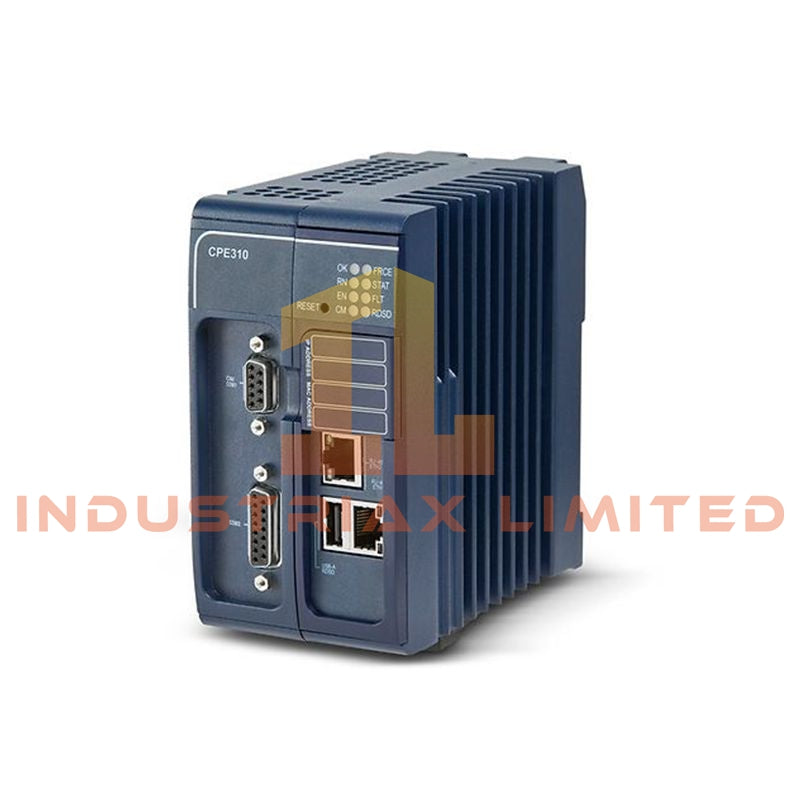

The IC695CPE310 is a mid-range CPU module from the GE Fanuc PACSystems RX3i series (now Emerson Automation). Engineered for real-time control of machines, processes, and material handling systems, it integrates high-speed processing, flexible memory options, and multiple communication interfaces to support complex automation tasks. Its design ensures reliability and scalability for demanding industrial applications.
Technical Specifications
| Feature |
Specification |
| Model |
IC695CPE310 |
| Series |
PACSystems RX3i |
| Module Type |
Central Processing Unit (CPU) |
| Processor Speed |
1.1 GHz |
| User Memory |
10 MB RAM + 10 MB non-volatile flash |
| Memory Retention |
Battery-less; optional Energy Pack ensures data retention during power loss |
| Boolean Execution Speed |
0.72 ms/k |
| I/O Capacity |
Up to 32K discrete I/O and 32K analog I/O |
| Local Rack Support |
Up to 8 racks |
| Backplane Interface |
Dual PCI/serial backplane for I/O and option modules |
| Programming Languages |
Ladder Diagram, Structured Text, Function Block Diagram, C |
| Communication Ports |
1 Ethernet (10/100 Mbps), 1 RS-232, 1 RS-485, 1 USB Master |
| Supported Protocols |
SNP, Serial I/O, Modbus Master, Modbus Slave |
| Floating Point Support |
Yes |
| Power Requirements |
1 A @ +5V/+3.3V DC; 0.5 A @ +24V DC |
| Number of Slots |
2 |
| Weight |
3.75 lbs |
Key Features
-
High-Speed Processing: 1.1 GHz CPU for rapid execution of automation tasks.
-
Flexible Communication: Multiple serial, Ethernet, and USB interfaces enable seamless network integration.
-
Memory Reliability: SRAM and flash memory with optional Energy Pack ensures program and data integrity during outages.
-
Scalability: Supports large I/O counts and multiple local racks for complex systems.
-
Programming Flexibility: Compatible with IEC 61131-3 languages and C for advanced control logic.
Applications
-
Manufacturing Automation: Assembly lines, robotic workcells, and machine control.
-
Process Control: Chemical, food, and pharmaceutical plant automation.
-
Material Handling: Conveyors, automated storage systems, and logistics equipment.
-
Utility Systems: Water treatment, HVAC, and power distribution monitoring.
Practical Considerations
-
Only compatible with PACSystems RX3i racks and I/O modules.
-
Mid-range CPU suitable for most industrial applications but may be outperformed by high-end RX3i models.
-
Ensure proper cooling and power supply for optimal operation.
FAQ
Q: Does IC695CPE310 support Modbus communication?
A: Yes, it supports both Modbus Master and Modbus Slave protocols over serial and Ethernet interfaces.
Q: Can I use this CPU with Series 90-30 modules?
A: No, it is only compatible with PACSystems RX3i racks and modules.
Q: What happens during a power outage?
A: Standard battery-less retention preserves essential logic; optional Energy Pack allows full program/data retention.
