Product Description

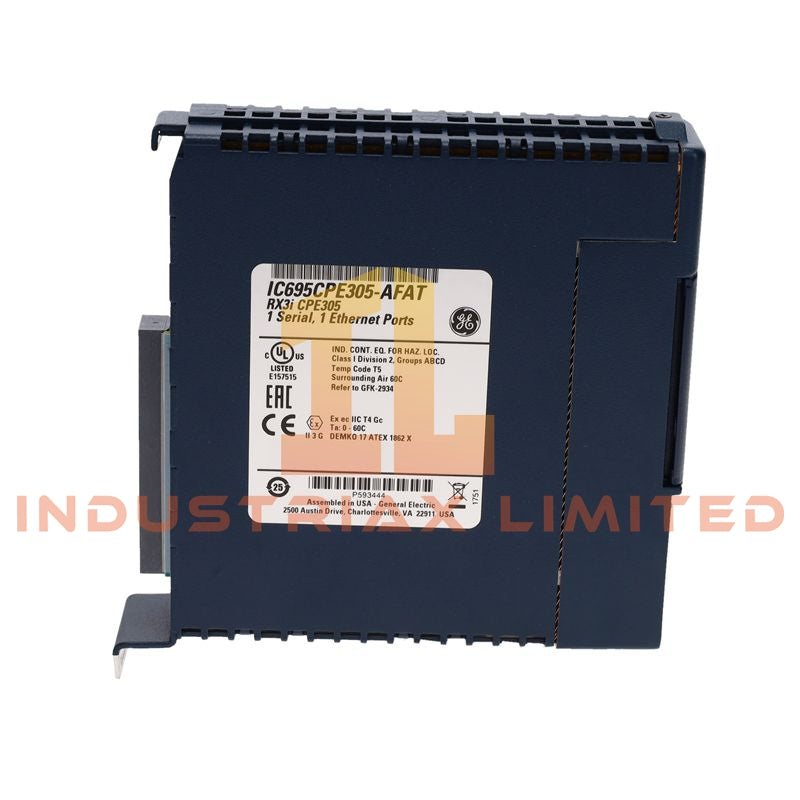

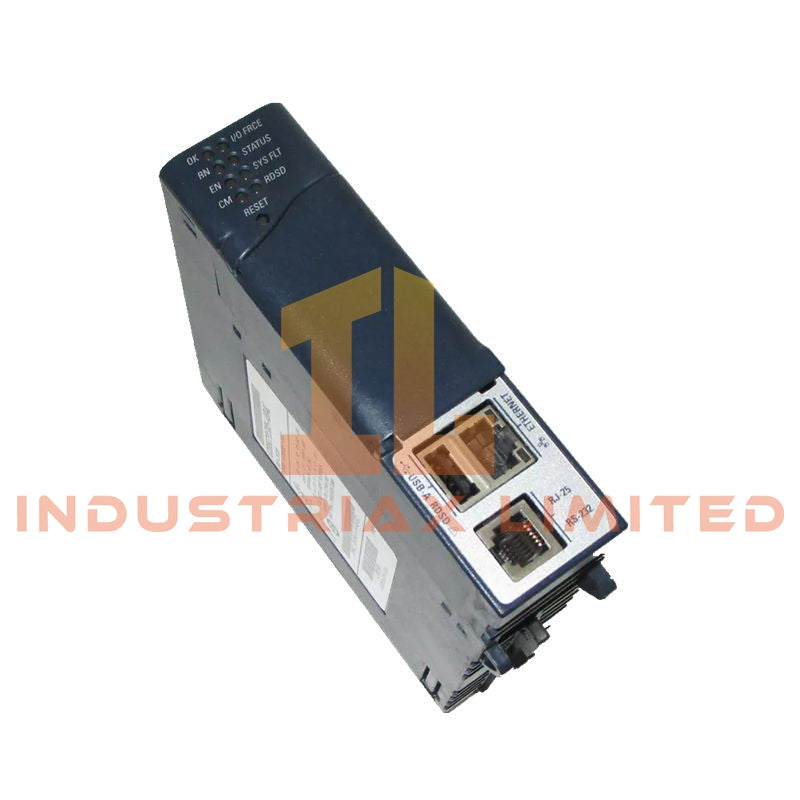

The IC695CPE305 is a high-performance CPU module designed for the PACSystems RX3i PLC series. It delivers fast processing, substantial memory capacity, and integrated communication capabilities, making it ideal for complex control applications and large-scale automation systems.
Built for reliability in demanding industrial environments, this CPU supports multiple racks and remote I/O configurations. It features a single-slot design compatible with RX3i backplanes, enabling seamless integration with Ethernet, RS-232, and RS-485 networks. Programmers can leverage ladder logic, Structured Text, or C via Proficy Machine Edition software to develop and manage control strategies efficiently.
Technical Specifications
| Feature |
Specification |
| Model |
IC695CPE305 |
| Manufacturer |
GE Fanuc / Emerson |
| Series |
PACSystems RX3i |
| Module Type |
CPU Module |
| Processor |
1.1 GHz microprocessor |
| Memory |
5 MB SRAM / 10 MB Flash / 64 MB RAM (expanded) |
| I/O Capacity |
Supports thousands of points across multiple racks |
| Communication Ports |
Built-in Ethernet 10/100 Mbps, RS-232, RS-485 |
| Supported Protocols |
SRTP, Modbus TCP/IP, EGD, Modbus RTU Slave, SNP |
| Programming Support |
Ladder Logic, Structured Text, C |
| Expansion |
Multiple racks, remote I/O supported |
| Number of Slots |
Single-slot CPU |
| Local Racks Supported |
Up to 8 |
| Floating Point |
Supported |
| Power Requirements |
+5V 1A, +3.3V 1A, +24V 0.5A |
| Operating Temperature |
0°C to +60°C |
| Dimensions |
Standard RX3i rack size |
| Weight |
0.45 kg |
Key Features & Benefits
High-Speed Processing: 1.1 GHz CPU enables rapid execution of complex logic and data manipulation.
Large Memory Support: SRAM and Flash memory provide storage for extensive user programs and configurations.
Integrated Networking: Ethernet and serial ports facilitate SCADA, HMI, and peer-to-peer communication.
Multi-Protocol Compatibility: SRTP, Modbus TCP/IP, EGD, and serial protocols ensure flexible integration with other devices.
Scalable System Design: Supports multiple local racks and remote I/O modules for expansive automation projects.
Applications
-
Central processing for PACSystems RX3i PLC networks
-
Large-scale process control systems
-
Machine automation requiring high-speed computation
-
Data-intensive industrial applications
FAQ
Q: What programming languages are supported?
A: Ladder Logic, Structured Text, and C programming via Proficy Machine Edition.
Q: How many local racks can IC695CPE305 support?
A: Up to 8 local RX3i racks.
Q: Does it support floating point operations?
A: Yes, floating point math is fully supported.
Q: Which communication protocols are compatible?
A: SRTP, Modbus TCP/IP, Ethernet Global Data (EGD), Modbus RTU, and SNP.
