Product Description

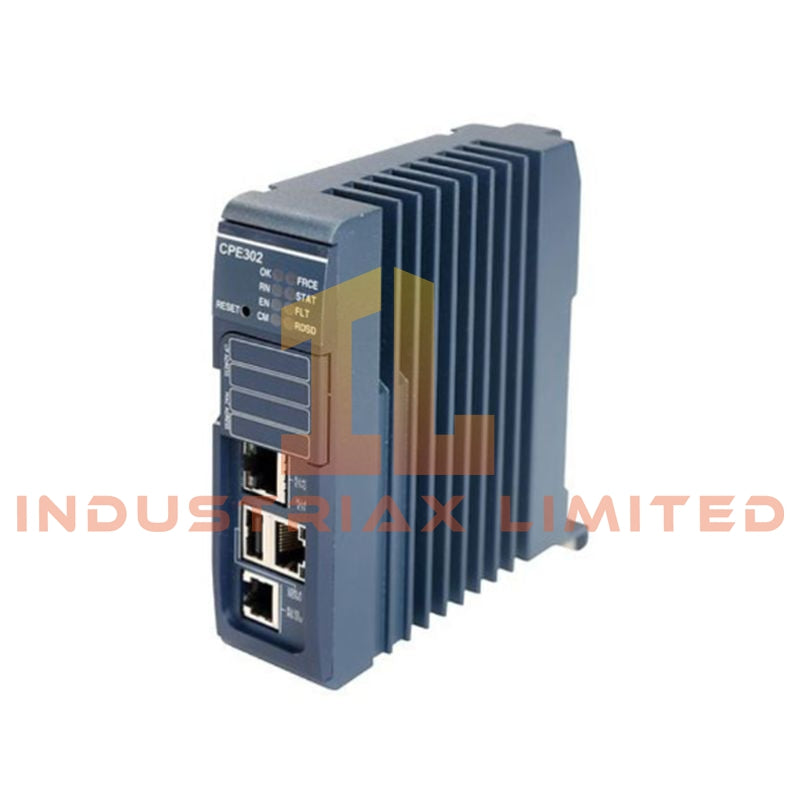

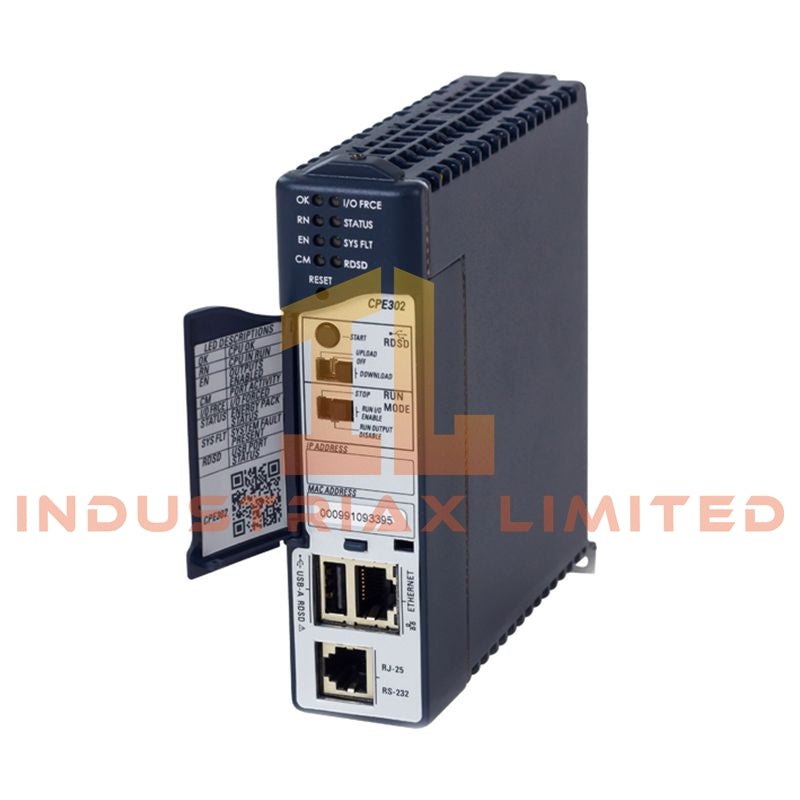

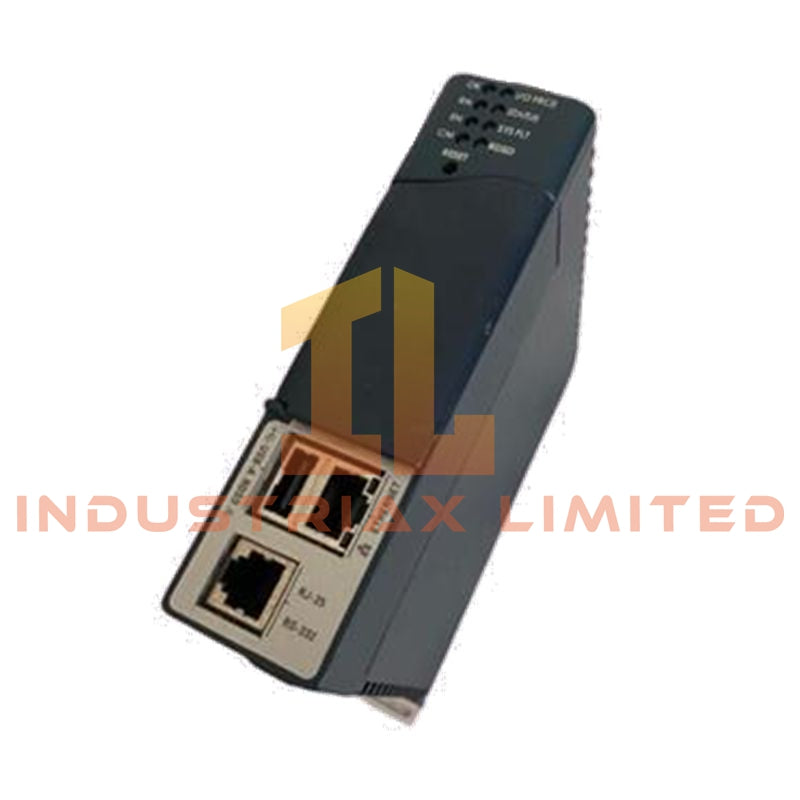

The IC695CPE302 is a compact, high-speed CPU module developed for the GE Fanuc / Emerson PACSystems RX3i platform. It delivers reliable control performance for medium to large automation systems, combining fast processing, integrated communications, and flexible protocol support in a single controller.

Equipped with a 1.1 GHz processor and built-in networking interfaces, this CPU is designed to handle distributed control architectures, enabling seamless integration with field devices, SCADA systems, and industrial networks. Its support for modern communication standards makes it suitable for both legacy upgrades and new installations.

Technical Specifications

General Information

• Model: IC695CPE302

• Manufacturer: GE Fanuc / Emerson

• Series: PACSystems RX3i

• Product Type: PLC CPU Module

• Installation: RX3i Universal Backplane

• Weight: 0.51 kg

Processor & Memory

• CPU speed: 1.1 GHz

• User memory: 2 MB

• Memory type: SRAM with non-volatile flash backup

• Data retention: energy pack (battery-free retention)

Communication Interfaces

• Ethernet: integrated dual-port Gigabit Ethernet switch (10/100/1000 Mbps)

• Serial port: 1 × RS-232

• USB: 1 × USB 2.0 (Type-A)

• Status indicators: multiple LED diagnostics

Supported Protocols

• SRTP (native GE communication)

• Modbus TCP/IP and Modbus RTU (slave)

• OPC UA for secure data exchange

• PROFINET (via external controller module)

• Ethernet Global Data (EGD)

• DNP3 Outstation

• IEC 61850 client and IEC 60870-5-104 server

• HART passthrough support

System Capacity

• Discrete I/O: up to 16,000 points

• Analog I/O: up to 32,000 words

• Remote I/O devices: up to 255 (with PROFINET controller module)

Power Requirements

• Backplane supply:

• 5 VDC / 3.3 VDC: approx. 1 A

• 24 VDC: approx. 0.5 A

Environmental Specifications

• Operating temperature: 0 °C to 60 °C

• Storage temperature: –40 °C to +85 °C

• Compliance: UL, cUL, CE, RoHS, FCC, ATEX Zone 2, CCC

• Marine approvals: ABS, BV, LR, DNV-GL

Programming & Engineering

• Programming languages:

• Ladder Diagram (LD)

• Structured Text (ST)

• Function Block Diagram (FBD)

• C language support

• Configuration software: Proficy Machine Edition

• Features: online editing, tag-based programming, reusable libraries

Key Features

• High-speed 1.1 GHz processor for responsive control

• Integrated dual-port Gigabit Ethernet

• Broad industrial protocol compatibility

• Battery-free memory retention using energy pack

• Scalable I/O capacity for distributed systems

• Designed for high availability with redundancy support (MRP)

Applications

The module is suitable for manufacturing automation, energy systems, water treatment, and process industries requiring reliable control and extensive communication capabilities. It is particularly effective in networked environments with multiple remote I/O stations and SCADA integration.

FAQ

Q: Does the CPU include built-in Ethernet switching?
A: Yes, it features a dual-port Gigabit Ethernet switch for network connectivity and topology flexibility.

Q: Can it be used with PROFINET networks?
A: Yes, PROFINET is supported when used with a compatible controller module such as PNC001.

Q: Is a battery required for memory retention?
A: No, it uses an energy pack for non-volatile data retention.

Q: What programming environments are supported?
A: It supports Ladder Logic, Structured Text, Function Block Diagram, and C programming within Proficy Machine Edition.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
