Product Description

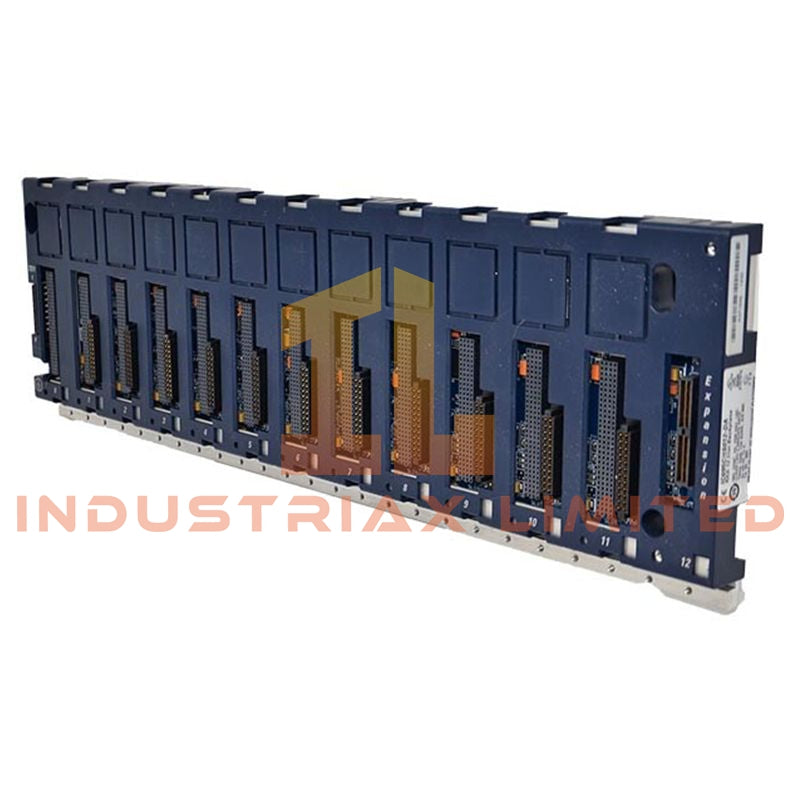

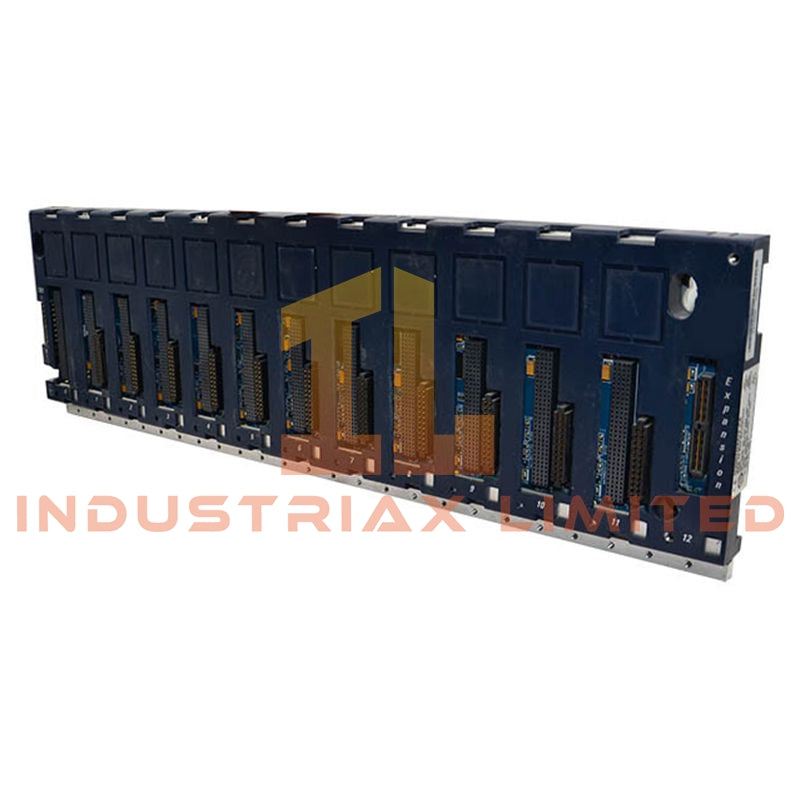

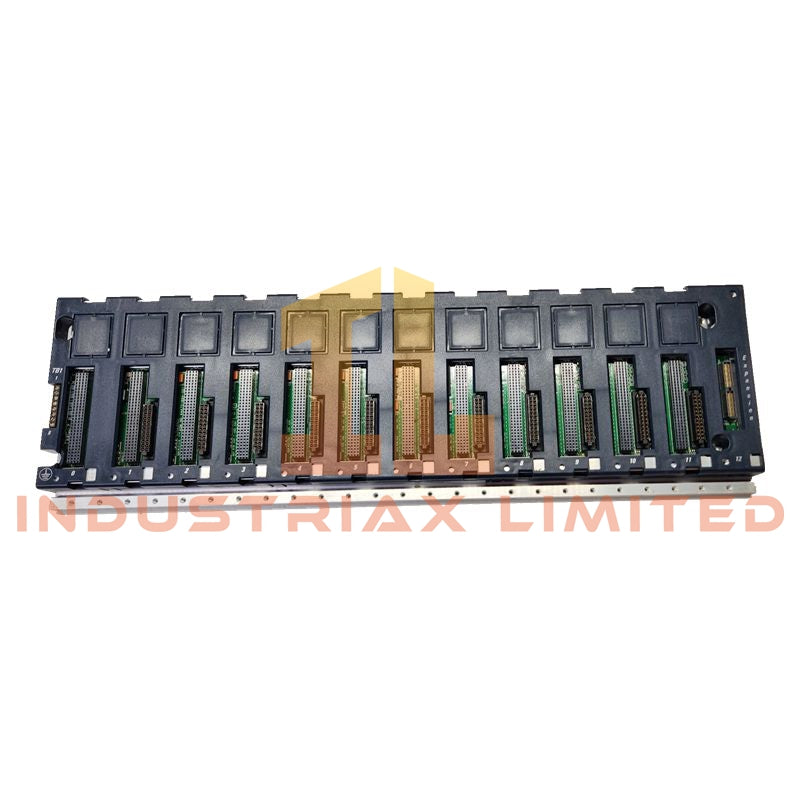

The IC695CHS012 is a 12-slot PLC rack designed for the PACSystems RX3i series, offering robust mechanical support and high-speed backplane connections for CPU, I/O, power supply, and communication modules. Its aluminum chassis ensures durability for continuous industrial operation while supporting flexible system expansion.
This rack provides reliable electrical interconnections with both PCI and high-speed serial backplane support, enabling multiple modules to communicate efficiently. It is engineered for horizontal mounting and includes sufficient internal power distribution for 3.3 VDC and 5 VDC modules. The IC695CHS012 is suitable for new installations or as an upgrade in existing RX3i architectures, supporting scalable automation systems.
Technical Specifications
| Feature |
Specification |
| Model |
IC695CHS012 |
| Manufacturer |
GE Fanuc / Emerson |
| Series |
PACSystems RX3i |
| Module Type |
PLC Rack / Chassis |
| Number of Slots |
12 |
| Backplane |
High-speed RX3i bus, supports PCI & High-Speed Serial |
| CPU & Module Support |
RX3i CPU, I/O, communication, specialty modules |
| Internal Power |
5 VDC: 240 mA; 3.3 VDC: 600 mA |
| Input Voltage |
+24 VDC |
| Mounting |
Rack, panel, or cabinet |
| Baseplate Options |
Controller Base, Ethernet Expansion Base |
| Required Protection |
NEMA/UL Type 1 (IP20) |
| Minimum Clearance |
102 mm (4 inches) on all sides |
| Mechanical Design |
Rugged aluminum chassis for industrial environments |
| Backplane Orientation |
Horizontal |
| Operating Temperature |
0°C to +60°C |
| Storage Temperature |
-40°C to +70°C |
| Dimensions |
141.4 x 457.2 x 147.3 mm |
| Weight |
4.0 lbs |
Key Features & Benefits
Flexible System Expansion: 12-slot configuration accommodates multiple CPU, I/O, and communication modules.
High-Speed Backplane: Ensures fast and reliable communication between modules.
Durable Construction: Aluminum chassis withstands industrial conditions for continuous operation.
Scalable Architecture: Supports multi-rack PACSystems RX3i installations.
Easy Installation: Compatible with panel or cabinet mounting and horizontal backplane orientation.
Applications
-
Central housing for PACSystems RX3i PLC modules
-
Large-scale process control or machine automation systems
-
Multi-rack industrial automation setups requiring high-speed communication
-
Upgrading or expanding existing RX3i installations
FAQ
Q: How many slots are available in the IC695CHS012?
A: The rack provides 12 slots for CPU, I/O, and communication modules.
Q: Is this rack compatible with Series 90-30 or 90-70 modules?
A: It is designed for RX3i modules; limited support for select 90-30 option modules, but not fully interchangeable with 90-70.
Q: What is the operating temperature range?
A: 0°C to +60°C for standard operation; storage range is -40°C to +70°C.
Q: Does it support hot-swap modules?
A: Yes, the IC695CHS012 supports how-swap functionality for compatible RX3i modules.
