Product Description

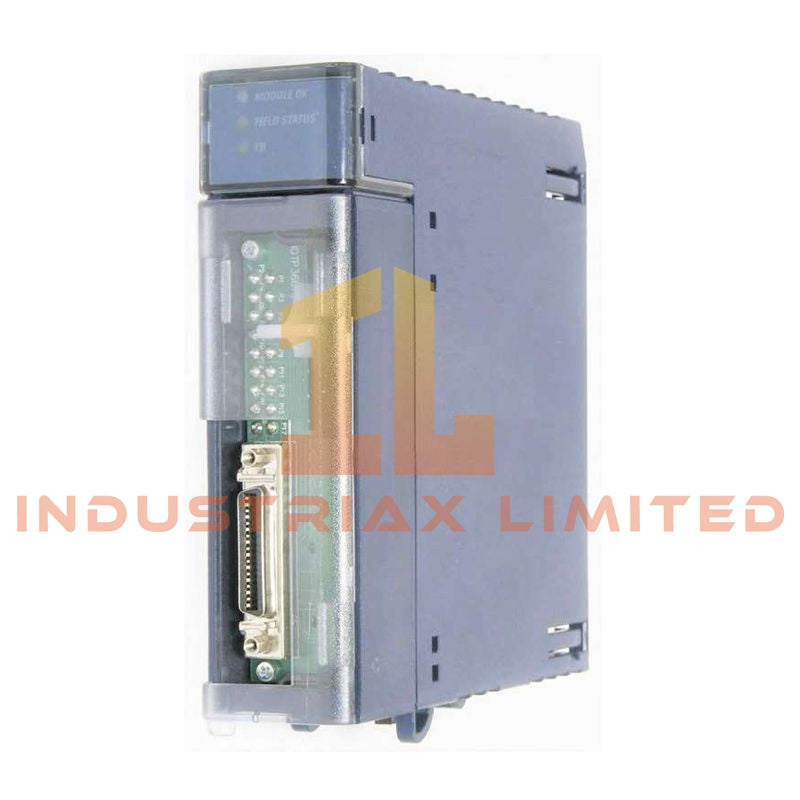

The IC695ALG708 analog output module is designed for the GE Fanuc / Emerson PACSystems RX3i platform, providing eight non-isolated output channels for precise control of field devices. Each channel can be configured independently via software to deliver either voltage or current signals, eliminating the need for hardware jumpers and simplifying commissioning.

Built for demanding control environments, the module supports standard industrial output ranges and delivers consistent performance with fast update cycles and integrated diagnostics. It requires an external 24 VDC supply for field-side operation and installs directly into the RX3i Universal Backplane.

Technical Specifications

General Information

• Model: IC695ALG708

• Manufacturer: GE Fanuc / Emerson

• Series: PACSystems RX3i

• Module Type: Non-isolated Analog Output

• Number of Channels: 8 configurable outputs

• Installation: RX3i Universal Backplane

• Weight: 0.43 kg

Output Configuration

• Per-channel selectable signal type

• Current outputs: 0–20 mA, 4–20 mA

• Voltage outputs: 0–10 V, ±10 V

Performance Characteristics

• Update time: approximately 8 ms (all channels)

• Resolution: up to 16-bit (range dependent)

• Accuracy: typically ±0.15% FS at 25°C, up to ±0.25% over temperature

• Output settling time: ~2 ms to 95%

• Data format: 32-bit IEEE floating point or 16-bit integer

Load Requirements

• Current mode load: up to 850 Ω (at 20 V supply)

• Voltage mode load: minimum 2 kΩ

Power Requirements

• Backplane supply: 3.3 VDC at 375 mA (typical)

• External supply: 19.2–30 VDC (24 V nominal)

• External current draw: approx. 315 mA

• Maximum power dissipation: 7.25 W

Isolation & Protection

• Non-isolated channel design (common reference)

• Transient protection suitable for standard industrial environments

Environmental Conditions

• Operating temperature: 0 °C to 60 °C

• Humidity: 5–95% non-condensing

Mechanical & Wiring

• Dimensions: 34 × 145 × 140 mm

• Compatible terminal blocks: IC694TBB032, IC694TBS032 (and extended variants)

Functional Features

• Independent channel configuration for mixed signal types

• Built-in alarm handling (high, low, high-high, low-low)

• Output limiting, bias adjustment, and ramp-rate control

• Automatic calibration and internal diagnostics

• Configurable fault behavior: hold last value or predefined safe output

Applications

This module is suited for applications requiring precise analog output control, including process regulation, motion control systems, dosing systems, and instrumentation interfaces. Its flexibility makes it suitable for both retrofit and new system designs within RX3i architectures.

FAQ

Q: Can voltage and current outputs be used simultaneously?
A: Yes, each channel is independently configurable, allowing mixed signal types within the same module.

Q: Does the module require an external power supply?
A: Yes, a 24 VDC external supply must be connected at the terminal block for output operation.

Q: Is the module isolated?
A: No, this is a non-isolated module, so proper grounding and signal reference design are important.

Q: What happens to outputs during a fault condition?
A: The module can be configured to either maintain the last output value or transition to a predefined safe state.
