Product Description

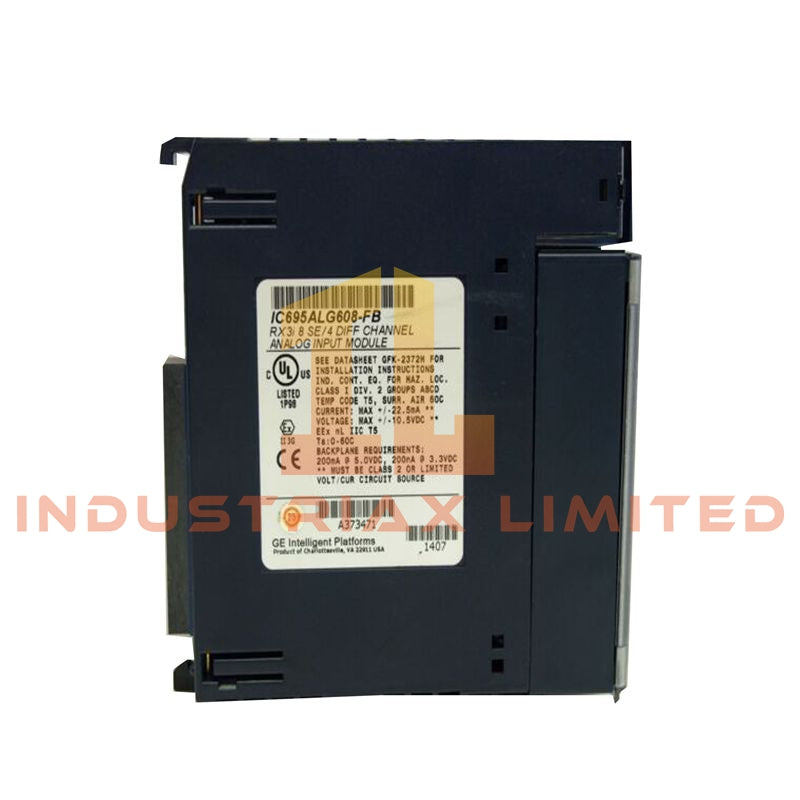

The IC695ALG608 from GE Fanuc / Emerson is a high-resolution analog input module developed for the PACSystems RX3i platform. It supports both single-ended and differential signal acquisition, offering flexibility for a wide range of industrial measurement tasks.

Designed with a 24-bit sigma-delta ADC, this module delivers precise and stable data acquisition, even in electrically noisy environments. All channels are software-configurable, allowing users to select voltage or current inputs, filtering options, and data formats without hardware changes.

Unlike isolated modules, this unit uses a non-isolated architecture, making it suitable for applications where signal references are common and high channel density is required.

Technical Specifications

General Information

• Model: IC695ALG608

• Manufacturer: GE Fanuc / Emerson

• Series: PACSystems RX3i

• Module Type: Non-isolated Analog Input

• Channel Configuration:

• 8 single-ended inputs

• 4 differential inputs

• Installation: RX3i universal backplane

• Weight: 0.65 lbs

Supported Input Ranges

• Current: 0–20 mA, 4–20 mA, ±20 mA

• Voltage: ±10 V, 0–10 V, ±5 V, 0–5 V, 1–5 V

• Low-level voltage ranges: ±50 mV, ±150 mV

Conversion & Performance

• ADC Type: 24-bit Σ-Δ converter

• Data formats: 32-bit IEEE floating point or 16-bit integer (packed in 32-bit field)

• Accuracy: ±0.05% full scale (typical, 13–33 °C)

• Input impedance (voltage): >100 kΩ

• Current input resistance: 249 Ω ±1%

Filtering & Signal Processing

• Selectable digital filters: 8, 12, 16, 40, 200, 500 Hz

• Automatic calibration at startup

• Open-circuit detection (voltage and 4–20 mA)

• Alarm functions: high/low limits and rate-of-change

Protection & Isolation

• Overvoltage protection: ±60 VDC continuous

• Overcurrent protection: ±28 mA continuous

• Note: Channel-to-backplane isolation is not provided (non-isolated design)

Power Requirements

• Backplane supply:

• 5 VDC: 330 mA max

• 3.3 VDC: 600 mA max

• Power dissipation: up to 4.83 W

Environmental Conditions

• Operating temperature: 0 °C to 60 °C (typical RX3i rating)

• Storage temperature: –40 °C to +85 °C

• Humidity: 5–95% non-condensing

Mechanical & Wiring

• Dimensions: 102 × 119 × 45 mm

• Compatible terminal blocks:

• IC694TBB032 / TBB132 (box-style)

• IC694TBS032 / TBS132 (spring-style)

Key Features

• Flexible channel configuration: single-ended or differential

• Wide support for industrial voltage and current signals

• 24-bit high-resolution conversion for precise measurements

• Software-defined filtering and scaling

• Built-in diagnostics and alarm capabilities

• Hot-swap capable in RX3i systems

Applications

Suitable for high-accuracy signal acquisition in process industries, energy systems, OEM machinery, and test environments. Particularly effective in applications requiring stable measurement of low-level analog signals.

FAQ

Q: Does this module provide channel isolation?
A: No, it is a non-isolated module. All inputs share a common reference, so proper grounding design is required.

Q: Can I mix voltage and current inputs on different channels?
A: Yes, each channel can be configured independently via software.

Q: What data formats are supported?
A: The module supports both 32-bit floating point and 16-bit integer formats.

Q: Is it suitable for low-level signal measurement?
A: Yes, it supports ranges as low as ±50 mV with high resolution.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
