Description

Overview

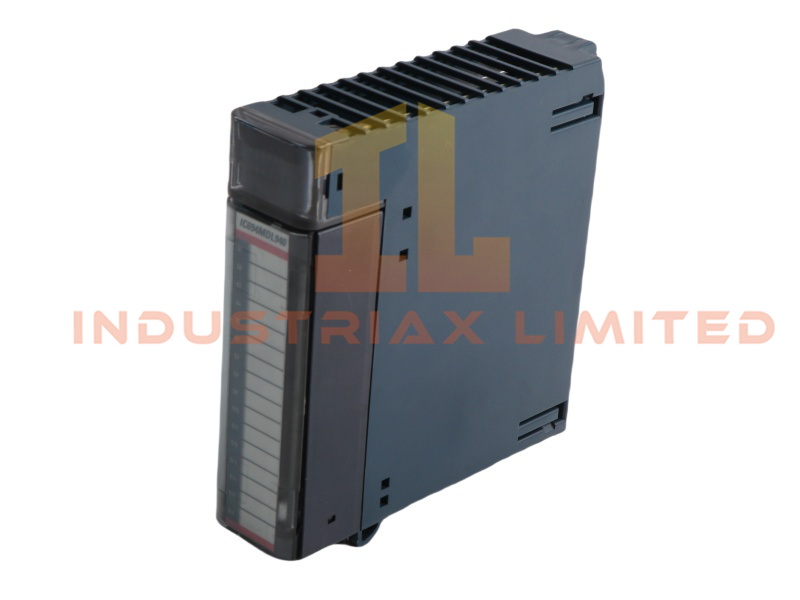

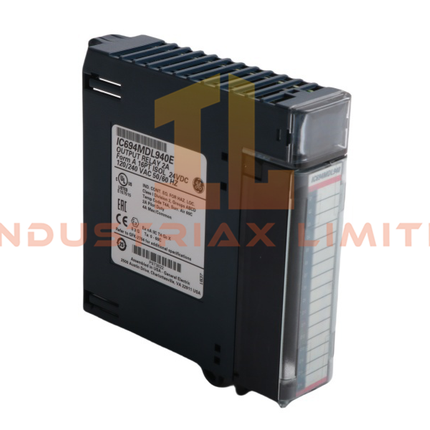

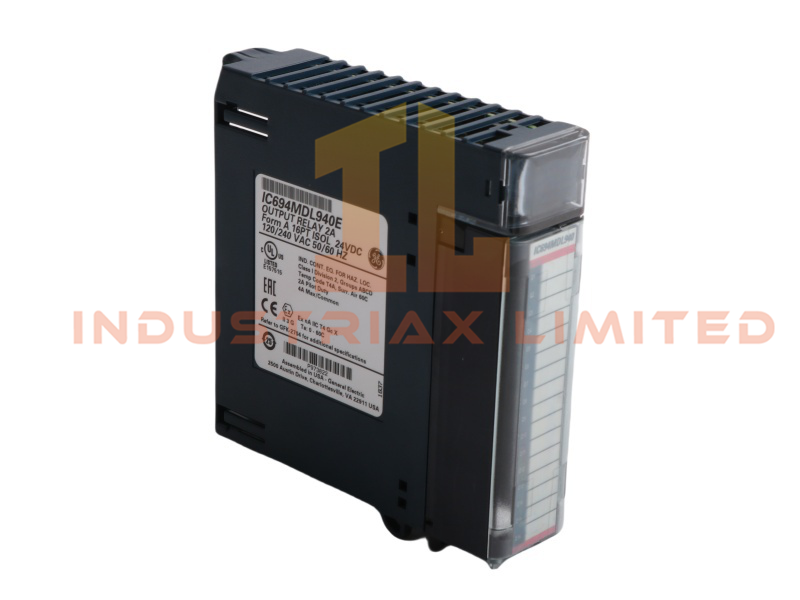

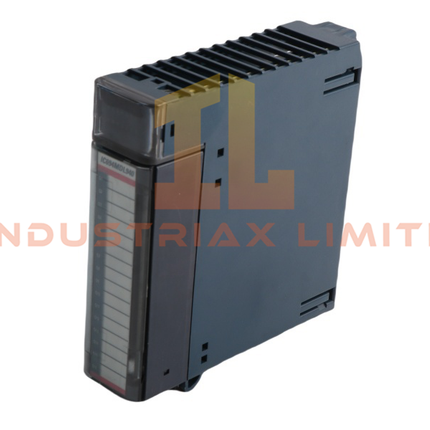

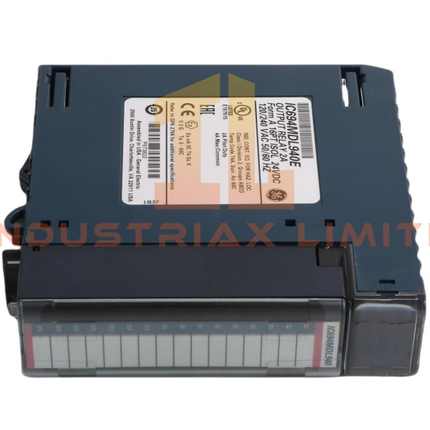

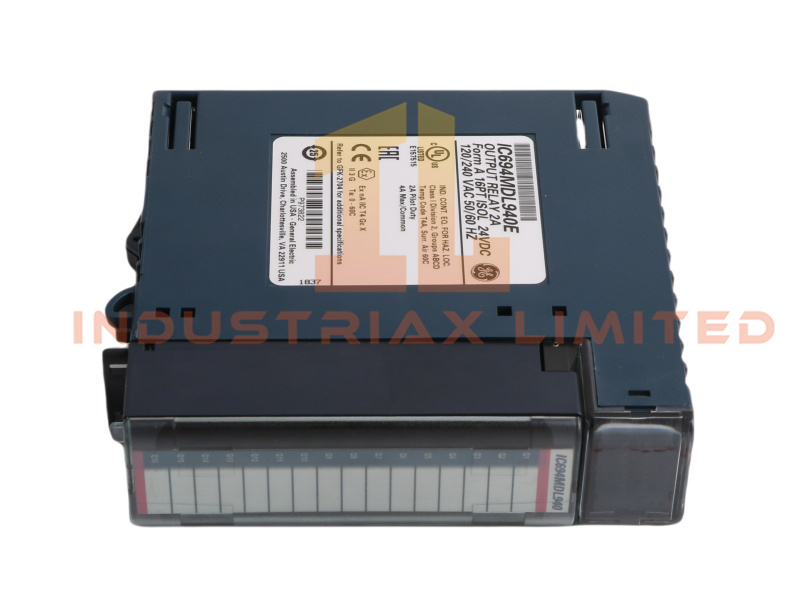

The IC694MDL940 Voltage Output Module from GE Fanuc provides precise relay control for industrial automation systems. Designed for the PACSystems™ RX3i platform, it features 16 output points arranged in four isolated groups of four.

Each group supports normally open (Form A) contacts and handles up to 2 Amps per channel. The IC694MDL940 includes 16 status LEDs for real-time diagnostics and operates on a 24V DC relay bus with robust electrical isolation.

Technical Specifications

Specification	Details
Model Number	IC694MDL940
Manufacturer	GE
Module Type	Voltage Output Module
Product Range	PACSystems™ RX3i
System Compatibility	PLC
Communication Service	Ethernet Router
Output Points	16 (4 groups of 4)
Contact Type	Normally Open (Form A)
Max Load per Channel	2 Amps
Max Load per Group	4 Amps
Minimum Load	10 mA
Inrush Current	5 Amps
Isolation Rating	250 VAC continuous, 1500 VAC for 1 min
Dimensions (H×W×D)	13 × 6.8 × 13.1 cm
Weight	0.52 kg
HS Code	8537101190
Minimum Order Quantity	1
Product Origin	USA
Condition	Brand New
Availability	In Stock
Discontinued Status	Active

Key Features

• Provides 16 relay outputs with Form A contact configuration.

• Supports 24V DC relay bus with low current draw.

• Includes 16 status LEDs for output monitoring.

• Offers strong isolation between field and backplane.

• Compact design fits any RX3i I/O slot.

Specifications

• Dimensions: 13 × 6.8 × 13.1 cm
• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
