Description

Product Description

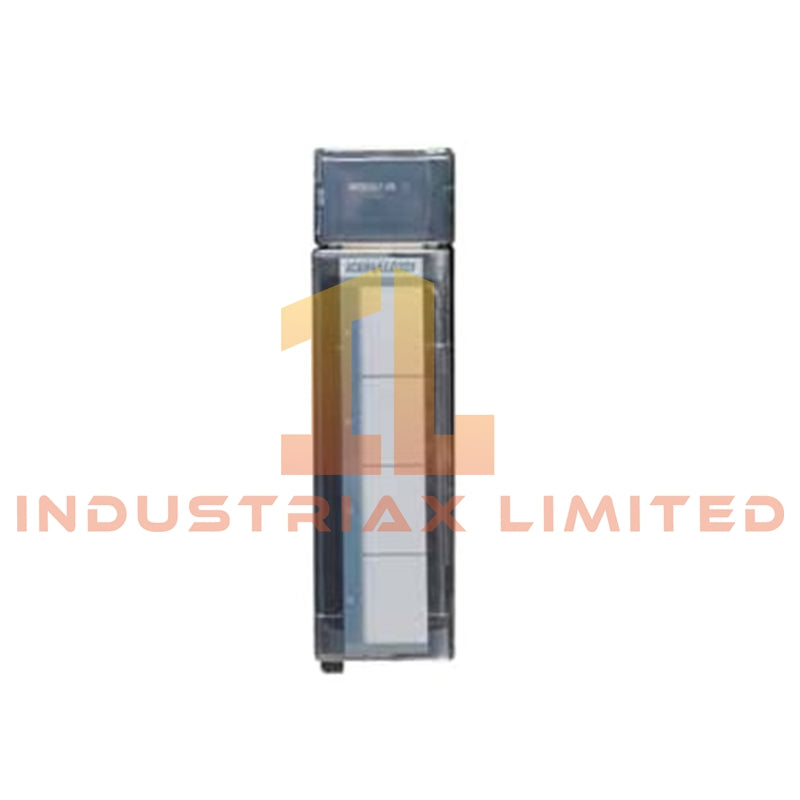

The IC694MDL752 is a high-density 32-point DC output module for the PACSystems RX3i series, designed for precise, high-speed discrete control applications. This negative-logic (sinking) module supports TTL 5 V loads for low-power electronics as well as 12/24 V industrial loads such as relays, solenoids, lamps, and valves.

The module organizes outputs into four isolated groups of eight points, each with its own common, allowing mixed-voltage operation on the same module. Optical isolation and internal pull-up resistors enhance noise immunity and signal reliability. Each point features an individual LED for real-time status indication.

Technical Specifications

Output Characteristics

• Number of Outputs: 32 points (4 groups × 8)

• Output Type: Negative logic (active-low, sinking)

• Voltage Range: TTL Mode 4.75–5.25 VDC; 12/24 V Mode 10.2–28.8 VDC

• Maximum Current per Point: TTL 25 mA; 12/24 V 0.5 A

• Maximum Current per Group: 4 A total; 3 A per common pin (two pins per group)

• Internal Pull-up Resistor: Yes, active in TTL mode

Isolation Ratings

• Field to Backplane: 250 VAC continuous; 1500 VAC for 1 minute (optical)

• Group to Group: 50 VAC continuous; 500 VAC for 1 minute

Power Requirements

• Backplane Power Draw: 260 mA @ 5 VDC max

• User Load Power: External 5 V, 12 V, or 24 V supply required depending on mode

Mechanical & Installation

• Dimensions: 34 × 145 × 140 mm

• Mounting: RX3i I/O slots, any position

• Terminal Blocks: Compatible with IC694TBB032 / IC694TBS032

• Status Indicators: 32 individual LEDs

Performance

• Maximum Response Time: 0.5 ms

• On-State Voltage Drop: TTL Mode 0.4 V max; 12/24 V Mode 0.24 V max

• Off-State Leakage Current: 0.1 mA max

Environmental Ratings

• Operating Temperature: 0 °C to 60 °C

Key Features

• 32-point negative logic DC output with four isolated groups

• Supports TTL (5 V) and 12/24 V industrial loads simultaneously

• Individual LEDs for each output point

• Optically isolated outputs for enhanced noise immunity

• Compact, high-density design for RX3i PLC racks

• Fast 0.5 ms response time for high-speed control applications

Applications

Ideal for discrete control of relays, solenoids, lamps, valves, and other mixed-voltage industrial devices in manufacturing, process automation, and distributed control systems.

FAQ

Q: Can this module drive mixed voltage loads simultaneously?
A: Yes, each group can be configured for TTL or 12/24 VDC independently.

Q: What is the maximum current per output?
A: TTL mode: 25 mA per point; 12/24 V mode: 0.5 A per point.

Q: Are the outputs isolated?
A: Yes, each group is optically isolated, and field-to-backplane isolation is rated 250 VAC continuous.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
