Description

Overview

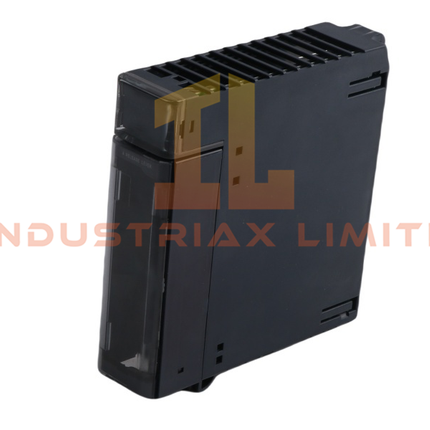

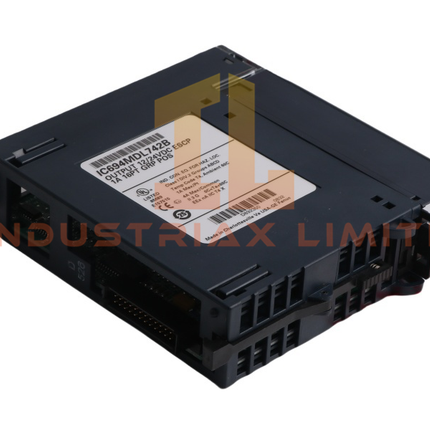

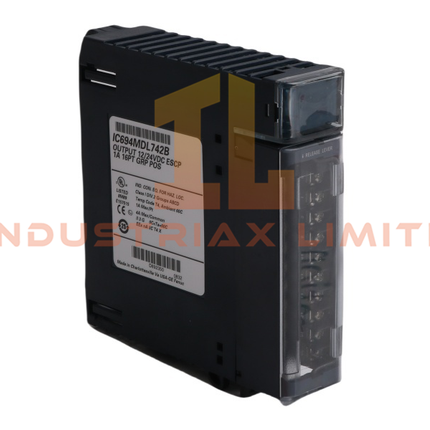

The IC694MDL742 Voltage Output Module from GE Fanuc delivers reliable DC signal output for industrial automation systems. Designed for the PACSystems™ RX3i platform, it features 16 output points split into two isolated groups of eight.

Each group operates with negative logic and includes short-circuit protection. The IC694MDL742 supports hot swapping, allowing users to install or replace the module without powering down the system. LED indicators on each channel simplify performance monitoring and fault detection.

Technical Specifications

Specification	Details
Model Number	IC694MDL742
Manufacturer	GE
Module Type	Voltage Output Module
Product Range	PACSystems™ RX3i
System Compatibility	PLC
Communication Service	Ethernet Router
Output Points	16 (2 groups of 8)
Logic Type	Negative
Voltage Range	12–24V DC (±15% to +20%)
Power Consumption	130 mA
Inrush Current	5.2 A for 10 ms
Dimensions (H×W×D)	3.5 × 13.2 × 13.5 cm
Weight	0.3 kg
HS Code	8537101190
Minimum Order Quantity	1
Product Origin	USA
Condition	Brand New
Availability	In Stock
Discontinued Status	Active

Key Features

• Provides 16 voltage outputs with built-in short-circuit protection.

• Supports hot swapping for uninterrupted system operation.

• LED indicators offer real-time channel status visibility.

• Operates within a wide DC voltage range for flexible deployment.

• Compact 3.5cm height fits standard RX3i rack slots.

Specifications

• Dimensions: 3.5 × 13.2 × 13.5 cm
• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
