Product Description

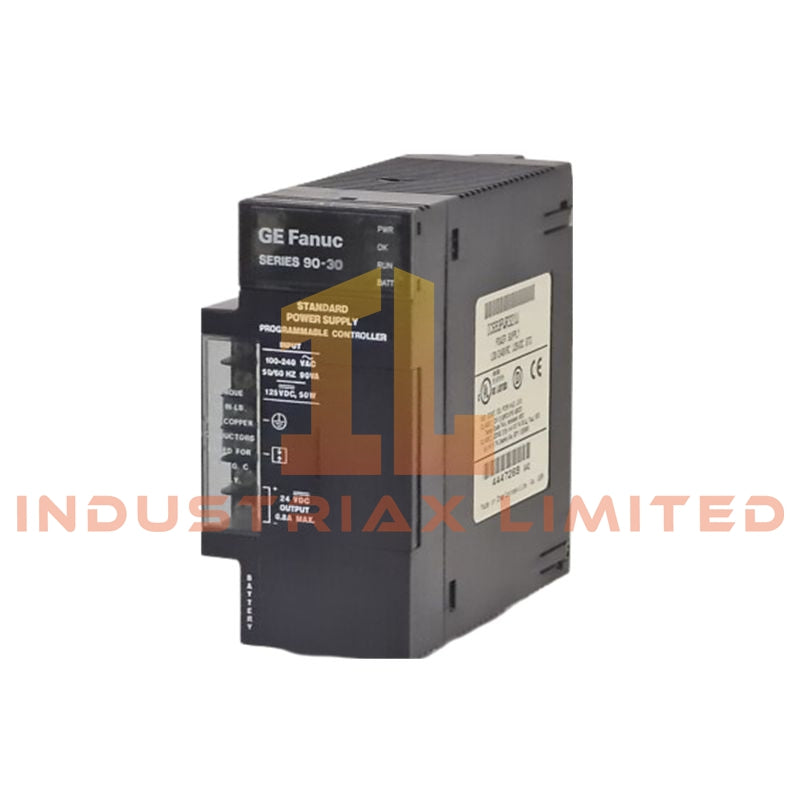

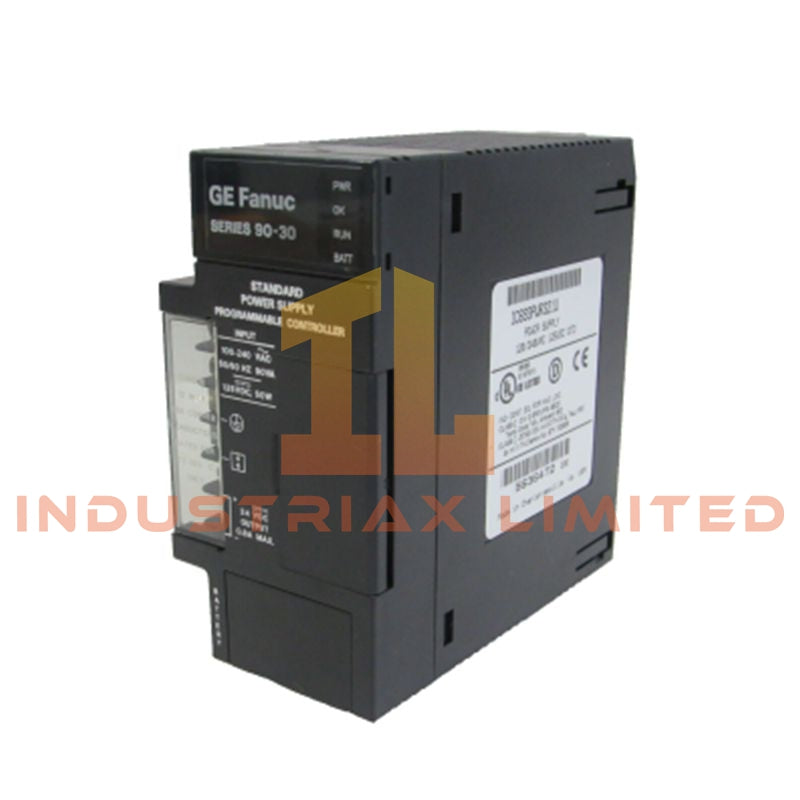

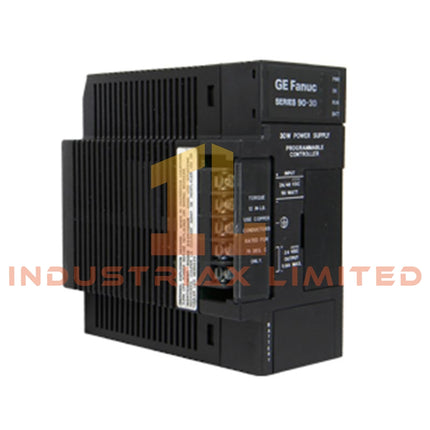

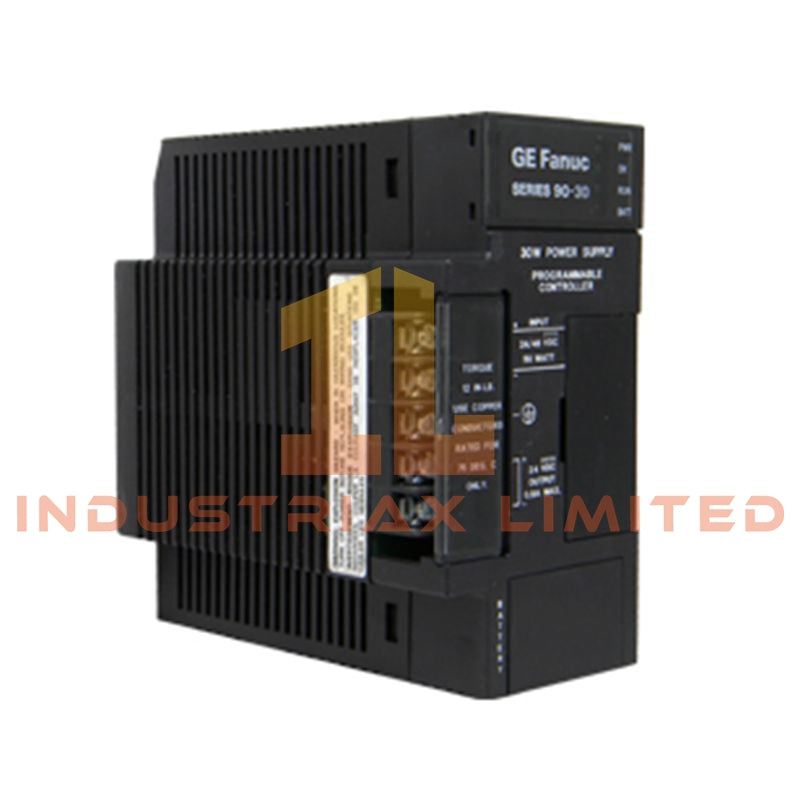

The IC693PWR324 by GE Fanuc is a 30‑Watt AC/DC power supply module designed for the Series 90‑30 PLC platform. It installs in the leftmost slot of the baseplate and delivers three regulated DC outputs to power CPUs, I/O modules, relay circuits, and internal electronics. With wide-range input compatibility, integrated protection features, and RS‑485 diagnostic support, this module ensures reliable PLC operation across diverse industrial environments.
Key Features
-
Wide-range input: 85–264 VAC (50/60 Hz) or 100–300 VDC
-
Three independent DC outputs: +5 VDC for logic, +24 VDC for relays, and isolated +24 VDC for internal circuits
-
Protection mechanisms: overvoltage, overcurrent, and short-circuit shutdown
-
Holdup time ≥20 ms at full load to maintain system stability
-
Detachable terminal block for simplified wiring
-
Status LEDs: PWR, OK, RUN, BATT for quick visual monitoring
-
RS‑485 communication for diagnostics and monitoring
-
Fanless operation with compact design
Technical Specifications
Input Characteristics
-
Nominal Input Voltage: 120/240 VAC or 125 VDC
-
Input Voltage Range: 85–264 VAC / 100–300 VDC
-
Input Power: 90 VA (AC) / 50 W (DC)
-
Peak Inrush Current: 4 A, 250 ms maximum
Output Specifications
| Output Channel |
Voltage Range |
Max Power |
Typical Use |
| +5 VDC |
5.0–5.2 VDC |
15 W |
CPU & logic circuits |
| +24 VDC (Relay) |
24–28 VDC |
15 W |
Relay modules |
| +24 VDC (Isolated) |
21.5–28 VDC |
20 W |
Input modules / internal circuits |
| Total Output Capacity |
— |
30 W |
Module rating |
Protection & Performance
-
Overvoltage: 5 VDC shuts down at 6.4–7 V
-
Overcurrent: 5 VDC limited to 4 A max
-
Short-Circuit: Automatic shutdown
-
Holdup Time: ≥20 ms at full load
Mechanical & Environmental
-
Mounting: Leftmost slot of Series 90‑30 baseplate
-
Operating Temperature: 0°C to 60°C
-
Humidity: 5–95% non-condensing
-
Dimensions: 3.6 × 13 × 13.5 cm
-
Weight: 0.86 lbs
Application Scenarios
-
Supplying power to Series 90‑30 CPUs, I/O modules, and relay circuits
-
Industrial automation systems requiring stable multi-rail DC outputs
-
Systems needing wide-range AC/DC input compatibility without additional power conversion
-
Applications where diagnostic monitoring via RS‑485 is essential
FAQ
Q: Can this module accept both AC and DC inputs simultaneously?
A: The module supports AC or DC input, but each installation should use only one type at a time.
Q: What protection features are included?
A: Overvoltage, overcurrent, and short-circuit protection automatically safeguard connected equipment.
Q: How does the module indicate operational status?
A: Four LEDs display power (PWR), system health (OK), run status (RUN), and battery/auxiliary power (BATT).
Q: Are there higher capacity alternatives for more demanding PLC loads?
A: Yes, the IC693PWR332 provides higher output power while maintaining multi-rail regulation and wide AC/DC input support.
