Description
Overview

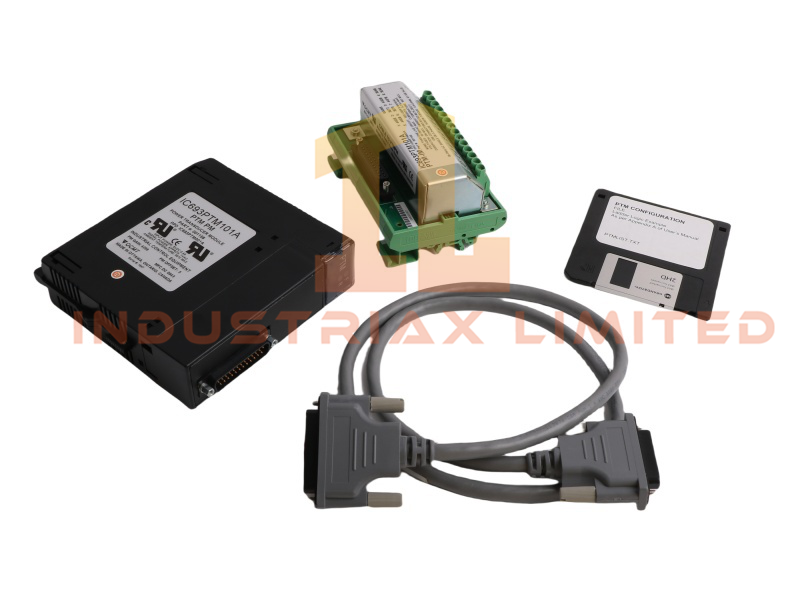

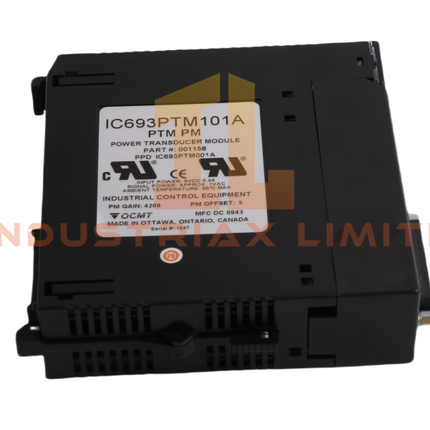

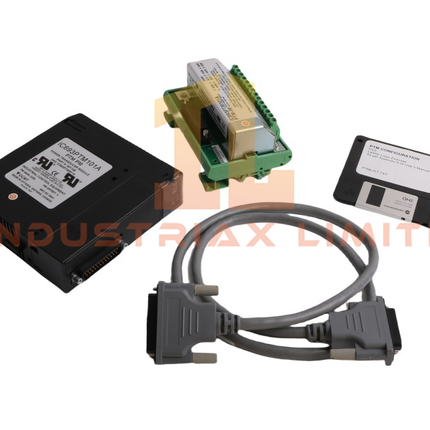

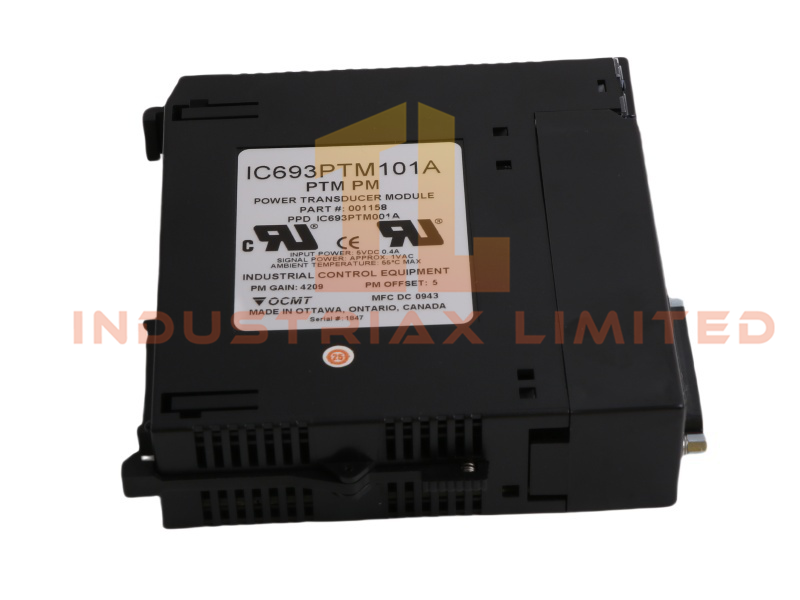

The IC693PTM101 power transducer module from GE Fanuc is designed for Series 90-30 PLC systems. It monitors electrical parameters across generators and grid connections, supporting single-phase, Wye, Delta, and synchro modes.
This compact module measures 3.5×13.2×13.5 cm and weighs 0.36 kg. The IC693PTM101 connects to current and potential transformers, delivering accurate RMS values and real-time diagnostics for industrial power systems.
Technical Specifications
| Specification |
Details |
| Model Number |
IC693PTM101 |
| Module Type |
Power Transducer Module |
| Manufacturer |
General Electric (GE) |
| Series |
Series 90-30 |
| System |
PLC |
| Dimensions |
3.5 × 13.2 × 13.5 cm |
| Weight |
0.36 kg |
| Voltage Range |
50–60 Hz |
| Monitoring Modes |
Single, 3-Phase, Synchro |
| Measured Values |
RMS Voltage/Current, Power, PF, Frequency, Energy |
| Demand Interval |
15 Minutes |
| Baseplate Support |
CPU, Expansion, Remote |
| Diagnostics |
Predictive Fault Monitoring |
| Communication |
Ethernet Router |
| HS Code |
8537101190 |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
| Status |
Active |
Features & Performance
-
The IC693PTM101 calculates power metrics with millisecond-level accuracy and low latency.
-
It supports generator synchronization and load shedding operations for energy optimization.
-
Predictive diagnostics offer real-time fault insights and performance reporting.
-
The module installs easily on any Series 90-30 baseplate, reducing wiring complexity.
Applications & Compatibility
The IC693PTM101 suits industrial automation tasks involving power monitoring, grid synchronization, and energy management. It integrates with GE Fanuc Series 90-30 CPUs and supports flexible installation across various baseplate types.

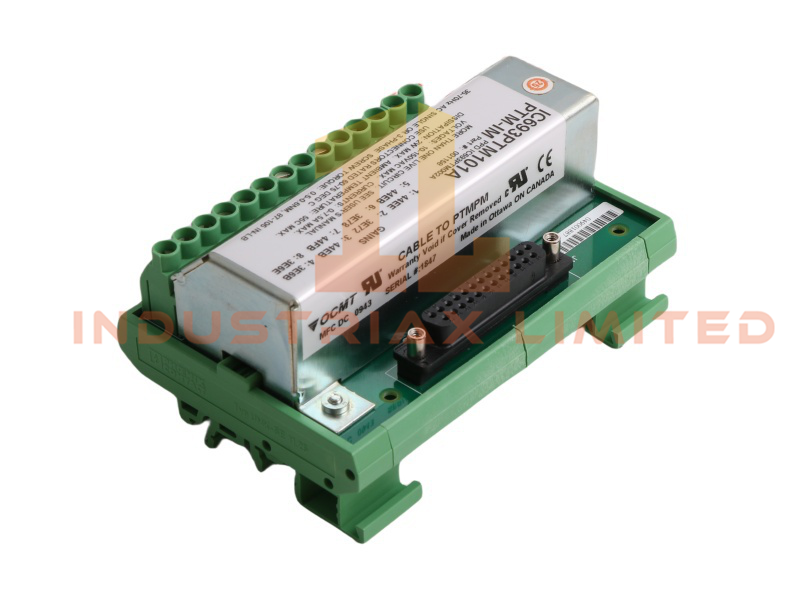

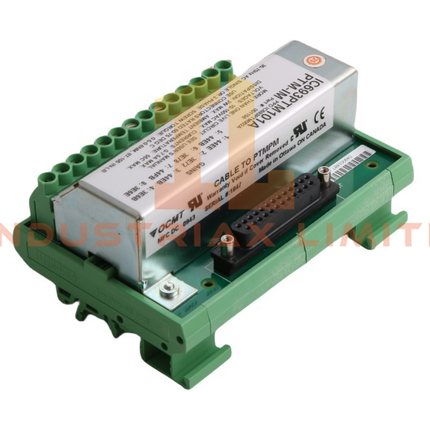

Compatible with current and potential transformers, the IC693PTM101 enhances visibility and control in electrical distribution systems.
