Product Description

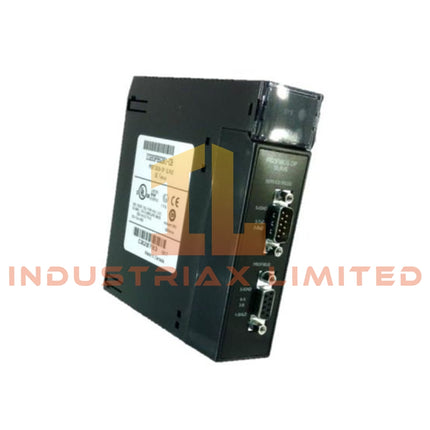

The IC693PBM200 (GE Fanuc Series 90‑30) is a PROFIBUS‑DP Master communication module engineered to expand PLC connectivity in industrial networks. It allows the Series 90‑30 PLC to act as a PROFIBUS master, facilitating high-speed cyclic data exchange with distributed I/O, sensors, drives, and DP-compliant devices.

Equipped with a primary RS‑485 PROFIBUS port and a dedicated RS‑232 service port, the module supports configuration, firmware updates, and extensive network diagnostics. It accommodates up to 125 DP slave devices with 244 bytes of input and output per device, making it suitable for medium- to large-scale automation systems requiring deterministic fieldbus performance.

Technical Specifications

General Information

• Model: IC693PBM200

• Manufacturer: GE Fanuc / Emerson

• Product Type: PROFIBUS‑DP Master Module

• Compatible PLC: Series 90‑30

• Mounting: Any Series 90‑30 baseplate slot except CPU slot 1

• Weight: 0.41 lbs

Communication Features

• PROFIBUS‑DP Master via RS‑485

• RS‑232 service port for configuration and firmware updates

• Supports up to 125 DP slave devices

• Data per slave: 244 bytes input, 244 bytes output

• Supported baud rates: 9.6k, 19.2k, 93.75k, 187.5k, 500k, 1.5M, 3M, 6M, 12M

• Sync and Freeze PROFIBUS modes supported

• COM and SYS LEDs indicate PROFIBUS status

Electrical Specifications

• Power: PLC backplane, no external supply required

• Current consumption: 450 mA @ 5 VDC typical

Environmental Ratings

• Operating temperature: 0 °C to 60 °C

• Recommended climate control for extreme conditions

Software & CPU Requirements

• Programming: Logic Developer PLC v3.0 or higher

• CPU firmware: Release 8.00+ (10.60+ recommended for large networks)

Diagnostics & Features

• Slave status bit array

• Network and DP master diagnostic counters

• Slave diagnostic address reporting

• Clear mode when PLC is not scanning I/O

Applications

Ideal for connecting Series 90‑30 PLCs to PROFIBUS‑DP networks in factories, processing plants, or automated assembly lines. Supports deterministic communication for drives, actuators, sensors, and distributed I/O modules.

FAQ

Q: How many PROFIBUS slave devices can this module handle?
A: Up to 125 DP slave devices with 244 bytes input/output per device.

Q: Is an external power supply required?
A: No, the module draws power directly from the PLC backplane.

Q: Which programming software is required?
A: Logic Developer PLC version 3.0 or higher.

Q: Can it operate at the full PROFIBUS baud rate of 12 Mbps?
A: Yes, it supports all standard PROFIBUS rates up to 12 Mbps.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
