Description
Product Description

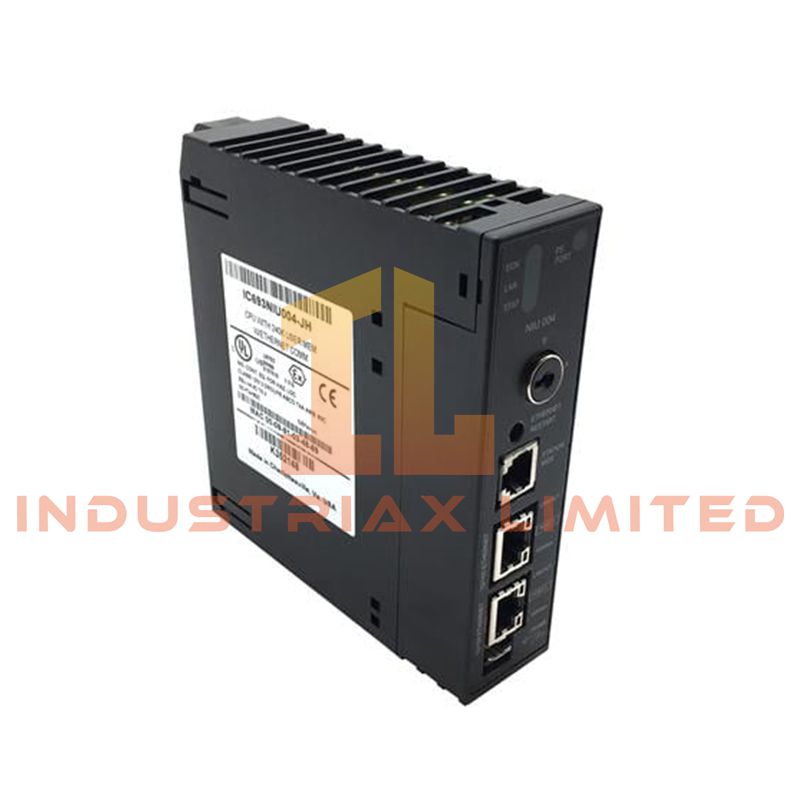

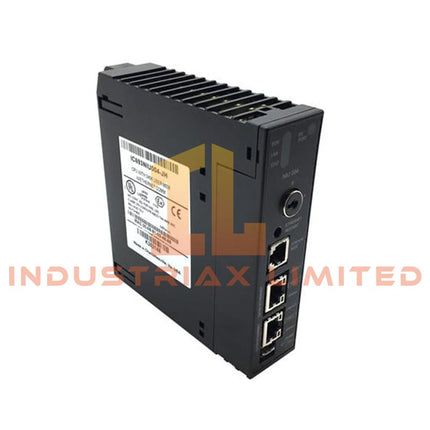

The IC693NIU004 is a high-performance Ethernet Network Interface Unit (NIU) designed for the GE Fanuc Series 90‑30 PLC family. It functions as an Ethernet Global Data (EGD) station, enabling fast, reliable data transfer between PLCs and remote I/O modules over standard Ethernet networks. Equipped with multiple Ethernet ports, built-in diagnostics, and support for key industrial protocols, the module allows flexible integration into distributed control and automation systems.
Key Features
-
Functions as an EGD station for high-speed PLC-to-I/O communication
-
Supports remote I/O expansion and acts as the head of distributed I/O racks
-
Two to three RJ‑45 Ethernet ports (10/100 Mbps, auto-sensing) depending on revision
-
RS‑232 Station Manager port for diagnostics and configuration
-
Eight front-panel LEDs provide status for power, Ethernet link/activity, and module health
-
Ethernet Restart pushbutton for LED testing and interface reboot
-
Supports SRTP, EGD, TCP/IP, UDP/IP, Modbus TCP/IP protocols (revision-dependent)
-
Single-slot installation, powered directly from the Series 90‑30 backplane
Technical Specifications
Communication Interfaces
-
Ethernet Ports: 2–3 RJ‑45 (10/100 Mbps, auto-sensing)
-
Protocol Support: SRTP, EGD, TCP/IP, UDP/IP, Modbus TCP/IP
-
RS‑232: RJ‑11 Station Manager port
Memory & Capacity
-
Discrete Inputs (%I): Up to 2048 points
-
Discrete Outputs (%Q): Up to 2048 points
-
Analog Inputs (%AI): Up to 1268 words
-
Analog Outputs (%AQ): Up to 512 words
-
Internal Coils (%M): 4096 bits (fixed)
-
Temporary Coils (%T): 256 bits
Power & Installation
-
Power Source: Supplied via Series 90‑30 backplane
-
Logic Engine Consumption: ~7.4 W
-
Slot Requirement: Single slot, typically installed in slot 1
Mechanical & Environmental
-
Dimensions: 210 × 188 × 262 mm (varies slightly by revision)
-
Weight: 1.76 lbs
-
Environment: Industrial-grade, suitable for harsh conditions
Application Scenarios
-
High-speed distributed I/O systems in large industrial facilities
-
Machine automation requiring Ethernet Global Data communication
-
Process control systems with remote monitoring and data acquisition
-
SCADA integration for geographically dispersed assets
FAQ
Q: How many Ethernet ports does the IC693NIU004 provide?
A: Depending on the revision, the module has two or three RJ‑45 Ethernet ports supporting 10/100 Mbps auto-sensing.
Q: What protocols are supported?
A: Supported protocols include SRTP, EGD, TCP/IP, UDP/IP, and Modbus TCP/IP (revision-dependent).
Q: Can it act as the head of a remote I/O rack?
A: Yes, it supports remote I/O expansion and functions as the primary station for distributed I/O.
Q: What is the memory capacity?
A: Discrete inputs up to 2048 points, discrete outputs up to 2048 points, analog inputs up to 1268 words, analog outputs up to 512 words.
