Description

Product Description

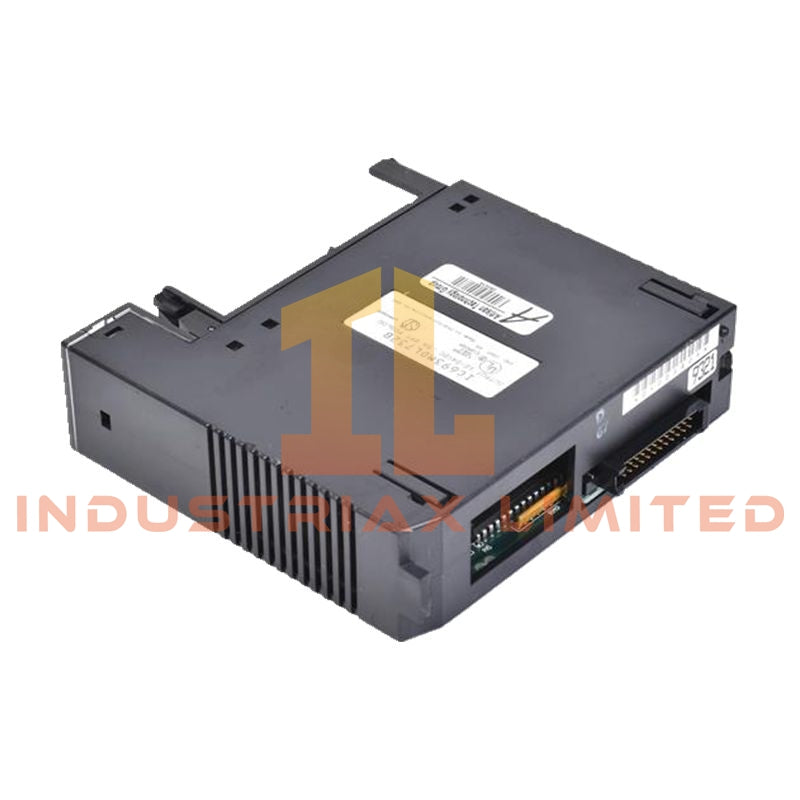

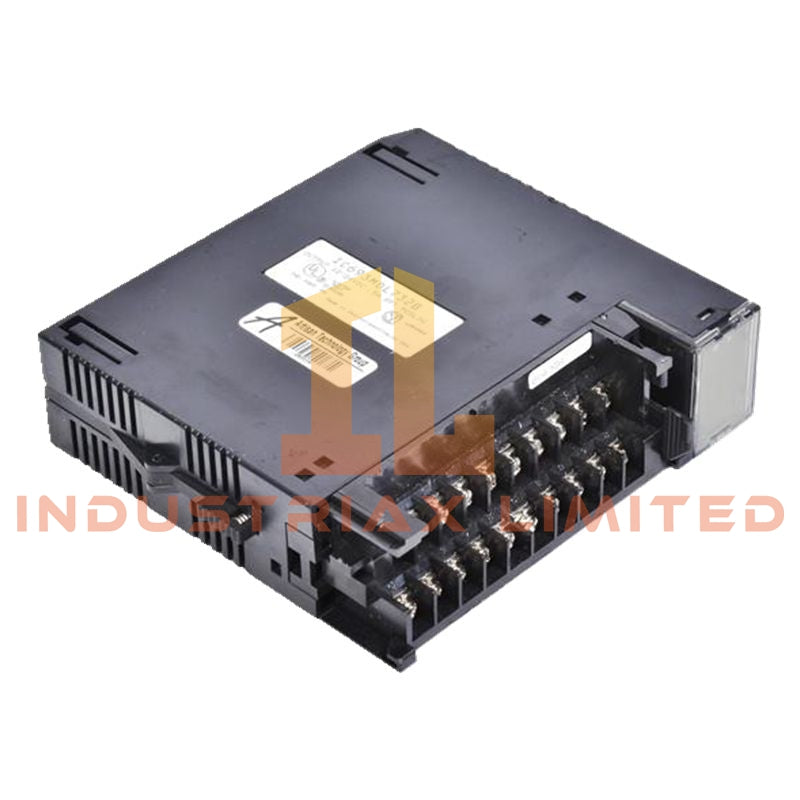

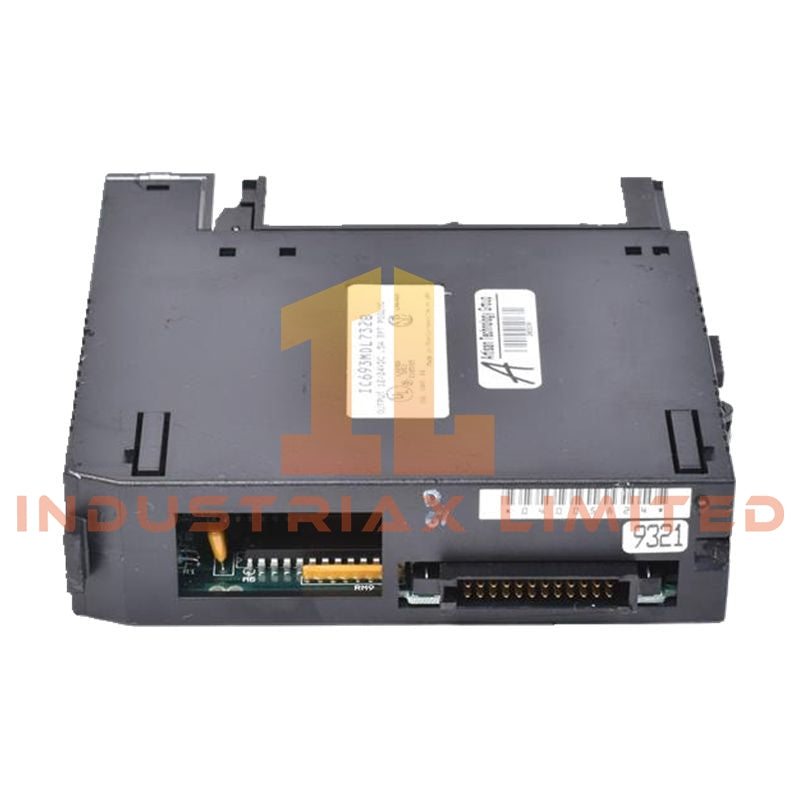

The IC693MDL732 is a DC output module for the GE Fanuc Series 90‑30 PLC family, providing 8 discrete positive logic outputs in a single module. It is designed for sourcing current to field devices, enabling reliable operation of relays, solenoids, lamps, indicators, and motor starters.

Each output point is equipped with a dedicated LED status indicator, offering clear visual feedback. The module features full optical isolation between the logic circuitry and field side, ensuring robust noise immunity and protecting both the PLC and connected devices. Its compact design allows installation in any standard Series 90‑30 baseplate slot.

Key Features

• 8 positive logic (sourcing) DC outputs with a shared common terminal

• Supports 12–24 VDC loads with 0.5 A per point and 2 A per common terminal

• Inrush handling: 4.78 A for 10 ms

• Full optical isolation (1.5 kV) between field and logic sides

• Dedicated green LED indicators for each output point

• Fast switching response: ≤ 2 ms on/off

• Compact single-slot design for Series 90‑30 baseplates

• Blue low-voltage label for easy identification

Technical Specifications

Electrical

• Rated Voltage: 12/24 VDC

• Output Voltage Range: 12–24 VDC (+20%, –15%)

• Outputs: 8 discrete points (one group)

• Maximum Output Current: 0.5 A per point, 2 A per common

• Inrush Current: 4.78 A (10 ms)

• Voltage Drop: ≤ 1 V

• Off-State Leakage: ≤ 1 mA

• Response Time: ≤ 2 ms (on/off)

• Isolation: 1.5 kV between field and logic

Indicators

• 8 green LEDs for individual output status

• Arranged in two rows labeled A1–A8 and B1–B8

Mechanical

• Dimensions: 150 × 100 × 70 mm

• Weight: 1.7 lbs

• Country of Origin: USA

• Terminal Block: Removable for easy field wiring

Environmental

• Operating Temperature: 0–60 °C

• Storage Temperature: –40–85 °C

• Humidity: 5–95% non-condensing

• Vibration: 5–2000 Hz @ 1 g

Installation & Compatibility

• Fits any I/O slot on 5‑slot or 10‑slot Series 90‑30 baseplates

• No onboard fuses required

• Blue-coded low-voltage identification

• Compatible with GE Fanuc Series 90‑30 PLCs

Applications

• Factory automation and process control

• Material handling and conveyor systems

• Water treatment control systems

• Oil & gas wellhead automation

• Auxiliary control of DC relays, solenoids, lamps, and motor starters

FAQ

Q: Can IC693MDL732 handle inductive loads like solenoids?
A: Yes, it supports DC solenoids, relays, and motor starters with inrush up to 4.78 A for 10 ms.

Q: Does the module require external fuses?
A: No, the module is designed to operate safely without external fuses, relying on its internal protection and isolation.

Q: How is output status monitored?
A: Each output has a dedicated green LED that displays real-time ON/OFF status for clear diagnostics.

Q: What is the response time for switching?
A: Both ON and OFF switching times are ≤ 2 ms, ensuring fast and precise control of field devices.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
