Description
Product Description

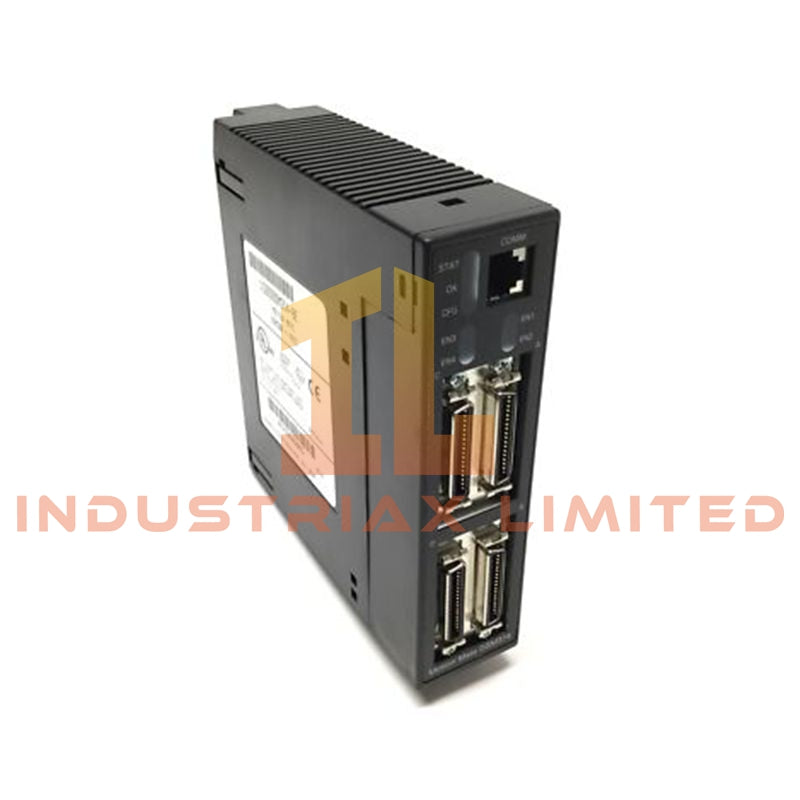

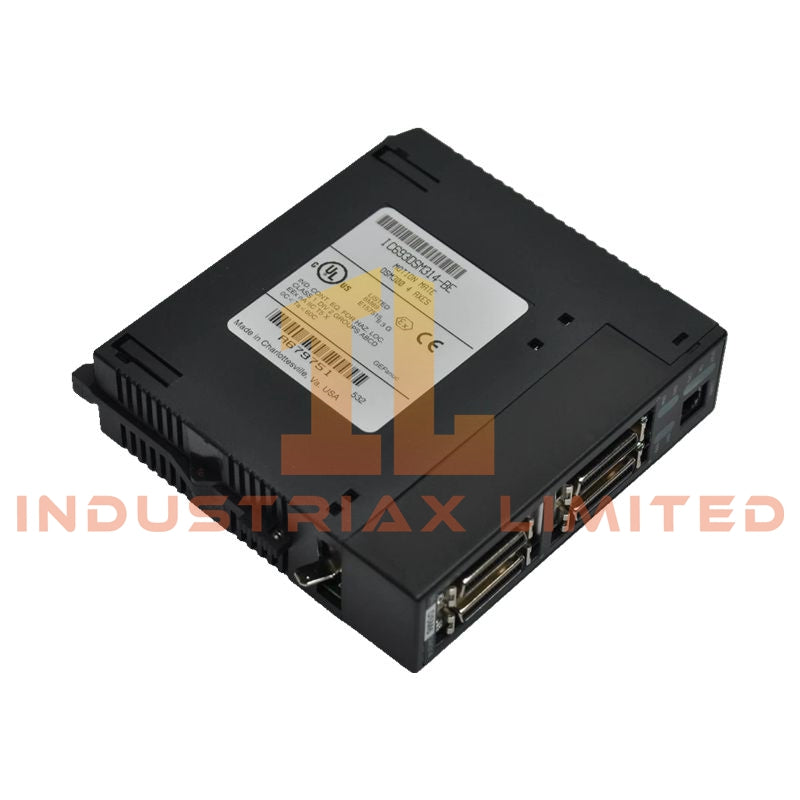

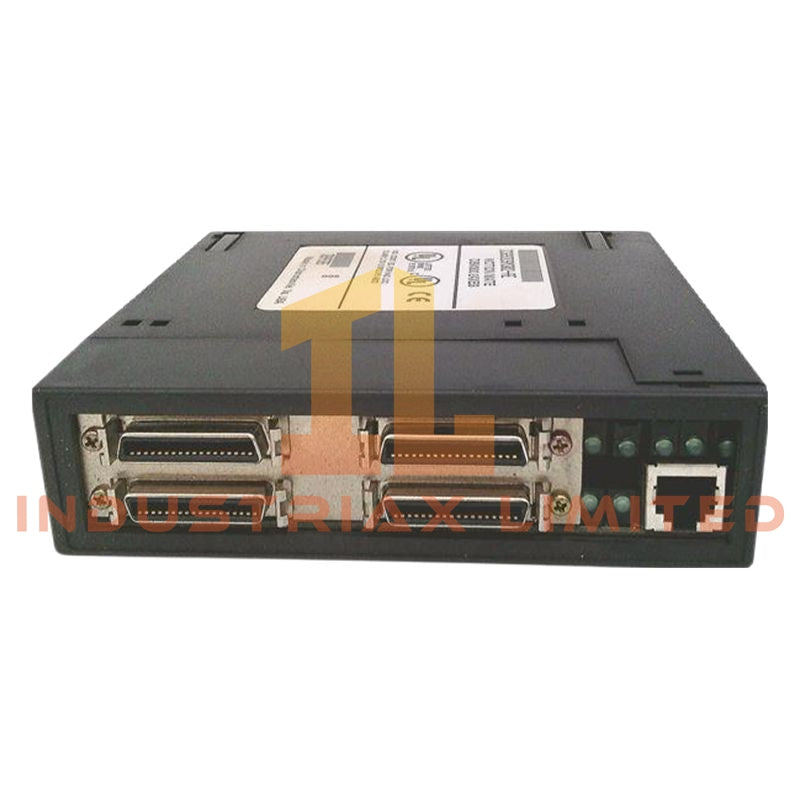

The IC693DSM324 is a dual-axis motion control module designed for GE Fanuc Series 90-30 PLC systems. Engineered for precise control of stepper motors and servo drives, this module delivers reliable positioning, speed regulation, and acceleration management for complex motion applications.
With support for two independent motion axes, the IC693DSM324 provides closed-loop control using encoder feedback, ensuring high accuracy in automated machinery. Pulse and direction outputs allow direct interfacing with standard motor drivers, while flexible integration accommodates a wide range of servo and stepper motors.
This module features robust design and industrial-grade components, ensuring dependable operation under demanding environmental conditions. Its single-slot form factor fits standard Series 90-30 racks, simplifying system expansion or replacement.
Technical Specifications
| Feature |
Specification |
| Model |
IC693DSM324 |
| Manufacturer |
GE Fanuc / Emerson |
| Series |
Series 90-30 PLC |
| Module Type |
Motion Control Module (DSM) |
| Motion Axes |
2 independent axes |
| Supported Motors |
Stepper and servo drives |
| Control Functions |
Position, velocity, acceleration, deceleration, homing |
| Feedback |
Encoder input for closed-loop operation |
| Output Signals |
Pulse and direction outputs |
| Compatible CPUs |
CPU 350, 352, 360, 363, 364, 374 |
| Max Modules per System |
20 (Series 90-30), 32 (PACSystems RX3i) |
| Backplane Voltage |
5 VDC |
| Power Consumption |
860 mA without encoder supply; 500 mA encoder supply |
| Slot Requirement |
Single-slot module |
| Mounting |
Main rack or expansion/remote baseplate |
| LEDs |
Status, OK, Config, FSSB, Axis 1–4 indicators |
| Communication Ports |
24 VDC I/O: 36-pin D-shell, 5 VDC I/O: 36-pin D-shell, RJ45 FSSB port |
| Operating Temperature |
0°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Weight |
0.62 lbs |
Key Features & Benefits
Dual-Axis Control: Simultaneously manages two motors for coordinated motion.
High Precision: Encoder-based feedback ensures accurate position and velocity control.
Flexible Integration: Supports a wide range of stepper and servo motors.
Expandable Architecture: Multiple DSM324 modules can be installed per system for larger applications.
Industrial Reliability: Designed for continuous operation under typical factory conditions.
Applications
-
Robotics and automated assembly lines
-
CNC machinery and tool positioning
-
Packaging and material handling equipment
-
Motion-intensive process control systems
FAQ
Q: Can IC693DSM324 control more than two axes?
A: Each module supports two axes. For additional axes, multiple modules can be installed per system.
Q: Is it compatible with PACSystems RX3i PLCs?
A: Yes, up to five DSM324i modules can be installed per RX3i main rack, with additional modules supported in expansion racks.
Q: What types of motors can it control?
A: Both stepper motors and servo drives are supported with pulse and direction output signals.
Q: What is the maximum module capacity per Series 90-30 PLC system?
A: Up to 20 DSM324 modules can be installed per system.
